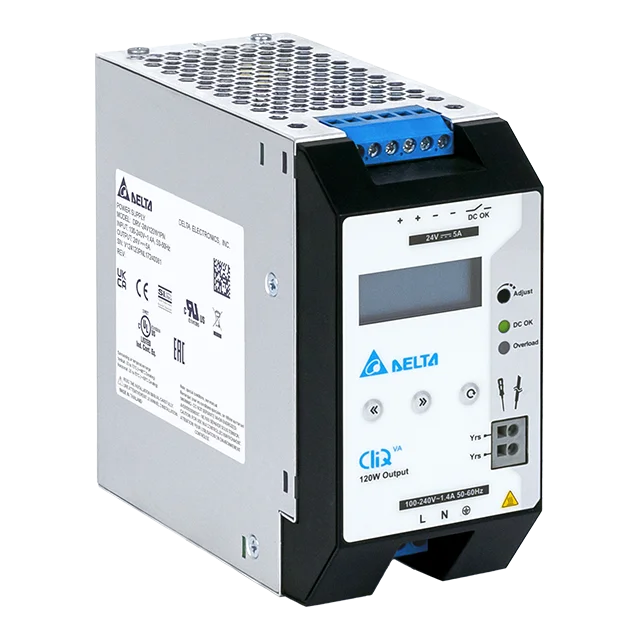

Delta DRV-24V120W1PN 24V 120W 5A 导轨型电源 CliQ VA Series

资源下载

Datasheet

Uploaded on 14-Dec-2021

Manual

Uploaded on 24-Dec-2020


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 24-Dec-2020

EAC

Uploaded on 24-Dec-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 24-Dec-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 14-Dec-2021

Uploaded on 24-Dec-2020

GUI Software

Tech Specs

输出电流

输出电压

24V

输出电压调整范围

24-28Vdc

输出功率

120W

线电压调整率

20mV Max. (@ 85-264Vac input, 100% load)

负载调整率

100mV Max. (@ 85-264Vac input, 0-100% load)

纹波电压

50mVpp Max.

开机时间

750ms Max. @ 100Vac & 120Vac & 230Vac

保持时间

70ms Typ. @ 100Vac & 120Vac & 230Vac (100% load)

动态回应

± 5% @ 0-100% load
Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)

电容性负载启动

10,000µF Max.

升压时间

20ms Max. @ 100Vac & 120Vac & 230Vac (0µF, 24V, 5A)
50ms Max. @ 100Vac & 120Vac & 230Vac (5,000µF, 24V, 5A)

峰值功率持续时间

5 seconds Typ.
7 seconds Max.

峰值功率回复时间

14 seconds Typ.

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

110-300Vdc

直流输入电压范围

88-375Vdc

输入电流

1.34A Typ. @ 100Vac, 1.11A Typ. @ 120Vac, 0.61A Typ. @ 230Vac

100% 负载效率

89.67% Typ. @ 100Vac, 90.62% Typ. @ 120Vac, 91.42% Typ. @ 230Vac

涌入电流

15.0A Max. @ 100Vac & 120Vac & 230Vac

功率因数

0.99 Typ. @ 100Vac, 0.99 Typ. @ 120Vac, 0.93 Typ. @ 230Vac

漏电流

(Enclosure to Neutral)
< 0.18mA / 0.46mA @ 110Vac, 50Hz, TN/TT system / IT system
< 0.22mA / 0.54mA @ 132Vac, 50Hz, TN/TT system / IT system
< 0.45mA / 1.08mA @ 264Vac, 50Hz, TN/TT system / IT system

功率损耗

0% load:
3.70W Typ. @ 100Vac, 3.36W Typ. @ 120Vac, 2.70W Typ. @ 230Vac
3.80W Max. @ 100Vac, 3.90W Max. @ 120Vac, 4.30W Max. @ 230Vac

100% load:
13.85W Typ. @ 100Vac, 12.45W Typ. @ 120Vac, 11.27W Typ. @ 230Vac
14.00W Max. @ 100Vac, 12.90W Max. @ 120Vac, 11.60W Max. @ 230Vac

底座 / 外壳上盖 Aluminium and Plastic / Aluminium
指示灯 Green LED (DC OK) and Red LED (Overload)
冷却方式 Convection
输入端 3 Pins (Rated 600V/35A)
输出端 6 Pins (Rated 300V/28A)
信号端 2 Pins (Rated 300V/10A)
声压级（SPL） < 25dBA
输入/输出端 -
信号 -
安装导轨 Standard TS35 DIN Rail in accordance with EN 60715
电线 Input: AWG 18-8 Output: AWG: 18-12 Signal: AWG 20-16
保护结构 -
端子台 -
重量 0.75 kg (1.65 lb)	尺寸 124 x 60 x 139 mm 4.88” x 2.36” x 5.47”

运行温度

-25°C to +70°C

储存温度

-40°C to +85°C

功率降级

Vertical Mounting: > 60°C de-rate power by 2.5% / °C
Horizontal Mounting: > 50°C de-rate power by 2.5% / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total

振动测试（非运行状态）

IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

碰撞试验（运行状态）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

过压类别

III
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)

过压保护

28.8 – 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超负载/过电保护

> 150% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)

过热保护

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防护等级

IP20

防震保护

Class I with Primary Earth connection

MTBF

1,444,000 hrs. (I/P: 100Vac, O/P: 24V, 5A, Ta: 25°C)
801,000 hrs. (I/P: 100Vac, O/P: 24V, 5A, Ta: 40°C)

预计最长使用寿命

131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 5A, Ta: 25°C)
92,230 hrs. @ 100Vac (O/P: 24V, 5A, Ta: 40°C)
98,540 hrs. @ 230Vac (O/P: 24V, 5A, Ta: 40°C)
131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 2.5A, Ta: 40°C)

电气安全

SIQ Bauart: EN 62368-1, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 61010-1, IEC 61010-2-201
UKCA: IEC 62368-1, IEC 61010-1, IEC 61010-2-201

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input / Output: 3.0 KVac
Input / PE: 2.0 KVac
Input / DC OK relay contact: 3.0 KVac (Recommend to connect DC OK pins together with output pins)
Output / PE: 1.5 KVac
Output / DC OK relay contact: 0.5 KVac
DC OK relay contact / PE: 1.5 KVac

工业控制设备

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

机器电气设备

EN/BS EN 60204-1 (over voltage category III)

用於电率安装的电气设备

IEC/EN/BS EN 62477-1 / IEC 62103

安全特低电压

SELV (IEC 60950-1)

隔离电阻

> 5 MOhm (Input to Output, 500 Vdc)

PE 电阻

< 0.1 Ohm

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3 CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

抗扰度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3

通用用途之部件供电

EN/BS EN 61204-3
