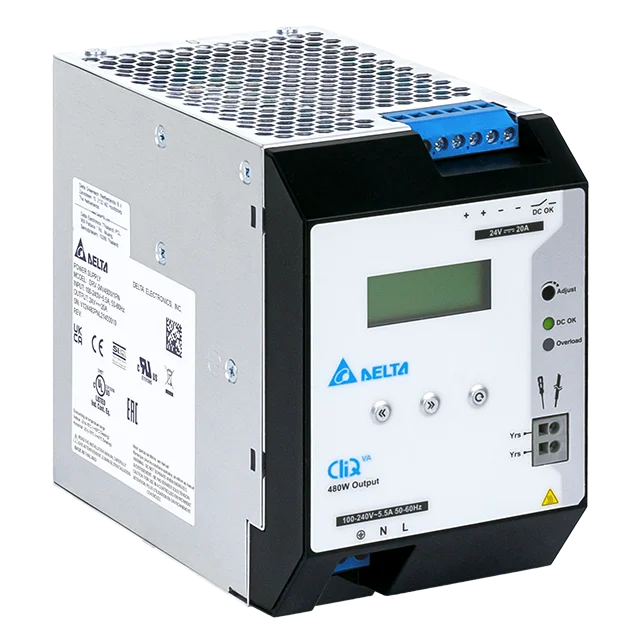

Delta DRV-24V480W1PN 24V 480W 20A 导轨型电源 CliQ VA Series

资源下载

Datasheet

Uploaded on 14-Dec-2021

Manual

Uploaded on 15-Jan-2021


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 15-Jan-2021

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 15-Jan-2021

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 14-Dec-2021

Uploaded on 15-Jan-2021

GUI Software

Tech Specs

输出电流

20A

输出电压

24V

输出电压调整范围

24-28Vdc

输出功率

480W

线电压调整率

10mV Max. (@ 85-276Vac input, 100% load)

负载调整率

100mV Max. (@ 85-276Vac input, 0-100% load)

纹波电压

100mVpp Max.

开机时间

1000ms Max. @ 100Vac & 120Vac & 230Vac

保持时间

43ms Typ. @ 100Vac & 120Vac & 230Vac (100% load)

动态回应

± 5% @ 0-100% load
Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)

电容性负载启动

20,000µF Max.

升压时间

100ms Max. @ 100Vac & 120Vac & 230Vac (0µF, 24V, 20A)
100ms Max. @ 100Vac & 120Vac & 230Vac (20,000µF, 24V, 20A)

峰值功率持续时间

5 seconds Typ.
7 seconds Max.

峰值功率回复时间

17 seconds Typ.

额定输入电压

100-240Vac

输入电压范围

85-276Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

110-300Vdc

直流输入电压范围

Vertical Mounting: 88-375Vdc
Horizontal Mounting: 100-375Vdc

输入电流

5.11A Typ. @ 100Vac, 4.24A Typ. @ 120Vac, 2.29A Typ. @ 230Vac

100% 负载效率

93.37% Typ. @ 100Vac, 93.83% Typ. @ 120Vac, 94.17% Typ. @ 230Vac

涌入电流

13A Max. @ 100Vac & 120Vac & 230Vac

功率因数

0.99 Typ. @ 100Vac, 0.99 Typ. @ 120Vac, 0.95 Typ. @ 230Vac

漏电流

(Enclosure to Neutral)
< 0.31mA / 0.77mA @ 110Vac, 50Hz, TN/TT system / IT system
< 0.45mA / 1.13mA @ 132Vac, 50Hz, TN/TT system / IT system
< 0.80mA / 2.00mA @ 264Vac, 50Hz, TN/TT system / IT system

功率损耗

0% load:
5.29W Typ. @ 100Vac, 4.75W Typ. @ 120Vac, 2.84W Typ. @ 230Vac
9.20W Max. @ 100Vac, 9.40W Max. @ 120Vac, 10.20W Max. @ 230Vac

100% load:
34.08W Typ. @ 100Vac, 31.58W Typ. @ 120Vac, 29.70W Typ. @ 230Vac
46.00W Max. @ 100Vac, 40.60W Max. @ 120Vac, 34.00W Max. @ 230Vac

底座 / 外壳上盖 Aluminium and Plastic / Aluminium
指示灯 Green LED (DC OK) and Red LED (Overload)
冷却方式 Convection
输入端 3 Pins (Rated 600V/35A)
输出端 6 Pins (Rated 600V/35A)
信号端 2 Pins (Rated 300V/10A)
声压级（SPL） < 25dBA
输入/输出端 -
信号 -
安装导轨 Standard TS35 DIN Rail in accordance with EN 60715
电线 Input: AWG 18-8 Output: AWG: 14-12 (Ensure that all output terminals are connected) Signal: AWG 20-16
保护结构 -
端子台 -
重量 1.45 kg (3.20 lb)	尺寸 124 x 82 x 149 mm 4.88” x 3.23” x 5.87”

运行温度

-25°C to +70°C

储存温度

-40°C to +85°C

功率降级

Vertical Mounting: > 60°C de-rate power by 2.5% / °C
Horizontal Mounting: > 40°C de-rate power by 2.5% / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total

振动测试（非运行状态）

IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

碰撞试验（运行状态）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

过压类别

III
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)

过压保护

28.8 – 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超负载/过电保护

> 150% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)

过热保护

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防护等级

IP20

防震保护

Class I with Primary Earth connection

MTBF

751,000 hrs. (I/P: 100Vac, O/P: 24V, 20A, Ta: 25°C)
424,800 hrs. (I/P: 100Vac, O/P: 24V, 20A, Ta: 40°C)

预计最长使用寿命

131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 20A, Ta: 25°C)
96,500 hrs. @ 100Vac (O/P: 24V, 20A, Ta: 40°C)
114,100 hrs. @ 230Vac (O/P: 24V, 20A, Ta: 40°C)
131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 10A, Ta: 40°C)

电气安全

SIQ Bauart: EN 62368-1, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 61010-1, IEC 61010-2-201
UKCA: IEC 62368-1, IEC 61010-1, IEC 61010-2-201

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input / Output: 3.0 KVac
Input / PE: 2.0 KVac
Input / DC OK relay contact: 3.0 KVac (Recommend to connect DC OK pins together with output pins)
Output / PE: 1.5 KVac
Output / DC OK relay contact: 0.5 KVac
DC OK relay contact / PE: 1.5 KVac

工业控制设备

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

机器电气设备

EN/BS EN 60204-1 (over voltage category III)

用於电率安装的电气设备

IEC/EN/BS EN 62477-1 / IEC 62103

安全特低电压

SELV (IEC 60950-1)

隔离电阻

> 5 MOhm (Input to Output, 500 Vdc)

PE 电阻

< 0.1 Ohm

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3 CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

抗扰度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3

通用用途之部件供电

EN/BS EN 61204-3
