CliQ II 3-Phase DIN Rail Power Supply Now Available with 240W Output Power




Delta Electronics extends the 3-phase models for its CliQ II DIN Rail Power Supply series with a 240W product offering 24V output voltage. The DRP024V240W3BA is encased in a sturdy and non-corrosive full aluminium body that can withstand shock (30G) and vibration (3G) according to IEC 60068-2 standard and operates over a wide temperature range from -25°C to +75°C.

The excellent design enables operation over a wide input range with 3-phase at 320Vac to 600Vac or 2-phase at 360Vac to 600Vac, with no power de-rating throughout the entire range. The 150% Power Boost duration has now increased to 5 seconds as compared to 3 seconds with the first generation of CliQ. Like the rest of the models in the CliQ family, conformal coating is applied on the PCBAs to protect against dust and chemical pollutants. Hazardous Locations approval to ATEX and Class I, Div 2 are available as options as well.

AVAILABLE FOR SHIPMENT FROM JUNE 2013 ONWARDS.

New models are introduced on a regular basis. For more information or enquiries, please do not hesitate to contact your local Delta Electronics distributor or visit www.DeltaPSU.com.

相关信息

新版台达标准电源供应器产品型录及宣传折页(2018年10月版)正式发布

台达2018年10月版标准电源供应器产品型录及宣传折页已上架。新版型录将所有工业,医用及LED电源供应器收集在册,包含12个新产品系列,5个工业产品系列,4个医用产品系列,以及2个 ...

点击了解详情

Delta Extends the High Power Factor Value and High Efficiency PJB Series of Open Frame Power Supply with 24V/10A Model

Delta Electronics has added a new model, PJB-24V240W☐☐A to the PJB series of open frame po ...

点击了解详情

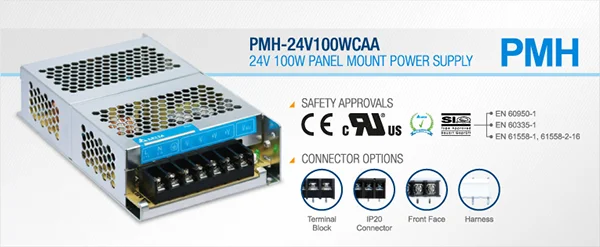

Delta Adds 100W Model to its PMH Series of Power Supply With Household Appliances Safety Approvals
