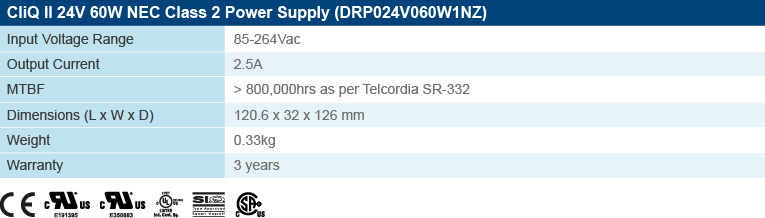

CliQ II 24V 60W NEC Class 2 Power Supply



Delta Electronics is introducing the CliQ II DIN Rail 24V 60W NEC Class 2 (DRP024V060W1NZ) certified power supply. The product can be used in general Industrial applications especially for dry indoor environment with the advantage of lower wiring cost for a system due to compliance with NEC Class 2 requirements. The NEC (National Electrical Code) is a North American standard, which is regarded as a law in most North American states. The NEC describes the installation of electric conductors and equipment within or on buildings. The CliQ II 24V 60W NEC Class 2 features universal AC input and high efficiency at > 87%. It also will not have output power de-rating for the entire range of input voltage from 85Vac to 264Vac. This is useful for system that requires full output power at low input voltage. Typical DIN Rail power supply with similar specs starts to de-rate at input voltage below 90Vac.
