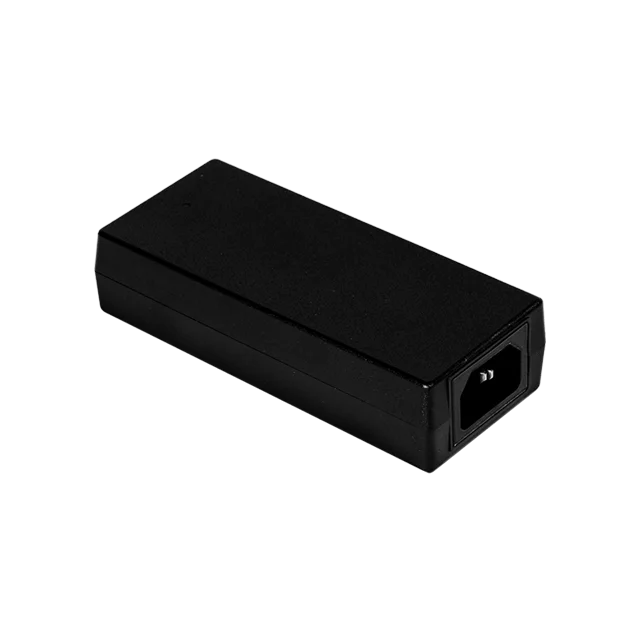

Delta MEA-065A19C 19V 65W 3.42A 適配器 MEA Series

資源下載

Datasheet

Uploaded on 04-Nov-2024

Manual

Uploaded on 22-Nov-2023


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

BIS

Uploaded on 05-Nov-2024

BSMI

Uploaded on 05-Nov-2024

Uploaded on 18-Oct-2023

CCC

Uploaded on 27-Jul-2023

CE & UKCA

Uploaded on 01-Jul-2021

PSE

Uploaded on 14-Oct-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

輸出電流

3.42A

輸出電壓

19V

輸出功率

65W

線電壓調整率

± 0.5%

負載調整率

± 4.5%

紋波電壓

開機時間

< 3000ms @ 115Vac & 230Vac

保持時間

10ms typ. @ 115Vac

動態回應

± 10% @ 0-50% & 50-100% load; Slew rate 0.25A/µs (@ 100Hz, 50% Duty Cycle)

升壓時間

< 50ms @ 115Vac & 230Vac

額定輸入電壓

100-240Vac

輸入電壓範圍

90-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

1.5A @ 115Vac, 0.75A @ 230Vac

浪湧電流

50A @ 115Vac and 100A @ 230Vac

漏電流

0.2mA @ 264Vac NC2), 0.5mA @ 264Vac SFC3)

底架 / 外殼 PC
指示燈 Green LED
冷卻方式 -
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.25 kg (0.55 lb)	尺寸 115 x 50 x 29 mm 4.53” x 1.97” x 1.14”

運行溫度

-10°C to +60°C

儲存溫度

-40°C to +85°C

功率降額

> 40°C de-rate power by 2.5% / °C

運行濕度

10-95% RH (Non-Condensing)

衝擊測試（非運行狀態）

50G, 11ms, 3 shocks for each direction

振動測試（非運行狀態）

5-500Hz, 2.09Grms, 20 minute for each three axis

運行高度

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

過壓保護

150% max, Latch Mode

超負載/過電保護

(max.)
180% max of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

過溫保護

Latch Mode

短路保護

Hiccup Mode, (Non-Latching, Auto-Recovery)

防護等級

IP22

電擊防護等級

Class I

MTBF

1 million Hours based on Telecordia SR-332 (at 115Vac, Max. load and 25°C Ambient)

電氣安全

IEC 62368-1
IEC 60950-1
PSE J 62368-1
GB 4943.1-2022, GB/T 9254.1-2021, GB 17625.1-2012

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

醫療安全

IEC 60601-1 CB report
EN 60601-1
CAN/CSA-C22.2 No. 60601-1
ANSI/AAMI ES60601-1
UL60601-1

電隔離

Input to Output: 4000Vac
Input to PE: 1500Vac
Output to PE: 500Vac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002(UK MDR 2002)

ITE Safety

IEC 62368-1
IEC 60950-1
PSE J 62368-1
GB 4943.1, GB/T 9254.1, GB 17625.1

輻射與傳導

EN/BS EN 55011 Class B Compliance to EN/BS EN 55032, FCC Title 47: Class B

諧波電流排放

IEC61000-3-2

電壓波動和閃變

IEC61000-3-3
