Delta DRS-24V30W1AZ 24V 30W 1.25A 导轨型电源 SYNC Series

资源下载

Datasheet

Uploaded on 28-Feb-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 05-Jun-2024

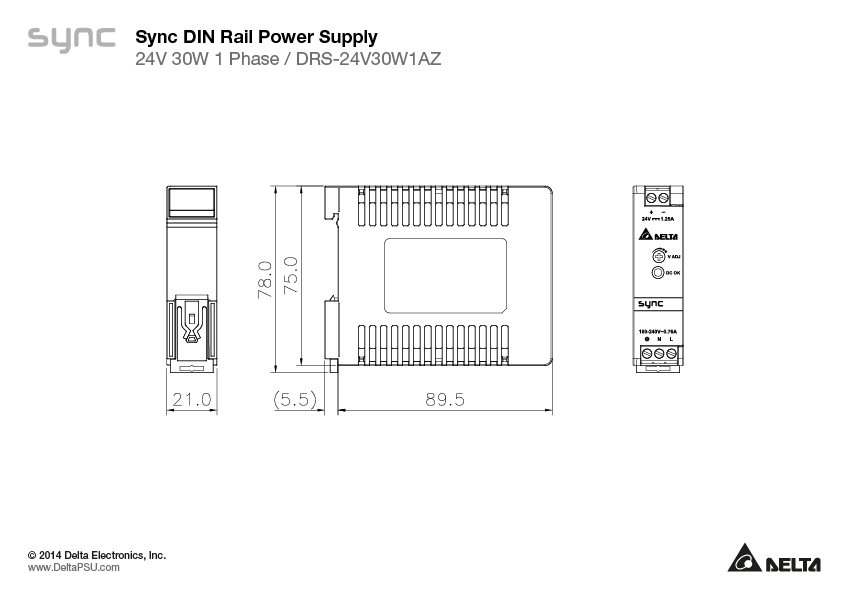

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 17-Aug-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2021

GUI Software

Tech Specs

输出电流

1.25A

输出电压

24V

输出电压调整范围

21.6-26.4Vdc

输出功率

30W

线电压调整率

< 1% typ. (@ 85-264Vac, 100% load)

负载调整率

< 1% typ. (@ 85-264Vac, 0-100% load)

纹波电压

< 150mVpp @ > 0°C to 70°C
< 500mVpp @ 0°C to -20°C

开机时间

< 3,000ms @ 115Vac
< 1,600ms @ 230Vac (100% load)

保持时间

> 20ms @ 230Vac (100% load)

动态回应

± 5% @ 85-264Vac input, 0-50% load, 50-100% (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz)

电容性负载启动

3,000μF Max

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

< 0.80A@115Vac, < 0.40A @ 230Vac

100% 负载效率

88.0% typ.@ 230Vac

涌入电流

(Cold Start)
< 30A @ 115Vac ,< 60A @ 230Vac

漏电流

< 0.5mA @ 240Vac

功率损耗

No load: < 0.5W @ 115Vac & 230Vac
100% load: < 2.5W @ 115Vac & 230Vac

底座 / 外壳上盖 Plastic
指示灯 Green LED: DC OK
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.10 kg (0.22 lb)	尺寸 75 x 21 x 89.5 mm 2.95” x 0.83” x 3.52”

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for X direction

防震测试（运行状态）

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 1 shock for X direction

运行温度

-20°C to +70°C

储存温度

-40°C to +85°C

功率降级

Temperature: -10°C to -20°C de-rate power by 5% / °C
> 55°C de-rate power by 3.33% / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction

振动测试（非运行状态）

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

过压类别

过压保护

< 34.8V, SELV Output, Auto-Recovery

超负载/过电保护

110-150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery when the fault is removed)

过热保护

Auto-Recovery

短路保护

Auto-Recovery when the fault is removed

防护等级

IP20

防震保护

Class I with PE connection

MTBF

Telcordia SR-332: > 700,000 hrs.
I/P: 100Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (230Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1, CSA C22.2 No. 60950-1 (File No. E131881)
UL 62368-1, CSA C22.2 No. 62368-1 (File No. E131881)
CB Scheme: IEC 60950-1, IEC 62368-1 Limited Power Source (LPS)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

工业控制设备

UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

安全特低电压

SELV (EN 60950)

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091
The Electromagnetic Compatibility Regulations 2016

排放

(CE & RE)
Generic Standards: EN 61000-6-3, EN 61000-6-4 CISPR 32, EN 55032, FCC Title 47: Class B

抗扰度

Generic Standards: EN 55024

电压波动和闪变

IEC/EN 61000-3-3
