DRS-5V50W1NZ

导轨型电源

SYNC 系列

DRS-5V50W1NZ

输出电压

输出功率

25W

输出电流

输入电压范围

85-264Vac

尺寸 (H x W x D)

75 x 30 x 89.5 mm

2.95” x 1.18” x 3.52”

重量

0.16 kg (0.35 lb)

亮点与特色

Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
Universal AC input voltage and full power from -10°C to +55°C operation
Up to 82.0% efficiency
Low earth leakage current < 0.75mA @ 264Vac
Built-in DC OK relay contact option available
Extreme low temperature cold start at -40°C
NEC Class 2 / Limited Power Source (LPS) certified (DRS-5V50W1N☐)
Certified according to IEC/EN/UL 62368-1

Optional Models

Model	Description
DRS-5V50W1NR	Without DC OK contact

应用领域

导轨型电源

SYNC 系列

DRS-5V50W1NZ

亮点与特色

Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground
Universal AC input voltage and full power from -10°C to +55°C operation
Up to 82.0% efficiency
Low earth leakage current < 0.75mA @ 264Vac
Built-in DC OK relay contact option available
Extreme low temperature cold start at -40°C
NEC Class 2 / Limited Power Source (LPS) certified (DRS-5V50W1N☐)
Certified according to IEC/EN/UL 62368-1

输出电压

输出功率

25W

输出电流

输入电压范围

85-264Vac

尺寸

75 x 30 x 89.5 mm

2.95” x 1.18” x 3.52”

重量

0.16 kg (0.35 lb)

应用领域

Optional Models

Model	Description
DRS-5V50W1NR	Without DC OK contact

资源下载

Datasheet

Uploaded on 22-Nov-2021

Manual

Uploaded on 23-Sep-2021


Uploaded on 05-Jun-2024

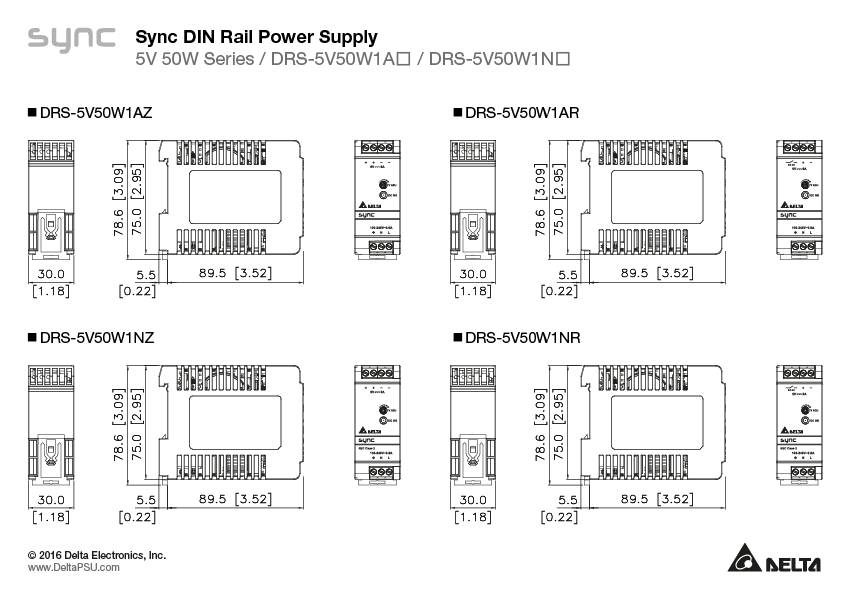

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 09-Apr-2024

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

UKCA

Uploaded on 22-Nov-2021

Uploaded on 09-Apr-2024

GUI Software

Tech Specs

输出电流

输出电压

输出电压调整范围

5.0-5.5Vdc

输出功率

25W

线电压调整率

< 0.5% (@ 85-264Vac, 100% load)

负载调整率

< 1.0% (@ 85-264Vac, 0-100% load)

纹波电压

< 50mVpp @ > 0°C to 70°C
< 100mVpp @ 0°C to -20°C

开机时间

< 2,000ms @ 115Vac (100% load)
< 1,000ms @ 230Vac (100% load)

保持时间

> 20ms @ 115Vac (100% load)
> 100ms @ 230Vac (100% load)

动态回应

± 5% @ 85-264Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

电容性负载启动

3,000μF Max

升压时间

< 30ms @ nominal input (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

直流输入电压范围

120-375Vdc

输入电流

< 0.6A@115Vac, < 0.4A @ 230Vac

100% 负载效率

> 82%@ 115Vac & 230Vac

涌入电流

< 30A @ 115Vac, < 60A @ 230Vac

漏电流

< 0.75 mA @ 264 Vac

功率损耗

0% load: < 0.7W @ 115Vac & 230Vac
100% load: < 7.0W @ 115Vac & 230Vac

底座 / 外壳上盖 Plastic
指示灯 Green LED (DC OK)
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.16 kg (0.35 lb)	尺寸 75 x 30 x 89.5 mm 2.95” x 1.18” x 3.52”

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions

防震测试（运行状态）

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis

运行温度

-20°C to +70°C (Cold start at -40°C @ 40% load)

储存温度

-40°C to +85°C

功率降级

-10°C to -20°C de-rate power by 2% / °C
> 55°C de-rate power by 3.33% / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total

振动测试（非运行状态）

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

运行高度

0 to 2,000 Meters (6,560 ft.)

污染程度

过压保护

< 7.245V, SELV Output, Latch Mode

超负载/过电保护

105~125% of rated load current, Foldback Mode (continuous current, voltage drops), Auto-recovery when the fault is removed

过热保护

< 75°C Surrounding Air Temperature @ 100% load, Latch Mode

短路保护

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

防护等级

IP20

防震保护

Class I with PE connection

MTBF

Telcordia SR-332: > 700,000 hrs, I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C
MIL-HDBK-217F: 165,300 hrs, I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (115ac & 230Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1, UL 62368-1, CSA C22.2 No. 60950-1 (File No. E191395)
CB Scheme: IEC 60950-1, UL 62368-1, Limited Power Source (LPS, for DRS-5V50WN☐ only)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 3.0 KVac
Output to Ground: 0.5 KVac

工业控制设备

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315335)

安全特低电压

SELV (IEC 60950)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

Generic Standards: EN/BS EN 61000-6-3, EN/BS EN 61000-6-4, CISPR 32, EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B

抗扰度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3

通用用途之部件供电

EN 61204-3
