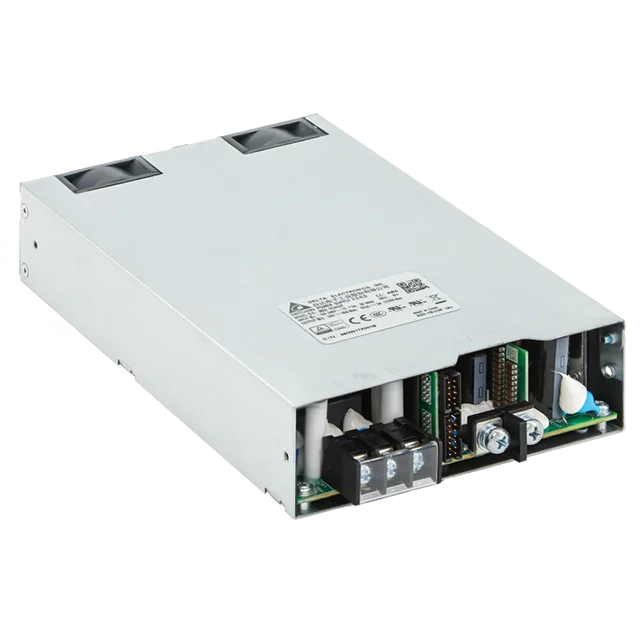

MEB-2K5A48T

内置机壳型电源

MEB 系列

MEB-2K5A48T

输出电压

48V

输出功率

2500W

输出电流

52.1A

输入电压范围

85-264 Vac

尺寸 (L x W x H)

271 x 127 x 40.5 mm

10.67” x 5.00” x 1.59”

重量

1.95 kg (4.30 lb)

亮点与特色

Up to 2,500 Watt in 5.00" x 10.67" x 1.59" package without BUSBAR terminal
Up to 29.5 W/inch³ power density
Full power up to 50°C ambient
2 x MOPP Isolation
Suited for Type BF medical products
5 V / 2 A standby output
Active current Sharing
Conformal coating
Class B Conducted and Radiated EMI
IEC60601-1-2 4th Edition Immunity Compliance
Normal and reversed option for Remove On/Off and Power Good Signal
PMBus Ver 1.3 supported
Intelligent fan speed control

Optional Models

Model	Description
MEB-2K5A48T NAA	Remote On/Off state: default ON
MEB-2K5A48T RAA	Remote On/Off state: default OFF

应用领域

内置机壳型电源

MEB 系列

MEB-2K5A48T

亮点与特色

Up to 2,500 Watt in 5.00" x 10.67" x 1.59" package without BUSBAR terminal
Up to 29.5 W/inch³ power density
Full power up to 50°C ambient
2 x MOPP Isolation
Suited for Type BF medical products
5 V / 2 A standby output
Active current Sharing
Conformal coating
Class B Conducted and Radiated EMI
IEC60601-1-2 4th Edition Immunity Compliance
Normal and reversed option for Remove On/Off and Power Good Signal
PMBus Ver 1.3 supported
Intelligent fan speed control

输出电压

48V

输出功率

2500W

输出电流

52.1A

输入电压范围

85-264 Vac

尺寸

271 x 127 x 40.5 mm

10.67” x 5.00” x 1.59”

重量

1.95 kg (4.30 lb)

应用领域

Optional Models

Model	Description
MEB-2K5A48T NAA	Remote On/Off state: default ON
MEB-2K5A48T RAA	Remote On/Off state: default OFF

资源下载

Datasheet

Uploaded on 14-Feb-2025

Manual

Uploaded on 11-Feb-2025


Uploaded on 14-Feb-2025

Mechanical Drawing

Uploaded on 18-Feb-2025

.DXF

Uploaded on 11-Feb-2025

.STP

Uploaded on 11-Feb-2025

认证

Uploaded on 11-Feb-2025

REACH

Uploaded on 13-Feb-2025

RoHS

Uploaded on 13-Feb-2025

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 11-Feb-2025

UKCA

Uploaded on 11-Feb-2025

GUI Software

Tech Specs

输出电流

52.1A

输出电压

48V

输出功率

2500W

线电压调整率

< 1%

负载调整率

< 2%

开机时间

1200 ms typ. @ 1500 W load, 110 Vac

保持时间

> 16 ms @ 2000 W load, 230 Vac

动态回应

± 10% @ with 50-100% load change

电容性负载启动

6000 uF

波纹与噪音

1% pk-pk Vrated @ rated load

升压时间

< 50 ms

额定输入电压

100-240 Vac

输入电压范围

85-264 Vac

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

输入电流

< 16 A

100% 负载效率

91.1% typ. @ 115 Vac
94.0% typ. @ 230 Vac

涌入电流

< 40 A @ 264 Vac, cold/hot start

功率因数

> 0.95 @ 115 V / 50 Hz, 230 V / 50 Hz, full load

漏电流

Earth Leakage Current: < 0.5 mA @ NC, 1 mA @ SFC
Touch Current: < 0.1 mA @ NC, 0.4 mA @ SFC

功率损耗

< 0.75 W @ remote off status

底座 / 外壳上盖 -
指示灯 -
冷却方式 -
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 1.95 kg (4.30 lb)	尺寸 271 x 127 x 40.5 mm 10.67” x 5.00” x 1.59”

振动测试（运行状态）

5-500 Hz, 2.09 Grms, 20 minutes for each three axis

运行温度

Absolute Maximum/Minimum Rating. -20°C to +70°C. Linear power derate from 100% load at 50°C, to 50% load at 70°C

储存温度

-40°C to +85°C

运行湿度

5-95% RH (Non-Condensing)

防震测试（非运行状态）

50G, 11 ms, 3 shocks for each direction

运行高度

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

污染程度

3 (for IEC 60335-1)

过压保护

Main output 145% of rated normal voltage, Latch Mode
Standby 125% of rated voltage, Latch Mode

超负载/过电保护

Main output 130% of rated current, with Hiccup Mode (Non-Latching, Auto-Recovery)
Standby 3.2 A max with Hiccup Mode (Non-Latching, Auto-Recovery)

过热保护

Hiccup Mode (Non-Latching, Auto-Recovery)

短路保护

Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

MTBF

500 Khrs based on Telecordia SR-332 at 230 Vac, 2,500 W, 35 °C

预计最长使用寿命

26,280 hrs at 230 Vac, 2,500 W, 25°C

电气安全

CB scheme: IEC 60950-1 CB report, IEC 62368-1 CB report

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A1: 2013 + A2: 2021 & EN 60601-1-2: 2015+ A1:2021

医疗安全

CB scheme: IEC 60601-1 CB report
TUV Bauart: IEC/EN 60601-1
UL/cUL: ANSI/AAMI ES 60601-1+CAN/CSA 60601-1

电隔离

Input to/Output (2XMOPP): 4000 Vac
Input to/Ground (1XMOPP): 1500 Vac
Output to/Ground (1XMOPP): 1500 Vac (Type BF applicated rated)

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)

排放

EN55011/ EN55032, FCC Title 47: Class B

抗扰度

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

谐波电流排放

IEC 61000-3-2 Meet Class A limit

电压波动和闪变

IEC 61000-3-3

电压骤降

IEC 61000-4-11, IEC 60601-1-2
