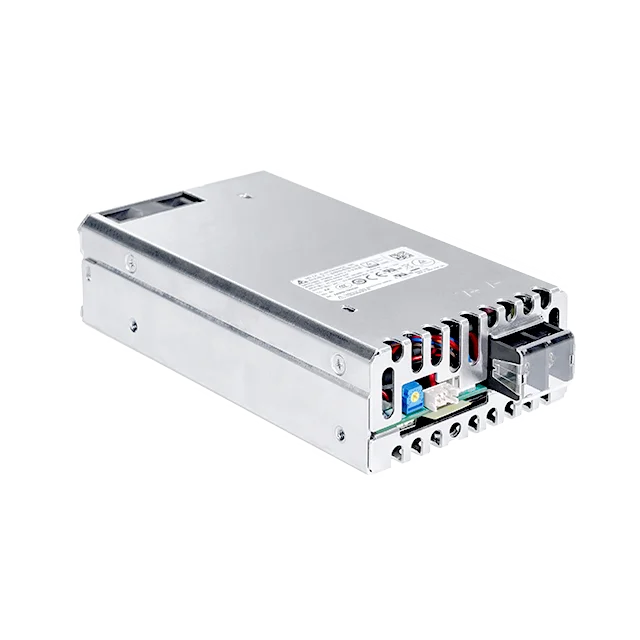

Delta MEB-500A24F 24V 504W 21A 内置机壳型电源 MEB Series

Model	Description
MEB-500A24F AA	Remote On/Off, conformal coating

Model	Description
MEB-500A24F AA	Remote On/Off, conformal coating

资源下载

Datasheet

Uploaded on 12-Jul-2024


Uploaded on 11-Jul-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Oct-2023

CCC

Uploaded on 29-Nov-2023

CE & UKCA

Uploaded on 03-Nov-2021

cTUVus

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

21A

输出电压

24V

输出电压调整范围

21.6V~26.4V

输出功率

504W

线电压调整率

96mv max.

负载调整率

150mv max.

纹波电压

< 300mVpp @ 0~+50°C
< 360mvVpp @-20~0°C.

开机时间

800ms max.

保持时间

16ms typ. @ 120Vac (100% load)

动态回应

±10% @50-100% load (Slew Rate: 0.1A/μS, 50% duty cycle @ 100Hz)

电容性负载启动

8,800μF Max

额定输入电压

100-240Vac

输入电压范围

90-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

5A typ.@ 120Vac , 2.6A typ. @ 230Vac

100% 负载效率

92% typ. @ 230Vac

涌入电流

40A typ. @ 230Vac, Cold start, @ 25°C

功率因数

0.98 typ. @ 115Vac, 0.96 typ. @ 230Vac

漏电流

Input-PE (protective earth) leakage current (max): 0.25 mA @ NC, 0.5 mA @ SFC
Output-PE (protective earth) leakage current for Type BF application (max): 0.1 mA @ NC, 0.3 mA @ SFC

底座 / 外壳上盖 Aluminum
指示灯 -
冷却方式 Built-in Fan
输入端 -
输出端 -
信号端 -
声压级（SPL） Sound Pressure Level (SPL) < 60dBA
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 22-12
保护结构 -
端子台 -
重量 0.66 kg (1.46 lb)	尺寸 165.3 x 85.2 x 41 mm 6.51” x 3.35” x 1.61”

振动测试（运行状态）

IEC60068-2-6, Sine Wave: 10Hz to 55Hz@19.6m/s2(2G peak); 10min per cycle, 60min per axis for all X,Y,Z direction

防震测试（运行状态）

IEC60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3shocks for each 3 directions

运行温度

-20°C to +70°C

储存温度

-30°C to +80°C

功率降级

> 50°C de-rate power by 2.5% / °C

运行湿度

20 to 90% RH (Non-Condensing)

运行高度

0 to 3,000 Meters (9,840 ft.) - IEC 60601-1
0 to 5,000 Meters (16,400 ft.) - IEC 60950-1 & IEC 62368-1

污染程度

过压保护

115-140% (27.6 – 33.6V)
105-150% (5.25 – 7V)
Protection mode: Latch OFF

超负载/过电保护

>105% rated full load current, Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

过热保护

Protection mode: Latch OFF.

短路保护

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

防震保护

Class I with PE connection

MTBF

> 700,000 Hrs. Based on Telecordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

3 years (115Vac, 100% load @ 50°C)

电气安全

IEC 60950-1 & IEC 62368-1 CB report
TUV 60950-1
UL 60950-1 + CAN/CSA 60950-1
CCC GB 17625.1; GB 4943.1; GB/T 9254.1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

医疗安全

IEC 60601-1 CB report
TUV EN 60601-1
UL 60601-1 + ANSI/AAMI ES60601-1 + CAN/CSA 60601-1

电隔离

Input to Output (2XMOPP): 4.0KVac
Input to Earth (1XMOPP): 1.5KVac
Output to Earth (1XMOPP): 1.5KVac (Type BF application rated)

材料与部件

RoHS Directive 2011/65/EU & EU/2015/863 Compliant

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016
and Electromagnetic Compatibility Regulations 2016
Medical Devices Regulations 2002(UK MDR 2002)

排放

EN/BS EN 55011 & compliant with EN/BS EN 55032, FCC Title 47:Class B

谐波电流排放

Meet Class A limit
