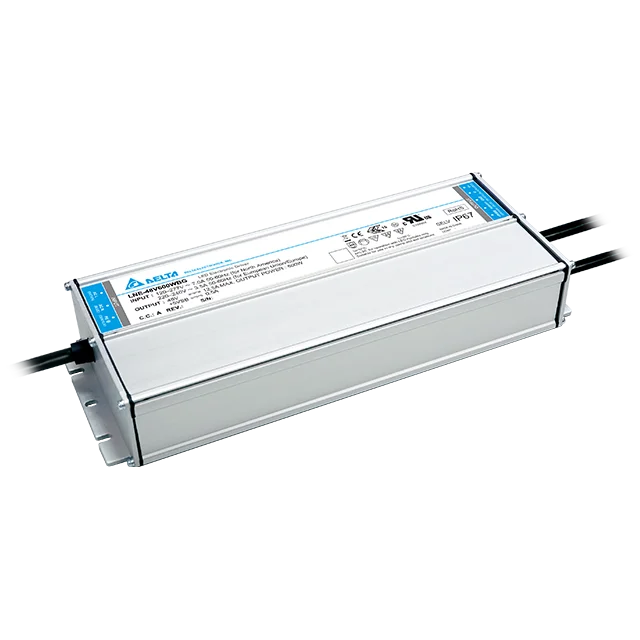

Delta LNE-48V600WBGA 48V 600W 12.5A LED电源 LNE Series

资源下载

Datasheet

Uploaded on 24-Apr-2024

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 20-Oct-2022

认证

Uploaded on 22-Apr-2020

ENEC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

12.5A

输出电压

48V

输出功率

600W

线电压调整率

± 0.5%

负载调整率

± 1%

纹波电压

250mV typ (20 MHz)

开机时间

< 1000ms @ 120Vac
< 500ms @ 230Vac

保持时间

16ms typ. @ 120Vac & 230Vac & 277Vac (100% load)

动态回应

± 5% @ 0-90% load, @ 120Vac & 230Vac & 277Vac (Slew Rate: 0.1A/μS)

CC 型号 LED系统电压范围

24-48Vdc

升压时间

< 50ms @ 120Vac & 230Vac & 277Vac

额定输入电压

120-240Vac

输入电压范围

100-277Vac

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

输入电流

7A max. @ 120Vac, 3.3A max. @ 230Vac, 2.9A max. @ 277Vac

100% 负载效率

96.0% typ. @ 230Vac, 277Vac

涌入电流

65A typ. @ 230Vac

功率因数

0.98 typ. @ 120Vac,
0.95 typ. @ 230Vac,
0.93 typ. @ 277Vac

漏电流

< 0.75mA @ 277Vac

谐波失真总量

< 20% @ 120Vac/60Hz & 230Vac/50Hz (≥ 50% load)
< 20% @ 277Vac/50Hz (≥ 75% load)

功率损耗

< 0.64W @ 230Vac, at 0% load

底座 / 外壳上盖 Aluminium
指示灯 -
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） < 25dBA (1 Meter from power supply)
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 3.15 Kg (6.94 lb)	尺寸 307.5 x 114.3 x 50.8 mm 12.11” x 4.50” x 2.00”

运行温度

-40°C to +70°C (Refer to “de-rating curve”)

储存温度

-40°C to +85°C

功率降级

> 50°C de-rate power by 2.5% / °C
< 120Vac de-rate power by 1.5% / Vac

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

振动测试（非运行状态）

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction

运行高度

0 to 3,000 Meters (9,840 ft.)

污染程度

过压保护

55.2-67.2V, Latch Mode

超负载/过电保护

95-108% of rated load current, constant current limit

过热保护

Latch Mode

短路保护

Auto-Recovery when the fault is removed Degree of

防护等级

IP67

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332. (I/P: 120Vac, O/P: 100% load, Ta: 25°C)

预计最长使用寿命

7 years (I/P: 120Vac & 230Vac, O/P: 50% load @ Ta = 40°C)

电气安全

CB scheme: IEC 61347-1, IEC 61347-2-13
ENEC: EN 61347-1, EN 61347-2-13, EN 62384
UL/cUL recognized: UL 8750 and CAN/CSA C22.2 No.250.13 (Safety approval and dry, damp, wet ratings)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.3kVac
Input to Ground: 2.0kVac
Output to Ground: 1.5kVac

材料与部件

RoHS Directive 2011/65/EU Compliant

排放

CISPR 15, EN 55015, Compliance to CISPR 32, EN 55032, FCC Title 47: Class B

抗扰度

Compliance to EN 61547 and EN55024

谐波电流排放

IEC/EN 61000-3-2, Class C

电压波动和闪变

IEC/EN 61000-3-3
