PMF-5V320WCGB

平板型电源

PMF 系列

PMF-5V320WCGB

输出电压

输出功率

275W

输出电流

55A

输入电压范围

85-264Vac

尺寸 (L x W x H)

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

重量

0.86 kg (1.90 lb)

亮点与特色

全球通用交流輸入電壓範圍
內置活性 PFC 及風扇控速
鋁制外殼和底架全方位防腐蝕
符合諧波電流 IEC/EN/BS EN 61000-3-2，Class A 及 Class D
-20°C 冷開機 @ 100% 負載 (275W)
遠程遙控開/關選項

** NRND **

PMF-5V320WCGR, PMF-5V320WCAB, PMF-5V320WCAR

推荐机种: PMR-5V320WDAA

Optional Models

Model	Description
PMF-5V320WCGR	Front face connector, remote ON/OFF
PMF-5V320WCAB	Terminal block
PMF-5V320WCAR	Terminal block, remote ON/OFF

应用领域

平板型电源

PMF 系列

PMF-5V320WCGB

亮点与特色

全球通用交流輸入電壓範圍
內置活性 PFC 及風扇控速
鋁制外殼和底架全方位防腐蝕
符合諧波電流 IEC/EN/BS EN 61000-3-2，Class A 及 Class D
-20°C 冷開機 @ 100% 負載 (275W)
遠程遙控開/關選項

** NRND **

PMF-5V320WCGR, PMF-5V320WCAB, PMF-5V320WCAR

推荐机种: PMR-5V320WDAA

输出电压

输出功率

275W

输出电流

55A

输入电压范围

85-264Vac

尺寸

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

重量

0.86 kg (1.90 lb)

应用领域

Optional Models

Model	Description
PMF-5V320WCGR	Front face connector, remote ON/OFF
PMF-5V320WCAB	Terminal block
PMF-5V320WCAR	Terminal block, remote ON/OFF

资源下载

Datasheet

Uploaded on 27-Jun-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 10-Oct-2024

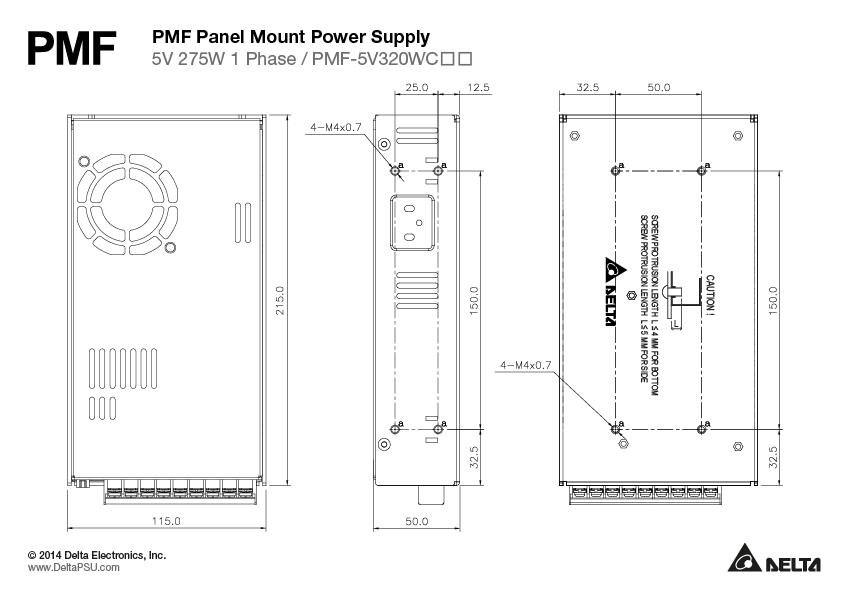

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 06-Jul-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 10-Nov-2020

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

55A

输出电压

输出电压调整范围

4.50-5.50Vdc

输出功率

275W

线电压调整率

± 0.5% typ. (@ 115Vac & 230Vac)

负载调整率

± 2.0% typ. (@ 115Vac & 230Vac)

纹波电压

< 150mVpp @ 25°C
< 300mVpp @ -10°C

开机时间

2500ms typ. @ 115Vac,
1000ms typ. @ 230Vac (100% load)

保持时间

16ms typ. @ 115Vac & 230Vac (100% load)

动态回应

± 5% (0.5V pk-pk) @ 115Vac & 230Vac (0-50% load and 50-100% load)
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz)

电容性负载启动

8,000µF Max

摇控开/关

CN102
Output ON: 5-12.5 V
Output OFF: 0-0.5 V

升压时间

50ms typ. @ 115Vac & 230Vac (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

< 5.00A @ 115Vac,
< 2.50A @ 230Vac

100% 负载效率

78.5% typ. @ 230Vac

涌入电流

(Cold Start)
< 30A @ 115Vac,
< 50A @ 230Vac

功率因数

0.98 typ. @ 115Vac,
0.95 typ. @ 230Vac

漏电流

< 1mA @ 240Vac

功率损耗

0% load: 2.6W typ. @ 115Vac & 2.52W typ. @ 230Vac
100% load: 83.24W typ. @ 115Vac & 72.66W typ. @ 230Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED (DC OK)
冷却方式 Forced Cooling
输入端 -
输出端 -
信号端 -
声压级（SPL） <60dBA
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 14-12
保护结构 -
端子台 -
重量 0.86 kg (1.90 lb)	尺寸 215 x 115 x 50 mm 8.46” x 4.53” x 1.97”

运行温度

-10°C to +70°C (Cold start at -20°C)

储存温度

-25°C to +85°C

功率降级

> 50°C de-rate power by 2.5% / °C
< 90Vac de-rate power by 5% / 1V

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 shocks for each 3 directions

振动测试（非运行状态）

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft)

污染程度

过压类别

过压保护

5.75-7.30V, Latch Mode (AC power is recycled)

超负载/过电保护

105-135%, Hiccup Mode, Non-Latching (Auto-Recovery)

过热保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

TUV Bauart:EN 60950-1, EN62368-1
UL/cUL recognized:UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme:IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0KVac
Input to Ground: 2.0KVac
Output to Ground: 0.5KVac

安全特低电压

SELV (EN 60950-1)

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016
and Electrical Equipment (Safety) Regulations 2016

排放

CISPR 32, EN/BS EN 55032, FCC Title 47: Class B

抗扰度

EN/BS EN 55024

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A and Class D

电压波动和闪变

IEC/EN/BS EN 61000-3-3
