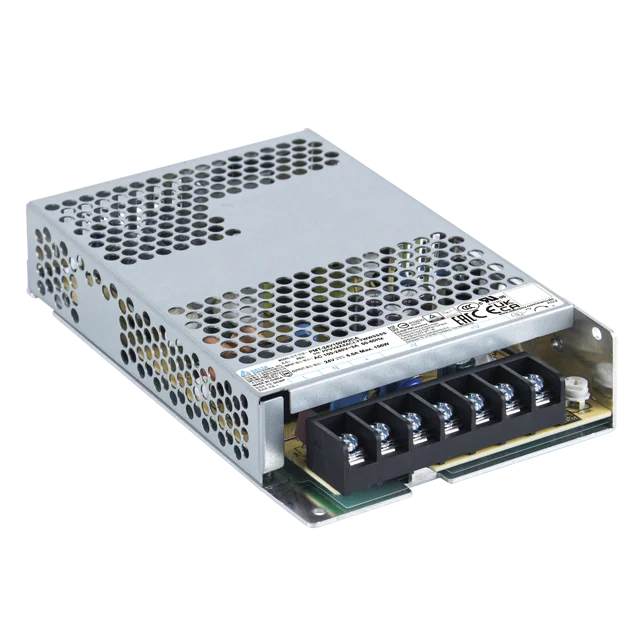

Delta PMR-24V150W1AT 24V 150W 6.5A 平板型电源 PMR Series

资源下载

Datasheet

Uploaded on 04-Jun-2024

Manual

Uploaded on 05-Apr-2024


Uploaded on 02-Apr-2025

Mechanical Drawing

Uploaded on 13-Feb-2024

.DXF

Uploaded on 13-Feb-2024

.STP

Uploaded on 13-Feb-2024

认证

BSMI

Uploaded on 13-Feb-2024

CCC

Uploaded on 13-Feb-2024

EAC

Uploaded on 13-Feb-2024

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TUV

Uploaded on 13-Feb-2024

UKCA

Uploaded on 13-Feb-2024

GUI Software

Tech Specs

输出电流

6.5A

输出电压

24V

输出电压调整范围

21.6-26.4 Vdc

输出功率

150W

线电压调整率

± 0.5% typ. @ 115 Vac & 230 Vac

负载调整率

±0.5% typ.

纹波电压

< 120 mVpp @ 0°C to 70°C
360 mVpp typ. @ -30°C to 0°C

开机时间

500 ms typ. @ 115 Vac & 230 Vac

保持时间

30 ms typ. @ 115 Vac & 230 Vac

动态回应

± 10% @ 115 & 230 Vac input, 10-100% load
(Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)

电容性负载启动

8,000 µF Max

最大功率

156.0 W

升压时间

30 ms typ. @ 115 Vac & 230 Vac

额定输入电压

100-240 Vac

输入电压范围

90-264 Vac

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

直流输入电压范围

127-375 Vdc

输入电流

1.5 A typ. @ 115 Vac
0.8 A typ. @ 230 Vac

输入功率（待机模式）

0.3 W max. @ 230 Vac

100% 负载效率

92.5% typ. @ 230 Vac

涌入电流

45 A typ. @ 230 Vac

功率因数

> 0.96 @ 115 Vac
> 0.93 @ 230 Vac

漏电流

< 0.5 mA @ 240 Vac

底座 / 外壳上盖 Aluminum / SGCC
指示灯 Green LED (DC OK)
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 18-12
保护结构 -
端子台 M3.5 x 7 Pins (Rated 300 V / 20 A)
重量 0.35 kg (0.77 lb)	尺寸 129 x 97 x 30 mm 5.08” x 3.82” x 1.18”

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 2G;10Min per cycle,60min for X,Y,Z direction

运行温度

-30°C to +70°C ( -40°C Cold Start )

储存温度

-40°C to +85°C

功率降级

> 50°C de-rate power by 2% / °C
< 100Vac de-rate power by 1% / V (90% load @ 90 Vac)

运行湿度

20 to 90% (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction

运行高度

0 to 5,000 Meters (0 to 16,400 ft)

污染程度

过压类别

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

过压保护

26.4 V - 33.6 V
SELV Output
Latch Mode

超负载/过电保护

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

过热保护

Latch Mode

短路保护

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

防震保护

Class I with Protection Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332
(I/P: 230 Vac, O/P: 100% Load, Ta: 25°C)

预计最长使用寿命

10 years (230 Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 62368-1, EN 60335-1
UL/cUL: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60335-1, IEC/EN 61558-1/-2-16
EAC: TP TC 004/2011
BSMI: CNS 15598-1
CCC: GB 4943.1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

安全特低电压

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

排放

(CE & RE)
CISPR 32, EN/BS EN 55032, KS C 9832, AS/NZS CISPR32 & Compliance to FCC Title 47, EN/BS EN 55014-1 , EN/BS 61000-6-3 , EN/BS EN 61000-6-4 : Class B

抗扰度

EN/BS EN 55035, KS C 9835, & Compliance to EN/ BS EN 55014-2 , EN/BS EN 61000-6- 1 , EN/BS EN 61000-6-2

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A & Class D

电压波动和闪变

IEC/EN/BS EN 61000-3-3
