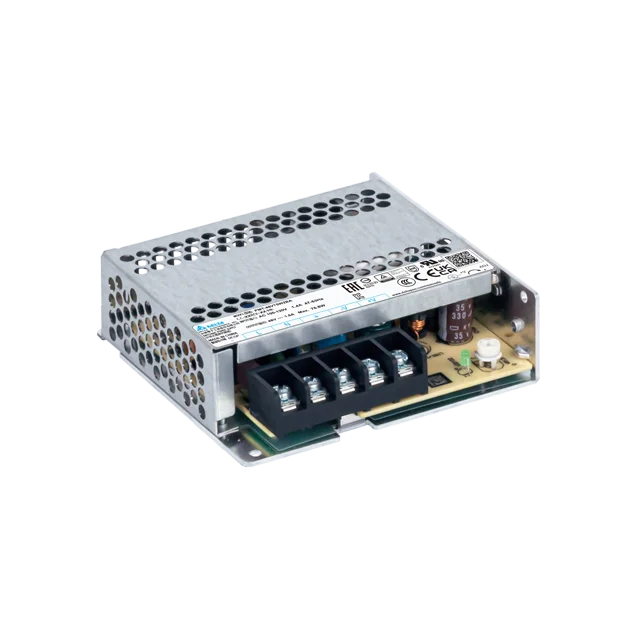

Delta PMT-48V75W2BNJ 48V 76.8W 1.6A 平板型电源 PMT2 ECO (High Line) Series

资源下载

Datasheet

Uploaded on 12-Nov-2024

Manual

Uploaded on 31-Oct-2024


Uploaded on 02-Apr-2025

Mechanical Drawing

Uploaded on 31-Oct-2024

.DXF

Uploaded on 31-Oct-2024

.STP

Uploaded on 31-Oct-2024

认证

BIS

Uploaded on 31-Oct-2024

CCC

Uploaded on 31-Oct-2024

Uploaded on 09-Nov-2024

RoHS

Uploaded on 31-Oct-2024

GUI Software

Tech Specs

输出电流

1.6A

输出电压

48V

输出电压调整范围

43.2-52.8 Vdc

输出功率

76.8W

线电压调整率

± 0.5% (@ 230 Vac input)

负载调整率

± 0.5% (@ 230 Vac input)

纹波电压

< 200 mVpp @ 0°C to 70°C
600 mVpp typ. @ -30°C to 0°C

开机时间

500 ms typ. @ 230 Vac

保持时间

52 ms typ. @ 230 Vac

动态回应

± 10% @ 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)

电容性负载启动

2,000µF Max

升压时间

30 ms typ. @ 230 Vac

额定输入电压

200-240 Vac

输入电压范围

180-264 Vac

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

输入电流

0.85 A typ. @ 230 Vac

100% 负载效率

89.0% typ.

涌入电流

55 A typ. @ 230 Vac

漏电流

< 0.5 mA @ 240 Vac

底座 / 外壳上盖 SGCC / Aluminium
指示灯 Green LED (DC OK)
冷却方式 Convection
输入端 M3.5 x 5 Pins (Rated 300 V / 20 A)
输出端 -
信号端 -
声压级（SPL） < 25dBA
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 18-12 Current rating can refer to page 6 “Wire AWG Table”
保护结构 -
端子台 -
重量 0.216 kg (0.48 lb)	尺寸 99 x 97 x 30 mm 3.90” x 3.82” x 1.18”

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 20 Hz to 500 Hz (5G); 10 min per cycle, 60 min for each axis (X, Y,Z)

防震测试（运行状态）

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions

运行温度

-40°C to +70°C

储存温度

-40°C to +85°C

功率降级

> 50°C de-rate power by 2% / °C

运行湿度

20 to 90% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions

振动测试（非运行状态）

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

过压类别

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

过压保护

52.8 V-64.8 V
SELV Output, Latch Mode

超负载/过电保护

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

过热保护

Latch Mode

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332 (I/P: 230Vac, O/P: 100% Load, Ta: 25°C)

预计最长使用寿命

10 years (230Vac, 50% load @ 40°C)

电气安全

CB scheme: IEC 62368-1
CCC: GB 4943.1
BIS: IS 13252 (Part 1)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

安全特低电压

SELV

排放

(CE & RE)
CISPR 32, EN 55032, Class A

抗扰度

EN 55035

谐波电流排放

IEC/EN 61000-3-2, Class A
