EUCI-022105GIA

LED Driver

EUCI PREMIUM Series

EUCI-022105GIA

Output Voltage

8-48V

Output Power

22W

Output Current

0.2-1.05A

Input Voltage Range

198-264Vac

Dimensions (L x W x H)

133 x 77 x 40 mm

5.24” x 3.03” x 1.57”

Unit Weight

0.57 kg (1.26 lb)

Highlights & Features

DALI 2 standard D4i certified LED-drivers
Flexible and fully configuration via software GUI (DALI Interface, NFC)
Dual integrated power supplies to power sensors directly from the driver
Dimmable built-in constant current with a dimming range 5 –100 %
High-accuracy integrated power metering
Extra energy savings through high efficiency and via multiple dimming options, including Corridor function

Applications

LED Driver

EUCI PREMIUM Series

EUCI-022105GIA

Highlights & Features

DALI 2 standard D4i certified LED-drivers
Flexible and fully configuration via software GUI (DALI Interface, NFC)
Dual integrated power supplies to power sensors directly from the driver
Dimmable built-in constant current with a dimming range 5 –100 %
High-accuracy integrated power metering
Extra energy savings through high efficiency and via multiple dimming options, including Corridor function

Output Voltage

8-48V

Output Power

22W

Output Current

0.2-1.05A

Input Voltage Range

198-264Vac

Dimensions

133 x 77 x 40 mm

5.24” x 3.03” x 1.57”

Unit Weight

0.57 kg (1.26 lb)

Applications

Download

Datasheet

Uploaded on 01-Feb-2024


Uploaded on 05-Jun-2024

.DXF

Uploaded on 22-Aug-2023

.STP

Uploaded on 22-Aug-2023

Certificates

Uploaded on 22-Aug-2023

CE & UKCA

Uploaded on 22-Aug-2023

ENEC

Uploaded on 22-Aug-2023

GUI Software

GUI Program

Uploaded on 08-Oct-2024

Tech Specs

Output Current

0.2-1.05A

Output Voltage

8-48V

Output Voltage Range

8-48Vdc

Output Power

22W

Max Output Voltage

90Vdc

Start-up Time

520~1000ms max. (@ 220-240Vac)

Nominal Input Voltage

220-240Vac

Input Voltage Range

198-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

0.13A @ 230Vac

Efficiency at 100% load

87% @ 0.46A, 230Vac
84% @ 1.05A, 230Vac

Inrush Current

50A/180uS @ 230Vac

Power Factor at 100% load

> 0.95 @ 230Vac, 100% load
> 0.90 @230Vac, 50% load

Leakage Current

< 0.7mA peak @ 230Vac

Total Harmonic Distortion

THD < 20% with load ≥ 50% @ 230Vac

Case Chassis / Cover Plastic, Color : Black
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 24dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.57 kg (1.26 lb)	Dimensions 133 x 77 x 40 mm 5.24” x 3.03” x 1.57”

Operating Temperature

-40°C to +55°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 90% RH (Non-Condensing)

Storage Humidity

5 to 95% RH (Non-Condensing)

Overvoltage

90Vrms, LED driver will work normally when the fault is removed

Overload / Overcurrent

Reduce output current. Auto-Recovery when the fault is removed

Over Temperature

Reduce output current. Auto-Recovery when the fault is removed

Short Circuit

Auto-Recovery when the fault is removed

Degree of Protection

IP20

MTBF

50,000 hours @ lifetime case temperature

Expected Cap Life Time

1,000,000 hours @Ta=+55°C (as per Telcordia SR-332, total failure rate less than 10%)

Electrical Safety

IEC 61347-1, IEC 61347-2-13 (Built in)
EN 61347-1, EN 61347-2-13
SELV
ENEC, UKCA

In conformance with EMC Directive and Low Voltage Directive

Material and Parts

RoHS Directive 2019/65/EU Compliant

Emission

(CE & RE)
Compliance to EN 55015 Class B

Immunity

Compliance to EN 61547

Harmonic Current Emissions

IEC 61000-3-2, Class C (230Vac @ ≥ 50% load)

Voltage Fluctuation and Flicker

IEC 61000-3-3

(/3) Item(s) selected

EUCI-022105GIA

LED Driver

EUCI PREMIUM Series

EUCI-022105GIA

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

Unit Weight

Highlights & Features

Tags

Applications

EUCI-022105GIA

EUCI-022105GIA

LED Driver

EUCI PREMIUM Series

EUCI-022105GIA

Highlights & Features

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions

Unit Weight

Applications

Tags

Download

Download

Tech Specs

Tech Specs

Looking for support for this product?

Looking for support for this product?

Related Products

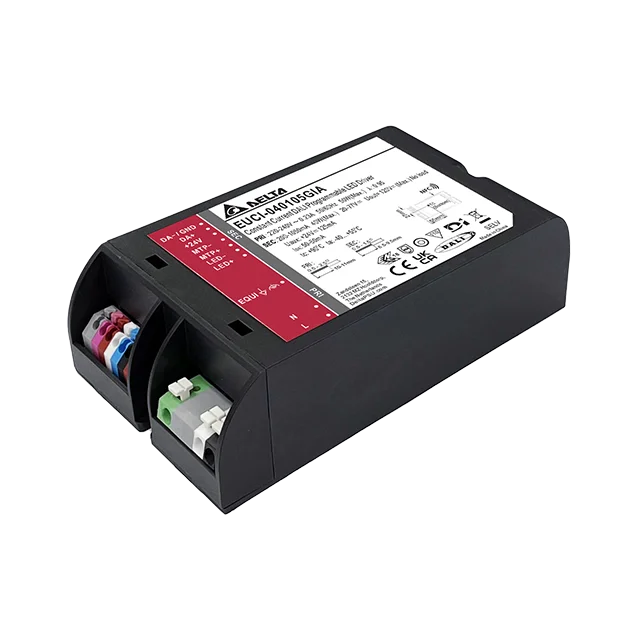

EUCI-040105GIA

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

133 x 77 x 40 mm

5.24” x 3.03” x 1.57”

EUCI-075105GIA

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

133 x 77 x 40 mm

5.24” x 3.03” x 1.57”

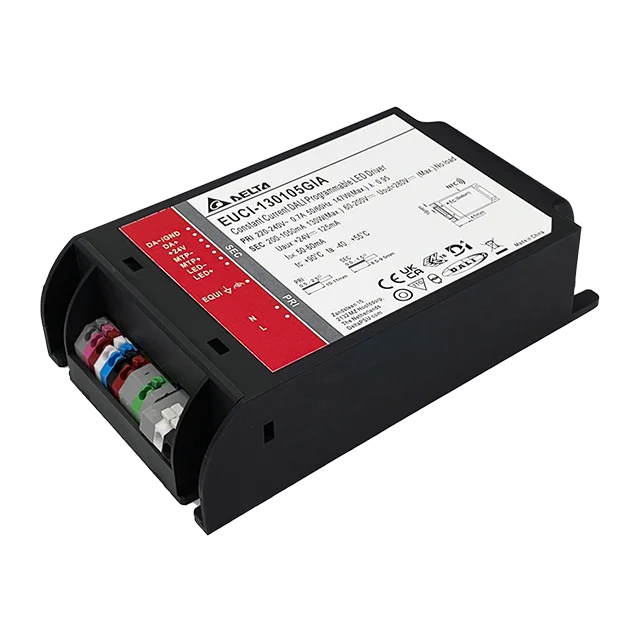

EUCI-130105GIA
