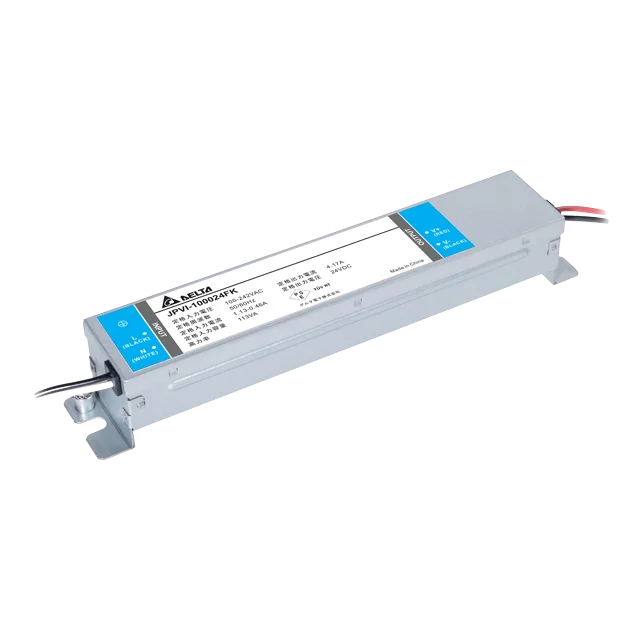

JPVI-100024FK

LED Driver

JPVI S24 Series

JPVI-100024FK

Output Voltage

24V

Output Power

100W

Output Current

4.17A

Input Voltage Range

90-266Vac

Dimensions (L x W x H)

241.3 x 43 x 40.5 mm

9.50” x 1.69” x 1.59”

Unit Weight

0.55 kg (1.21 lb)

Highlights & Features
  • 24V constant voltage design
  • AC input voltage 100 / 200 / 242Vac
  • Meets JIS C 61000-3-2 Class C
  • Up to 90% efficiency for 60W, 100W and 150W
  • Wide operating temperature range
  • 10mm structure elevated to meet indoor wiring regulation
Model Description

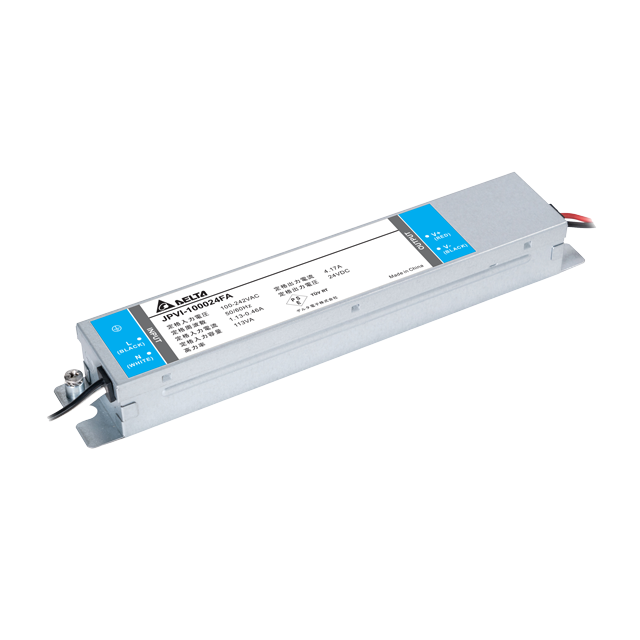

JPVI-100024FA Standard
Applications
JPVI-100024FK
JPVI-100024FK

LED Driver

JPVI S24 Series

JPVI-100024FK

Highlights & Features
  • 24V constant voltage design
  • AC input voltage 100 / 200 / 242Vac
  • Meets JIS C 61000-3-2 Class C
  • Up to 90% efficiency for 60W, 100W and 150W
  • Wide operating temperature range
  • 10mm structure elevated to meet indoor wiring regulation
Output Voltage

24V

Output Power

100W

Output Current

4.17A

Input Voltage Range

90-266Vac

Dimensions

241.3 x 43 x 40.5 mm

9.50” x 1.69” x 1.59”

Unit Weight

0.55 kg (1.21 lb)

Applications
Model Description
JPVI-100024FA Standard

Download

Download

Datasheet

Uploaded on 10-May-2023


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 10-May-2023

.DXF

Uploaded on 10-May-2023

.STP

Uploaded on 10-May-2023

PSE

Uploaded on 10-May-2023

Tech Specs

Tech Specs

Output Current
4.17A
Output Voltage
24V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
100W
Output Current Adjustment Range
Max Output Voltage
25.2Vdc
Buffering Time
-
Line Regulation
± 1%
Load Regulation
± 5%
PARD
-
Start-up Time
< 500ms
Hold-up Time
-
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
< 100ms
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100 / 200 / 242Vac
Input Voltage Range
90-266Vac
Max Input Voltage
-
Nominal Input Frequency
50-60 Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
1.13A @100Vac
0.55 @200Vac
0.46A @242Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
87.5% @100Vac
90.7% @200Vac
91.0%A @242Vac at cold start
Inrush Current
25A/ 200uS @ 100Vac and 60A/ 200uS @ 242Vac at cold start
Charging Time
-
Power Factor at 100% load
> 0.9 @ full load
Leakage Current
< 0.7mA
Nominal Current
-
Total Harmonic Distortion
Meet JIS C 61000-3-2 Class C @ full load
Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Metal sheet
Indicator
-
Cooling System
Convection
Input Terminal
Line: Black, Neutral: White, Wires Length 300mm
Output Terminal
Positive: Red, Negative: Black, Wires Length 300mm
Signal Terminal
-
Noise Sound Pressure Level (SPL)
< 24dBA, 30cm distance
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
0.55 kg (1.21 lb)
Dimensions
241.3 x 43 x 40.5 mm
9.50” x 1.69” x 1.59”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-10°C to +40°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10 to 90% RH (Non-Condensing
Shock Test (Non-Operating)
-
Vibration (Non-Operating)
5Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction
Storage Humidity
5 to 95% RH (Non-Condensing)
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
Auto-Recovery when the fault is removed
Overload / Overcurrent
Auto-Recovery when the fault is removed
Over Temperature
Auto-Recovery when the fault is removed
Short Circuit
Auto-Recovery when the fault is removed
Reverse Polarity Protection
-
Degree of Protection
IP54 equivalent
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
500,000 hrs.@ 40°C ambient temperature as per Telcordia SR-332
Expected Cap Life Time
50,000 hrs.@ ambient case temperature
Safety Certificate
-
Electrical Safety
PSE Clause 1, Interpretation on Ministerial Ordinance establishing Technical Requirements Appendix 8, Sec. 1, 2 (102) DC Power Supply Unit, Appendix 10 Sec. 5 & Appendix 4 of the Enforcement Regulations (AC Electric Appliances
CE
-
Medical Safety
-
Galvanic Isolation
Input to Output : 4,000Vac
Input to Case :1,500Vac
Output to Case :500Vac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
-
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
-
Immunity
-
Harmonic Current Emissions
JIS C 61000-3-2
Voltage Fluctuation and Flicker
-
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
