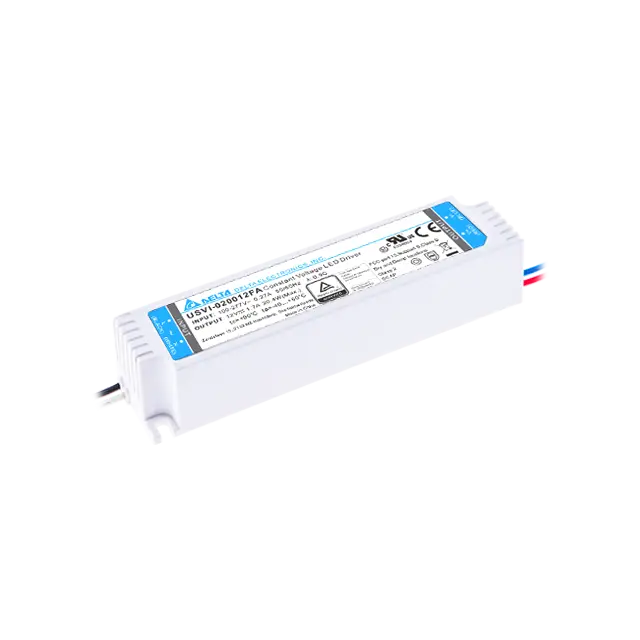

USVI-020012FA

LED Driver

USVI S12 Series

USVI-020012FA

Output Voltage

12V

Output Power

20W

Output Current

1.7A

Input Voltage Range

90-305Vac

Dimensions (L x W x H)

132.5 x 34.0 x 25.4 mm

5.22” x 1.34” x 1.00”

Unit Weight

0.18 kg (0.40 lb)

Highlights & Features

Constant voltage design
Universal AC input voltage from 100-277Vac
Class 2 Output
Up to 80% efficiency
Wide operating temperature range -40°C to +60°C
Active PFC. Meet IEC/EN 61000-3-2, Class C
Dry and Damp location rated
1’’ height design for indoor applications

Applications

Download

Datasheet

Uploaded on 23-Mar-2022


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.STP

Uploaded on 10-Feb-2021

Certificates

Uploaded on 22-Oct-2020

RoHS

Uploaded on 24-Apr-2020

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

1.7A

Output Voltage

12V

Output Power

20W

Line Regulation

± 1%

Load Regulation

± 3%

Start-up Time

< 1s

Rise Time

< 50ms

Nominal Input Voltage

100-277Vac

Input Voltage Range

90-305Vac

Nominal Input Frequency

50/60 Hz

Input Frequency Range

47-63Hz

Efficiency at 100% load

80.0% typ @277Vac

Power Factor at 100% load

> 0.9

Leakage Current

< 0.75mA@ 277Vac

Total Harmonic Distortion

< 20% @ max. load

Case Chassis / Cover Plastic
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) 24dBA (30cm distance)
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.18 kg (0.40 lb)	Dimensions 132.5 x 34.0 x 25.4 mm 5.22” x 1.34” x 1.00”

Operating Temperature

-40°C to + 60°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 90% RH (Non-Condensing)

Storage Humidity

5 to 95% RH (Non-Condensing)

Overvoltage

Auto-Recovery when the fault is removed

Overload / Overcurrent

Auto-Recovery when the fault is removed

Over Temperature

Auto-Recovery when the fault is removed

Short Circuit

Auto-Recovery when the fault is removed

MTBF

500,000 hrs.@ta: +40ยฐC (as per Telcordia SR-332 , total failure rate less than 10% )

Expected Cap Life Time

50,000 hrs.@ lifetime case temperature

Electrical Safety

UL 8750, Class P, type “HL”. Output meet class 2 of UL1310
IEC 61347-1, IEC 61347-2-13
SELV Output

In conformance with EMC Directive and Low Voltage Directive

Emission

Compliance to EN 55015 Class B

Immunity

Compliance to EN 61547

Harmonic Current Emissions

IEC 61000-3-2, Class C (230Vac @ 100% load)

Voltage Fluctuation and Flicker

IEC 61000-3-3
