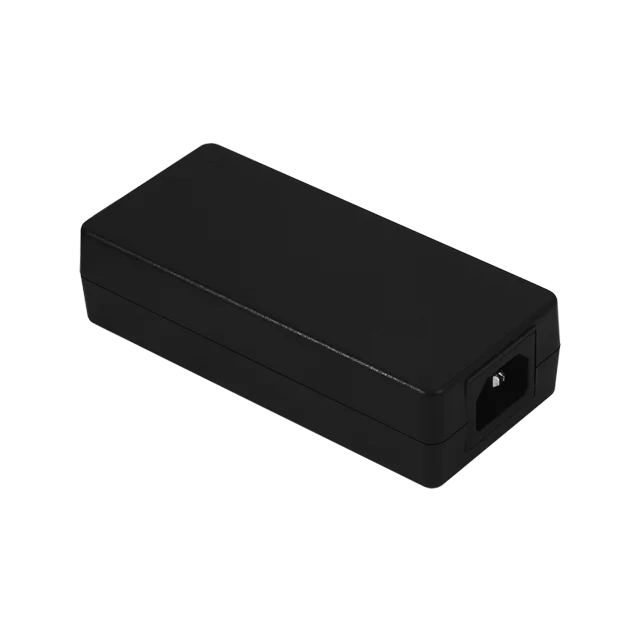

MDS-060AAS12 B

Adapter

MDS Adapter Series

MDS-060AAS12 B

Output Voltage

12V

Output Power

60W

Output Current

Input Voltage Range

90-275Vac

Dimensions (L x W x H)

135 x 62 x 34.1 mm

5.31” x 2.44” x 1.34”

Unit Weight

0.36 kg (0.79 lb)

Highlights & Features

Meet DOE Level V
Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation
3 years warranty

** Discontinued Product **
Replaced by: MEA-065A12C A-A, MEA-065A12C 6-A

Applications

Adapter

MDS Adapter Series

MDS-060AAS12 B

Highlights & Features

Meet DOE Level V
Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation
3 years warranty

** Discontinued Product **
Replaced by: MEA-065A12C A-A, MEA-065A12C 6-A

Output Voltage

12V

Output Power

60W

Output Current

Input Voltage Range

90-275Vac

Dimensions

135 x 62 x 34.1 mm

5.31” x 2.44” x 1.34”

Unit Weight

0.36 kg (0.79 lb)

Applications

Download

Datasheet

Uploaded on 08-Aug-2022

Manual

Uploaded on 22-Nov-2023


Uploaded on 25-Mar-2025

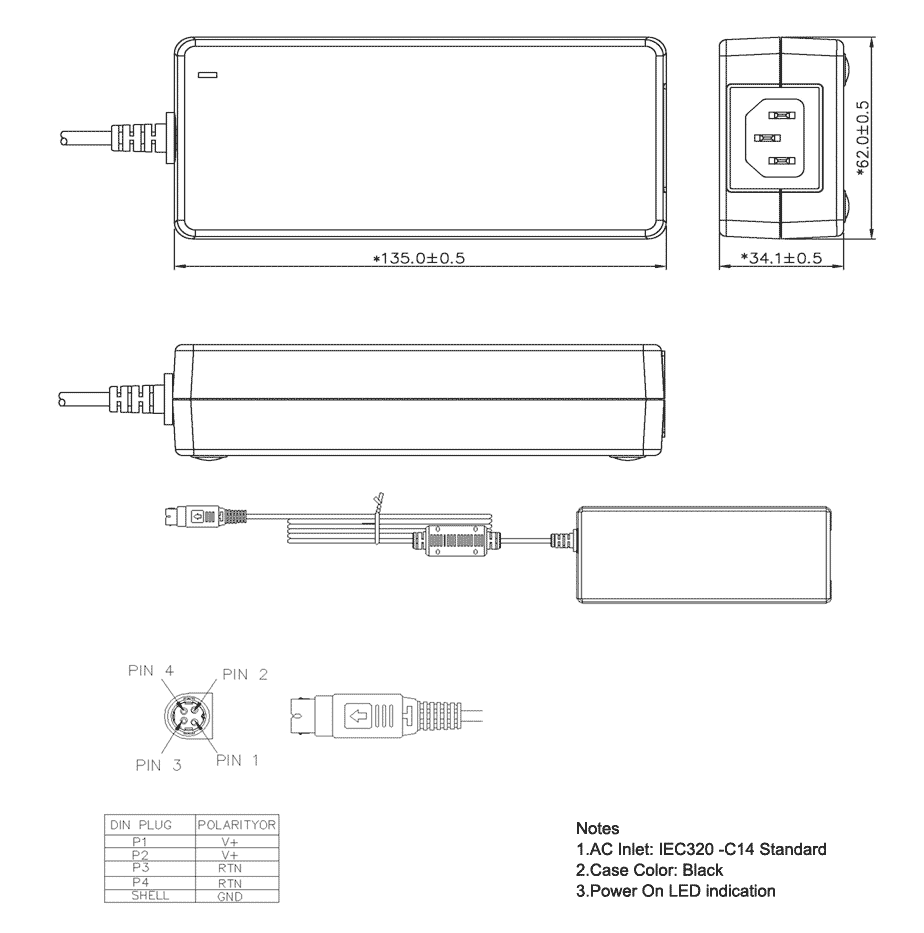

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 19-Jan-2023

CCC

Uploaded on 21-Feb-2024

CE & UKCA

Uploaded on 21-Jun-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

Uploaded on 15-Sep-2020

GUI Software

Tech Specs

Output Current

Output Voltage

12V

Output Power

60W

Line Regulation

± 0.5%

Load Regulation

± 4.5%

Start-up Time

3000ms @ 115Vac

Hold-up Time

10ms @ 115Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 50-100% load

Ripple & Noise

67mV pk-pk @ Full load

Nominal Input Voltage

100-250Vac

Input Voltage Range

90-275Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.5A @ 115Vac,
0.75A @ 230Vac

Efficiency at 100% load

87% (typ.)

Inrush Current

50A @ 115Vac,
100A @ 230Vac (typ.)

Leakage Current

0.1mA @ 275Vac NC,
0.3mA @ 275Vac SFC

Case Chassis / Cover PC
Indicator LED
Cooling System -
Input Terminal C14 socket
Output Terminal 4 pin Din
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.36 kg (0.79 lb)	Dimensions 135 x 62 x 34.1 mm 5.31” x 2.44” x 1.34”

Operating Temperature

0°C to +40°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50G, 11ms, 3 shocks for each direction

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20 minute for each three axis

Operating Altitude

3,000 meters (9,840 feet)

Overvoltage

150%, Latch Mode

Overload / Overcurrent

180% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

Over Temperature

Hiccup Mode, (Non-Latching, Auto-Recovery)

Short Circuit

Hiccup Mode, (Non-Latching, Auto-Recovery)

Degree of Protection

IP40

Protection Against Shock

Class I

MTBF

1 million Hrs based on Telecordia SR-332

Electrical Safety

IEC60950-1 (Ed.2,2005), IEC62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003

In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

Medical Safety

IEC60601-1 3rd and 3.1rd edition CB report
IEC60601-1 edition 3.1rd (2012), EN60601-1 (2006) + A11 + A1 + A12, CAN/CSA-C22.2 NO. 60601-1:14, ANSI/AAMI ES60601-1:2005/(R)2012

Galvanic Isolation

Input to Output: 4000Vac
Input to Ground: 1500Vac
Output to Ground: 500Vac

UKCA

Medical Devices Regulations 2002(UK MDR 2002)

Emission

EN/BS EN 55011, EN/BS EN 55032, Compliance to FCC Title 47: Class B

Harmonic Current Emissions

IEC61000-3-2, Meet Class A limit

Voltage Fluctuation and Flicker

IEC61000-3-3
