MDS-090AAS19 F/B

Adapter

MDS Adapter Series

MDS-090AAS19 F/B

Output Voltage

19V

Output Power

90W

Output Current

4.73A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

150 x 65 x 35 mm

5.91” x 2.56” x 1.38”

Unit Weight

0.45 kg (0.99 lb)

Highlights & Features

Meet DOE Level VI and ErP Lot 7
Safety Approvals to IEC 60601-1 & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1mA Normal & <0.3mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation
3 years warranty

** NRND **
Recommended Models: MEA-090A19C 6-A, MEA-090A19C V-A

Optional Models

Model	Description
MDS-090AAS19 FA	Class I, 4 Pin DIN
MDS-090AAS19 FE	Class I, tuning fork
MDS-090AAS19 BA	Class II with functional Earth, 4 Pin DIN
MDS-090AAS19 BE	Class II with functional Earth, tuning fork

Applications

Adapter

MDS Adapter Series

MDS-090AAS19 F/B

Highlights & Features

Meet DOE Level VI and ErP Lot 7
Safety Approvals to IEC 60601-1 & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1mA Normal & <0.3mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation
3 years warranty

** NRND **
Recommended Models: MEA-090A19C 6-A, MEA-090A19C V-A

Output Voltage

19V

Output Power

90W

Output Current

4.73A

Input Voltage Range

90-264Vac

Dimensions

150 x 65 x 35 mm

5.91” x 2.56” x 1.38”

Unit Weight

0.45 kg (0.99 lb)

Applications

Optional Models

Model	Description
MDS-090AAS19 FA	Class I, 4 Pin DIN
MDS-090AAS19 FE	Class I, tuning fork
MDS-090AAS19 BA	Class II with functional Earth, 4 Pin DIN
MDS-090AAS19 BE	Class II with functional Earth, tuning fork

Download

Datasheet

Uploaded on 01-Dec-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 05-Jul-2024

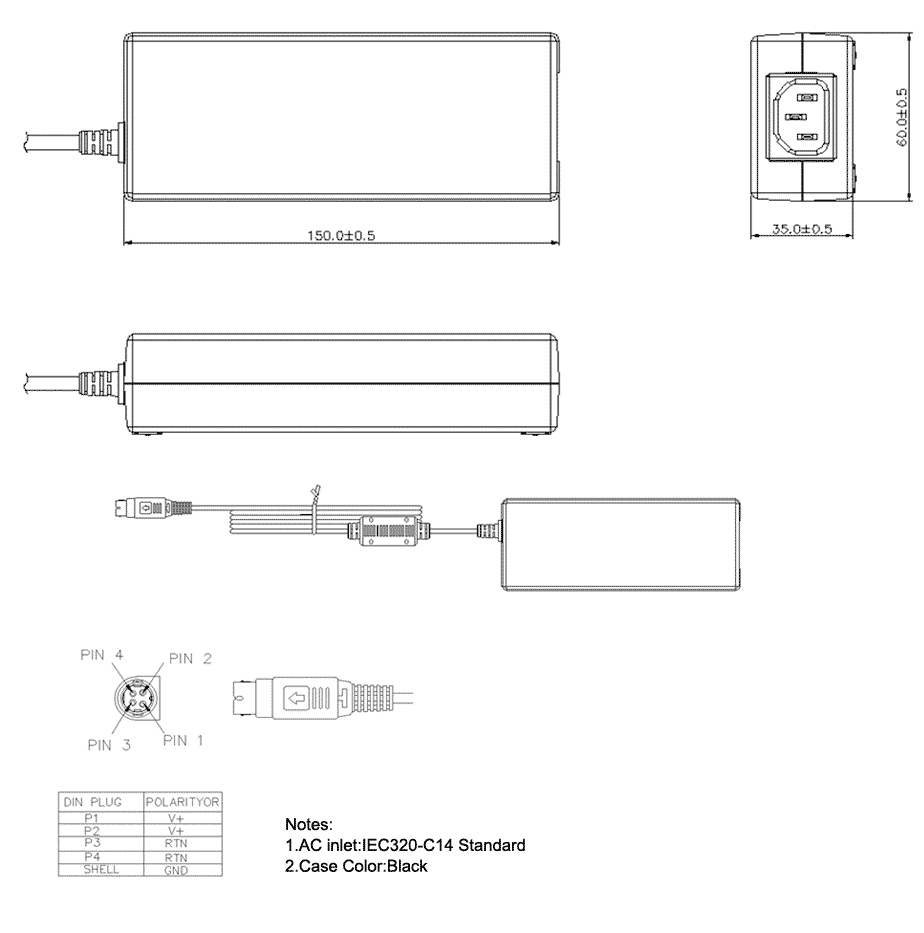

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 18-Oct-2023

CCC

Uploaded on 22-Apr-2020

CE & UKCA

Uploaded on 24-Jun-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

4.73A

Output Voltage

19V

Output Power

90W

Line Regulation

± 0.5%

Load Regulation

± 4.5%

Start-up Time

3000ms

Hold-up Time

20ms @ 115Vac&230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 50-100% load

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

2A @ 115Vac,
1A @ 230Vac

Efficiency at 100% load

91.7% (typ.)

Inrush Current

50A @ 115Vac, 100A @ 230Vac (typ.)

Leakage Current

0.1mA @ 264Vac NC1), 0.3mA @ 264Vac SFC

Case Chassis / Cover PC
Indicator -
Cooling System -
Input Terminal C14 socket
Output Terminal 4pin Din / Barrel type / Tuning fork type
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.45 kg (0.99 lb)	Dimensions 150 x 65 x 35 mm 5.91” x 2.56” x 1.38”

Operating Temperature

0°C to +40°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50G, 11ms, 3 shocks for each direction

Vibration (Non-Operating)

5-500Hz, 2.09Grms, 20 minute for each three axis

Operating Altitude

3,000 meters (9842.52 feet)

Overvoltage

150%, Latch Mode

Overload / Overcurrent

130% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

Over Temperature

Hiccup Mode, (Non-Latching, Auto-Recovery)

Short Circuit

Hiccup Mode, (Non-Latching, Auto-Recovery)

Protection Against Shock

Class I for F series
Class II with functional earth for B series

MTBF

1 Million based on Telecordia SR-332

Electrical Safety

IEC 60950-1 (Ed.2,2005), IEC 62368-1, GB 4943.1-2011, GB 9254-2008, GB 17625.1-2003

In conformance with EN 60601-1 & EN 60601-1-2

Medical Safety

IEC 60601-1 CB report
EN 60601-1, CAN/CSA-C22.2 No. 60601-1, ANSI / AAMI
ES 60601-1

Galvanic Isolation

Input to Output: 4000 Vac
Input to Ground: 1500 Vac
Output to Ground: 500 Vac

UKCA

Medical Devices Regulations 2002(UK MDR 2002)

ITE Safety

IEC 60950-1, IEC 62368-1, GB 4943.1, GB 9254, GB 17625.1

Emission

EN/BS EN 55011, EN/BS EN 55032, Compliance to FCC Title 47:Class B

Harmonic Current Emissions

IEC61000-3-2 Meet Class A limit

Voltage Fluctuation and Flicker

EN61000-3-3

ESD Immunity

IEC61000-4-2

Radiated Immunity

IEC61000-4-3

EFT

IEC61000-4-4

Surge

IEC61000-4-4

Conducted Immunity

IEC61000-4-4

Magnetic Field

IEC61000-4-8

Voltage Dips

IEC61000-4-11
