MDS-150AAS12 B

Adapter

MDS Adapter Series

MDS-150AAS12 B

Output Voltage

12V

Output Power

120W

Output Current

10A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

170 x 85 x 40 mm

6.69” x 3.35” x 1.57”

Unit Weight

1.1 Kg (2.43 lb)

Highlights & Features
  • Meet DOE Level VI and ErP Lot 7
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Compliant with IEC 60601-1-2 4th Ed. Requirements
  • Low touch current (<0.1 mA Normal & <0.3 mA single fault)
  • Over-Voltage/Load/Temperature & Short Circuit protections
  • 1 Million Hours MTBF
  • 2 × MOPP isolation
  • 3 years warranty


** NRND **
Recommended Model: MEA-160A12C GAA

Model Description
MDS-150AAS12 BA Delta Standard
Applications


MDS-150AAS12 B
MDS-150AAS12 B

Adapter

MDS Adapter Series

MDS-150AAS12 B

Highlights & Features
  • Meet DOE Level VI and ErP Lot 7
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Compliant with IEC 60601-1-2 4th Ed. Requirements
  • Low touch current (<0.1 mA Normal & <0.3 mA single fault)
  • Over-Voltage/Load/Temperature & Short Circuit protections
  • 1 Million Hours MTBF
  • 2 × MOPP isolation
  • 3 years warranty


** NRND **
Recommended Model: MEA-160A12C GAA

Output Voltage

12V

Output Power

120W

Output Current

10A

Input Voltage Range

90-264Vac

Dimensions

170 x 85 x 40 mm

6.69” x 3.35” x 1.57”

Unit Weight

1.1 Kg (2.43 lb)

Applications
Model Description
MDS-150AAS12 BA Delta Standard

Download

Download

Datasheet

Uploaded on 01-Dec-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 26-Mar-2025

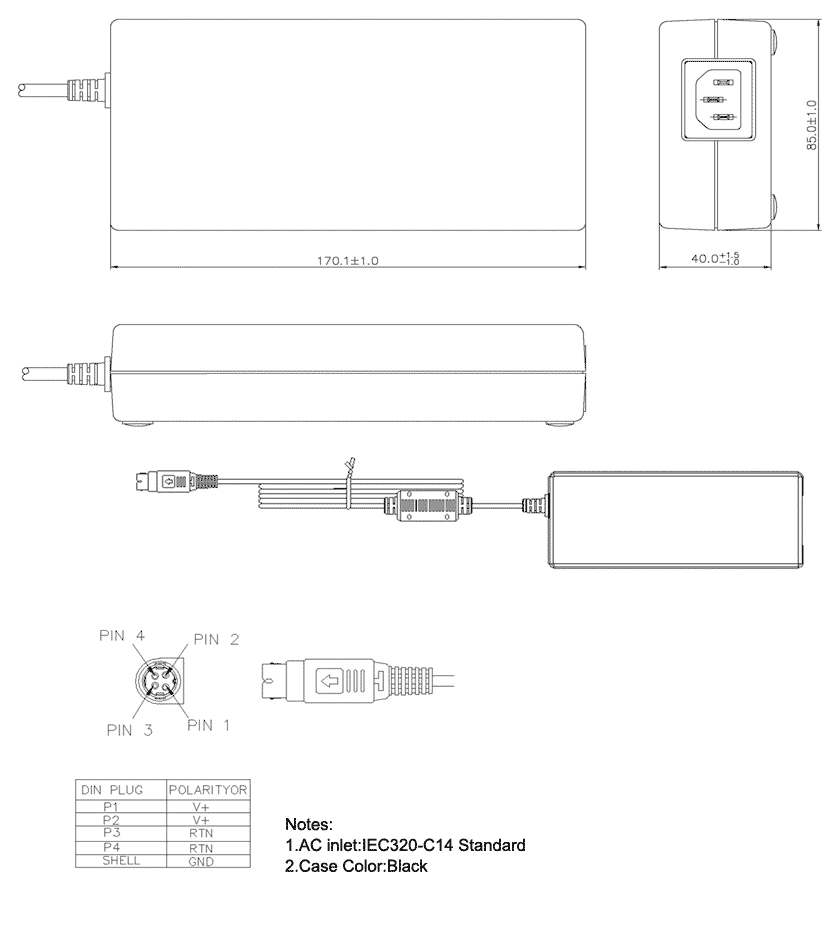

Mechanical Drawing

Uploaded on 22-Apr-2020

CB

Uploaded on 18-Oct-2023

CCC

Uploaded on 28-Dec-2023

CE & UKCA

Uploaded on 22-Jun-2021

FCC

Uploaded on 13-Dec-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

UL

Uploaded on 22-Apr-2020

Tech Specs

Tech Specs

Output Current
10A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
120W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5%
Load Regulation
± 5%
PARD
-
Start-up Time
3000ms @ 115Vac
Hold-up Time
20ms @ 115Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 50-100% load
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Peak Power
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
90-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
4A @ 115Vac,
2A @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
88.1% (typ.)
Inrush Current
50A @ 115Vac,
100A @ 230Vac (typ.)
Charging Time
-
Power Factor at 100% load
-
Leakage Current
0.1mA @ 275Vac NC,
0.3mA @ 275Vac SFC
Nominal Current
-
Total Harmonic Distortion
-
Power Dissipation
-
Efficiency @ 10% load
-
Input Voltage Phase
-
Case Chassis / Cover
PC
Indicator
-
Cooling System
-
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
1.1 Kg (2.43 lb)
Dimensions
170 x 85 x 40 mm
6.69” x 3.35” x 1.57”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
0°C to +40°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10-95% RH (Non-Condensing)
Shock Test (Non-Operating)
50G, 11ms, 3 shocks for each direction
Vibration (Non-Operating)
5-500Hz, 2.09Grms, 20 minute for each three axis
Storage Humidity
-
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Shock
-
Vibration
-
Acoustic Noise
-
Overvoltage
130% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)
Overload / Overcurrent
Hiccup Mode, (Non-Latching, Auto-Recovery)
Over Temperature
Hiccup Mode, (Non-Latching, Auto-Recovery)
Short Circuit
Hiccup Mode, (Non-Latching, Auto-Recovery)
Reverse Polarity Protection
-
Degree of Protection
IP40
Protection Against Shock
Class II with functional earth
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
1185 kHrs based on Telecordia SR-332
Expected Cap Life Time
-
Safety Certificate
-
Electrical Safety
IEC60950-1 (Ed.2,2005), IEC62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003
CE
In conformance with EN 60601-1 & EN 60601-1-2
Medical Safety
IEC 60601-1 CB report
EN 60601-1, CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI
ES 60601-1
Galvanic Isolation
Input to Output: 4000 Vac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
Medical Devices Regulations 2002(UK MDR 2002)
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
IEC 60950-1, IEC 62368-1, GB 4943.1, GB/T 9254.1, GB 17625.1
SIL3
-
Emission
EN/BS EN 55011, EN/BS EN 55032, FCC Title 47: Class B
Immunity
-
Harmonic Current Emissions
IEC61000-3-2: Meet Class A limit
Voltage Fluctuation and Flicker
IEC61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
