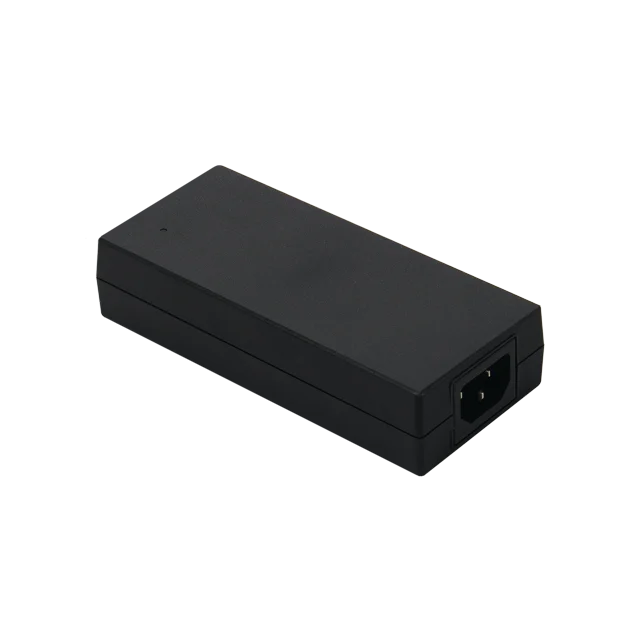

Delta MEA-090A12C 12V 81W 6.75A Adapter MEA Series

Model	Description
MEA-090A12C 6-A	C14, 4 Pin DIN
MEA-090A12C V-A	C14, tuning fork 90°

Model	Description
MEA-090A12C 6-A	C14, 4 Pin DIN
MEA-090A12C V-A	C14, tuning fork 90°

Download

Datasheet

Uploaded on 01-Dec-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 05-Jul-2024

Mechanical Drawing

Uploaded on 27-Oct-2022

.DXF

Uploaded on 27-Oct-2022

.STP

Uploaded on 16-Dec-2021

Certificates

Uploaded on 18-Oct-2023

CCC

Uploaded on 08-Dec-2021

CE & UKCA

Uploaded on 08-Dec-2021

PSE

Uploaded on 09-Dec-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 08-Dec-2021

TSCA

Uploaded on 15-Nov-2023

Uploaded on 08-Dec-2021

GUI Software

Tech Specs

Output Current

6.75A

Output Voltage

12V

Output Power

81W

Line Regulation

± 0.5%

Load Regulation

± 4.5%

Start-up Time

< 3000 ms @ 115 Vac & 230 Vac

Hold-up Time

20 ms @ 115 Vac & 230 Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-50% & 50-100% load; Slew rate 0.25 A/µs (@ 100 Hz, 50% Duty Cycle)

Ripple & Noise

Rise Time

< 50 ms @ 115 Vac & 230 Vac

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

1.5 A @ 115 Vac, 0.75 A @ 230 Vac

Input Power (Standby Mode)

0.15 W @ 115 Vac & 230 Vac

Inrush Current

50 A @ 115 Vac and 100 A @ 230 Vac

Leakage Current

0.1 mA @ 264 Vac NC1), 0.5 mA @ 264 Vac Single fault condition

Case Chassis / Cover PC
Indicator Green LED
Cooling System -
Input Terminal IEC 60320 C14 socket
Output Terminal Tuning Fork type: 5.5 x 2.5 x 11 mm, 90° (for MEA-090A□C V-A) 4 Pin Din type, 180° (for MEA-090A□C 6-A) Tuning Fork type: 5.5 x 2.5 x 11 mm, 180° (for MEA-090A□C W-A)
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.31 kg (0.68 lb)	Dimensions 135 x 62 x 32 mm 5.31” x 2.44” x 1.26”

Operating Temperature

-10°C to +60°C

Storage Temperature

-40°C to +85°C

Power De-rating

> 40°C de-rate power by 2.5% / °C

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50 G, 11 ms, 3 shocks for each direction

Vibration (Non-Operating)

5-500 Hz, 2.09 Grms, 20 minute for each three axis

Operating Altitude

Up to 5,000 meters (up to 16,400 feet or 106-54 kPa)

Overvoltage

150% max, Latch Mode

Overload / Overcurrent

180% max of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, (Non-Latching, Auto-Recovery)

Degree of Protection

IP22

Protection Against Shock

Class I with C14 socket

MTBF

> 1 million Hours based on Telecordia SR-332 (at 115Vac, Max. load and 25°C Ambient)

Expected Cap Life Time

5 years (50% load @ 115Vac, 25°C)

Electrical Safety

IEC 62368-1
IEC 60950-1
GB4943.1-2011, GB9254-2008, GB17625.1-2012
PSE J60950-1(H29)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

Medical Safety

IEC 60601-1 CB report, EN 60601-1
CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI ES60601-1

Galvanic Isolation

Input to Output : 4000 Vac
Input to PE3) : 1500 Vac
Output to PE3): 500 Vac

Material and Parts

RoHS Directive 2011/65/EU & EU 2015/863 Compliant

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016,
Medical Devices Regulations 2002 (UK MDR 2002)

ITE Safety

IEC 62368-1
IEC 60950-1
GB4943.1, GB9254, GB17625.1
PSE J60950-1(H29)

Emission

EN/BS EN 55011, EN/BS EN 55032 Class B
Compliance to FCC Title 47: Class B

Harmonic Current Emissions

IEC 61000-3-2 Meet Class A

(/3) Item(s) selected
