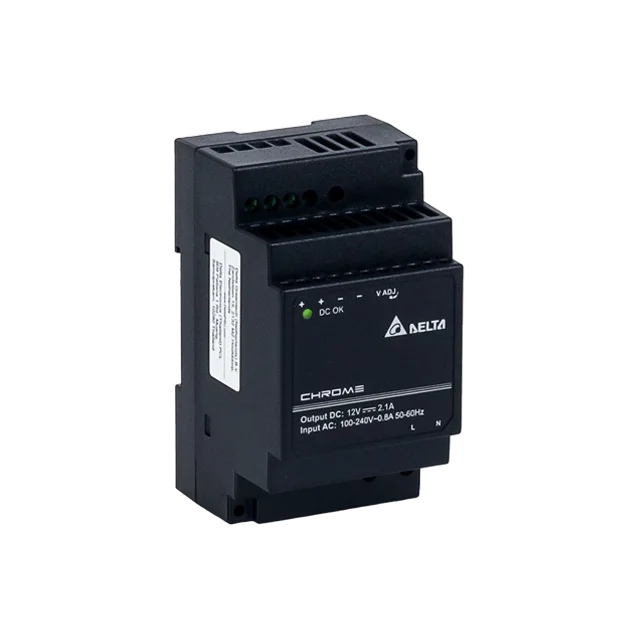

DRC-12V30W1AZ

DIN Rail

CHROME Series

DRC-12V30W1AZ

Output Voltage

12V

Output Power

25W

Output Current

2.1A

Input Voltage Range

90-264Vac

Dimensions (H x W x D)

91 x 53 x 55.6 mm

3.58” x 2.09” x 2.19”

Unit Weight

0.14 kg (0.31 lb)

Highlights & Features

Class II, Double Isolation (No Earth connection is required)
Universal AC input voltage range and full power up to 55°C
Power will not de-rate for the entire input voltage range
Efficiency > 85.0% @ 115Vac & 230Vac
Can be installed in compact cabinets
NEC Class 2 and Limited Power Source (LPS) approvals
Conforms to harmonic current IEC/EN 61000-3-2, Class A
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and UL508

** NRND **
DRC-12V30W1AZ

Recommended Model: DRC-12V030W1RZ

Optional Models

Model	Description
DRC-12V30W1AG	Grey plastic case

Applications

DIN Rail

CHROME Series

DRC-12V30W1AZ

Highlights & Features

Class II, Double Isolation (No Earth connection is required)
Universal AC input voltage range and full power up to 55°C
Power will not de-rate for the entire input voltage range
Efficiency > 85.0% @ 115Vac & 230Vac
Can be installed in compact cabinets
NEC Class 2 and Limited Power Source (LPS) approvals
Conforms to harmonic current IEC/EN 61000-3-2, Class A
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and UL508

** NRND **
DRC-12V30W1AZ

Recommended Model: DRC-12V030W1RZ

Output Voltage

12V

Output Power

25W

Output Current

2.1A

Input Voltage Range

90-264Vac

Dimensions

91 x 53 x 55.6 mm

3.58” x 2.09” x 2.19”

Unit Weight

0.14 kg (0.31 lb)

Applications

Optional Models

Model	Description
DRC-12V30W1AG	Grey plastic case

Download

Datasheet

Uploaded on 27-Apr-2021

Manual

Uploaded on 25-May-2021


Uploaded on 20-Jun-2025

Mechanical Drawing

Uploaded on 25-Dec-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 25-Dec-2020

CE & UKCA

Uploaded on 27-Apr-2021

EAC

Uploaded on 28-Apr-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 25-Dec-2020

Uploaded on 11-Jan-2021

GUI Software

Tech Specs

Output Current

2.1A

Output Voltage

12V

Output Voltage Adjustment Range

11.5-14.5Vdc

Output Power

25W

Line Regulation

< 0.5% (@ 90-264Vac input, 100% load)

Load Regulation

< 1.0% (@ 90-264Vac input, 0-100% load)

PARD

< 100mVpp

Start-up Time

< 2,000ms @ nominal input (100% load)

Hold-up Time

> 25ms @ 115Vac,
> 60ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 90-264Vac input, 10-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz)

Start-up with Capacitive Loads

3,000µF Max

Rise Time

< 70ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

125-375Vdc

Input Current

< 0.80A @ 115Vac,
< 0.60A @ 230Vac

Efficiency at 100% load

> 85.0% @ 115Vac & 230Vac

Inrush Current

< 25A @ 115Vac,
< 50A @ 230Vac

Leakage Current

< 0.25mA @ 240Vac

Power Dissipation

0% load: < 0.3W @ 115Vac & 230Vac
100% load: < 4.4W @ 115Vac & 230Vac

Case Chassis / Cover Plastic
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal 2 Pins (Rated 300V/25A)
Output Terminal 4 Pins (Rated 300V/25A)
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25dBA
Input/Output Terminal -
Signal -
Mounting Rail Standard TS35 DIN Rail in accordance with EN 60715
Wire Input / Output: AWG 22-12
Protection Structure -
Terminal -
Unit Weight 0.14 kg (0.31 lb)	Dimensions 91 x 53 x 55.6 mm 3.58” x 2.09” x 2.19”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak);
10 min per cycle, 60 min for all X, Y, Z directions

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 4G for a duration of 22ms,
3 shocks for each 3 directions, 9 times in total

Operating Temperature

-25°C to +71°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 55°C de-rate power by 2.5% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Operating Altitude

0 to 2,000 Meters (6,560 ft.)

Pollution Degree

Over Voltage Category

Overvoltage

< 17.4V, SELV Output, Latch Mode

Overload / Overcurrent

> 130% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

> 75°C Surrounding Air Temperature @ 100% load, Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class II (No Primary Earth connection is required)

MTBF

> 500,000 hrs. as per Telcordia SR-332 (I/P: 100Vac, O/P: 100% load, Ta: 35°C)

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1, Limited Power Source (LPS)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

Safety Entry Low Voltage

SELV (EN 60950)

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016

Emission

(CE & RE)
Generic Standards: CISPR 32, EN 55032, FCC Title 47: Class B

Immunity

Generic Standards: EN 55024

Harmonic Current Emissions

IEC/EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3
