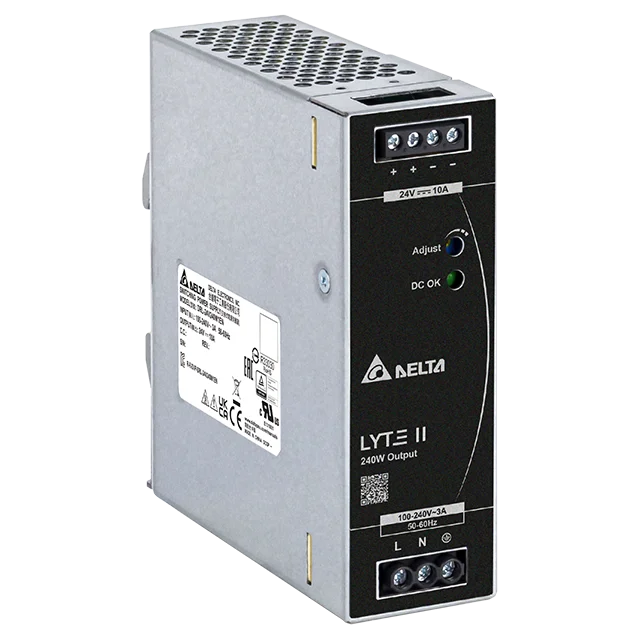

Delta DRL-24V240W1EN 24V 240W 10A DIN Rail LYTE II Series

Model	Description
DRL-24V240W1ENA	Conformal coating

Model	Description
DRL-24V240W1ENA	Conformal coating

Download

Datasheet

Uploaded on 08-Aug-2024

Manual

Uploaded on 02-Feb-2024


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 24-Sep-2020

.DXF

Uploaded on 08-Jun-2021

.STP

Uploaded on 23-Sep-2020

Certificates

BIS

Uploaded on 08-Aug-2024

BSMI

Uploaded on 30-Apr-2021

Uploaded on 30-Jan-2024

CCC

Uploaded on 30-Jan-2024

CE & UKCA

Uploaded on 08-Jun-2021

EAC

Uploaded on 30-Jan-2024

Uploaded on 25-Sep-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 30-Jan-2024

GUI Software

Tech Specs

Output Current

10A

Output Voltage

24V

Output Voltage Range

21.6-26.4Vdc

Output Voltage Adjustment Range

21.6-26.4Vdc

Output Power

240W

Line Regulation

± 0.5% @ 115Vac & 230Vac

Load Regulation

± 0.5%

PARD

< 150mVpp @ 0°C to +70°C
< 450mVpp @ -30°C to 0°C

Start-up Time

500ms typ. @ 115Vac & 230Vac

Hold-up Time

20ms typ. @ 115Vac (100% load)
20ms typ. @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115Vac & 230Vac input, 10-100% load (Slew Rate: 2.5A/μS, 50% duty cycle @ 5Hz & 10KHz)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

30ms typ. @ 115Vac & 230Vac

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

2.5A typ. @ 115Vac, 1.3A typ. @ 230Vac

Efficiency at 100% load

90.0% typ. @ 230Vac

Inrush Current

40A typ. @ 230Vac

Power Factor at 100% load

> 0.95 @ 115Vac & 230Vac

Leakage Current

< 0.75mA @ 240Vac

Case Chassis / Cover Aluminum / SGCC
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal 3 Pins (Rated 300V/30A)
Output Terminal 4 Pins (Rated 300V/20A)
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25dBA
Input/Output Terminal -
Signal -
Mounting Rail Standard TS35 DIN Rail in accordance with EN 60715
Wire -
Protection Structure -
Terminal -
Unit Weight 0.62 kg (1.37 lb)	Dimensions 123.6 x 40 x 116.8 mm 4.87” x 1.57” x 4.60”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6 m/s² (2G peak); 10 min per cycle, 60 min for X direction

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for duration of 11ms; 1 time in X axis

Operating Temperature

-30°C to +70°C (-40°C Cold Start)

Storage Temperature

-40°C to +85°C

Power De-rating

> 40°C de-rate power by 1.67 % / °C @115Vac
> 50°C de-rate power by 2.5 % / °C @230Vac

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for duration of 11ms; 3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

<33.6V, SELV Output, Latch Mode

Overload / Overcurrent

105 - 150% of rated load current, Auto-recovery
Continuous current limit Mode (Vo>80%)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

Internal Fuse

T4 A / 250 V

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Electrical Safety

CB scheme: IEC 62368-1, IEC 61010-1 & -2-201
TUV Bauart: EN 62368-1, EN 61010-1 & -2-201
UL/cUL: UL 62368-1, UL 61010-1 & -2-201
CCC: GB4943.1
BSMI: CNS14336-1
EAC: TP TC 004/2011
KC: K 60950-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 61000-6-4, AS/NZS CISPR32, EN/BS EN 61204-3, KN 32
Compliance to FCC Title 47, EN/BS EN 61000-6-3: Class B

Immunity

EN/BS EN 55035, KN 35, EN/BS EN 61000-6-2
Compliance to EN/BS EN 61000-6-1

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

ESD Immunity

IEC 61000-4-2

Radiated Immunity

IEC 61000-4-3

EFT

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted Immunity

IEC 61000-4-6

Magnetic Field

IEC 61000-4-8

Voltage Dips

IEC 61000-4-11

Component Power Supply for General Use

EN/BS EN 61204-3
