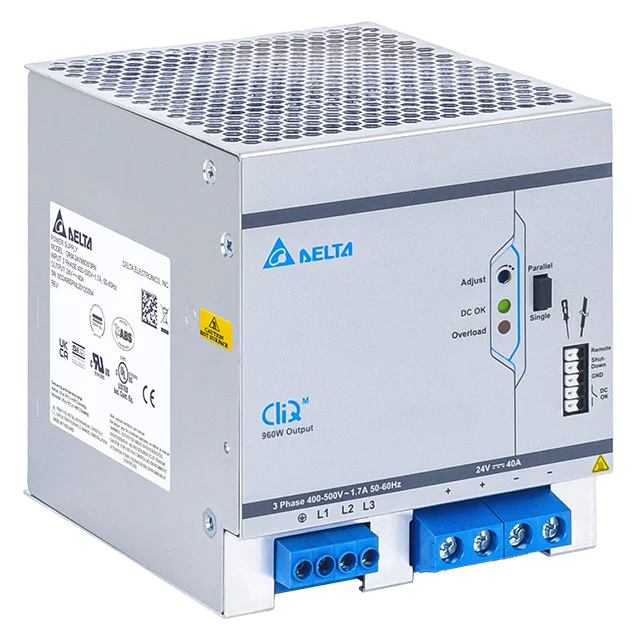

Delta DRM-24V960W3PN 24V 960W 40A DIN Rail CliQ M Series

Download

Datasheet

Uploaded on 01-Nov-2021

Manual

Uploaded on 21-Sep-2020


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 04-Sep-2020

.DXF

Uploaded on 04-Sep-2020

.STP

Uploaded on 04-Sep-2020

Certificates

ABS

Uploaded on 04-Sep-2020

Uploaded on 23-May-2022

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 04-Sep-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 01-Nov-2021

Uploaded on 23-May-2022

GUI Software

Tech Specs

Output Current

40A

Output Voltage

24V

Output Voltage Range

24-28Vdc

Output Voltage Adjustment Range

24-28Vdc

Output Power

960W

Line Regulation

10mV (@ 3 x 320-575Vac input, 100% load)

Load Regulation

80mV (@ 3 x 320-575Vac input, 0-100% load)

PARD

100mVpp Max.

Start-up Time

1,000ms @ 24V, 40A

Hold-up Time

50.4ms @ 24V, 20A

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 1.5-100% load

Start-up with Capacitive Loads

40,000μF

Rise Time

65ms

Power Boost Duration

5 seconds Typ.
7 seconds Max.

Power Boost Recovery Time

17 seconds Typ.

Nominal Input Voltage

3 x 400-500Vac

Input Voltage Range

3 x 320-575Vac (3-Phase) or 2 x 380-575Vac (2-Phase)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

450-800Vdc

Input Current

1.53A @ 24V, 40A

Efficiency at 100% load

95.75% @ 24V, 40A

Inrush Current

14.2A

Power Factor at 100% load

0.95 @ 24V, 40A

Leakage Current

< 0.62mA / 0.64mA @ 3 x400Vac, 50Hz, TN/TT / IT system

Case Chassis / Cover Aluminium
Indicator Green LED DC OK Red LED Overload
Cooling System Convection
Input Terminal 4 Pins (Rated 600V/35A)
Output Terminal 4 Pins (Rated 300V/65A)
Signal Terminal 5 Pins (Rated 300V/12A)
Noise Sound Pressure Level (SPL) < 25dBA
Input/Output Terminal -
Signal -
Mounting Rail Standard TS35 DIN Rail in accordance with EN 60715
Wire -
Protection Structure -
Terminal -
Unit Weight 2.3kg (5.07 lb)	Dimensions 124 x 110 x 128.6 mm 4.88” x 4.33” x 5.06”

Operating Temperature

-25°C to +70°C (Cold start -40°C)

Storage Temperature

-40°C to +85°C

Power De-rating

Vertical Mounting: 3-Phase : > 60°C de-rate power by 2.5% / °C 2-Phase: > 50°C de-rate power by 2.5% / °C
Horizontal Mounting : 3-Phase: > 40°C de-rate power by 1.67% / °C 2-Phase: > 40°C de-rate power by 2% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

Operating Altitude

OVC III : 0 to 2,500 Meters (8,200 ft.)
OVC II : 2,500 to 6,000 Meters (19,680 ft.), 0 to 5,000 Meters (16,400 ft.), 0 to 3,000 Meters (9,840 ft.)

Pollution Degree

Bump Test (Operating)

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

Overvoltage

< 32V, SELV Output, Hiccup Mode, Non-Latching (Auto- Recovery)

Overload / Overcurrent

150-200% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)

Over Temperature

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

MTBF

568,300 hrs. as per Telcordia SR-332
I/P: 3 x 400Vac, O/P: 24V, 40A, Ta: 25°C

Expected Cap Life Time

368,800 hrs. @ I/P: 3 x 400Vac, O/P: 24V, 20A, Ta: 25°C

Electrical Safety

SIQ Bauart: EN 62368-1, EN 61558-1, EN 61558-2-16, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 61558-1, IEC 61558-2-16, IEC 61010-1, IEC 61010-2-201
UKCA: BS EN 62368-1, BS EN 61558-1, BS EN 61558-2-16, BS EN 61010-1, BS EN 61010-2-201

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

Electrical Equipments of Machines

EN/BS EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations

IEC/EN/BS EN 62477-1 / IEC 62103

Safety Entry Low Voltage

SELV (IEC 60950-1)

Maritime

DNV GL: Germanischer Lloyd classified
ABS: American Bureau for Shipping PDA
Environmental category: C, EMC2

Isolation Resistance

> 5MOhm Input to Output, 500Vdc

PE Resistance

< 0.1Ohm

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3 CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 55035, EN 61000-6-2

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Component Power Supply for General Use

EN/BS EN 61204-3
