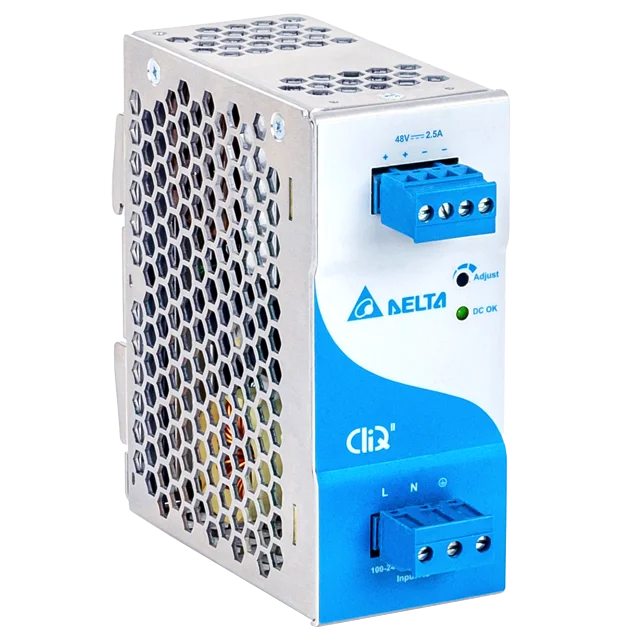

Delta DRP048V120W1BN?optional_model=DRP048V120W1BN 48V 120W 2.5A DIN Rail CliQ II Series

Model	Description
DRP048V120W1BN	Without Class I, Div 2 and ATEX

Model	Description
DRP048V120W1BN	Without Class I, Div 2 and ATEX

Download

Datasheet

Uploaded on 06-Oct-2021

Manual

Uploaded on 04-Dec-2020


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 04-Dec-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

ATEX

Uploaded on 17-Sep-2021

Uploaded on 04-Dec-2020

CCC

Uploaded on 02-Jun-2020

Uploaded on 16-Aug-2022

CSA

Uploaded on 04-Dec-2020

EAC

Uploaded on 22-Apr-2020

Hazloc

Uploaded on 15-Dec-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 04-Dec-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 13-Jul-2021

Uploaded on 04-Dec-2020

GUI Software

Tech Specs

Output Current

2.5A

Output Voltage

48V

Output Voltage Adjustment Range

48-56Vdc

Output Power

120W

Line Regulation

< 0.5% (@ 85-264Vac input, 100% load)

Load Regulation

< 1.0% (@ 85-264Vac input, 0-100% load)

PARD

< 200mVpp

Start-up Time

< 2,000ms @ nominal input (100% load)

Hold-up Time

> 20ms @ 115Vac,
> 50ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 2% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz)

Start-up with Capacitive Loads

6,500μF Max

Rise Time

< 200ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

120-375Vdc

Input Current

< 2.20A @ 115Vac,
< 1.10A @ 230Vac

Efficiency at 100% load

> 90.0% @ 115Vac,
> 91.0% @ 230Vac

Inrush Current

< 35A @ 115Vac & 230Vac

Power Factor at 100% load

> 0.99 @ 115Vac,
> 0.93 @ 230Vac

Leakage Current

< 1mA @ 240Vac

Power Dissipation

0% load: < 2.5W @ 115Vac, < 3.5W @ 230Vac
100% load: < 13.2W @ 115Vac, < 11.8W @ 230Vac

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal 3 Pins (Rated 300V/15A)
Output Terminal 4 Pins (Rated 300V/15A)
Signal Terminal -
Noise Sound Pressure Level (SPL) < 40dBA
Input/Output Terminal -
Signal -
Mounting Rail Standard TS35 DIN Rail in accordance with EN 60715
Wire Input / Output: AWG 20-12
Protection Structure -
Terminal -
Unit Weight 0.72 kg (1.59 lb)	Dimensions 121 x 50 x 123.1 mm 4.76” x 1.97” x 4.85”

Operating Temperature

-25°C to +80°C (Cold Start at -40°C)

Storage Temperature

-40°C to +85°C

Power De-rating

Vertical: > 50°C de-rate power by 2.5% / °C
Horizontal: > 50°C de-rate power by 2.5% / °C, > 70°C de-rate power by 3.5% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis
for all X, Y, Z direction

Operating Altitude

0 to 2,500 Meters (8,200 ft.)

Pollution Degree

Bump Test (Operating)

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

Over Voltage Category

III
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)

Overvoltage

< 57V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

> 150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 800,000 hrs. as per Telcordia SR-332 (I/P: 115Vac, O/P: 100% load, Ta: 25°C)

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
UKCA: BS EN 62368-1
CCC: GB9254, GB17625.1 and GB4943.1 (仅适用于海拔 2000m 以下地区安全使用)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
For DRP048V120W1BA: In conformance with Equipment for explosive atmospheres (ATEX) directive 2014/34/EU

Galvanic Isolation

Input to Output 4.0 KVac
Input to Ground 1.5 KVac
Output to Ground 1.5 KVac

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA: CSA C22.2 No. 107.1-01 (File No. 181564)

Hazardous Location / ATEX

(For DRP048V120W1BA)
cCSAus: CSA C22.2 No. 213-M1987 and ANSI / ISA 12.12.01:2011 [Class I, Division 2, Group A, B, C, D T4, Ta= -25°C to +80°C (> +50°C derating)]

ATEX: EN 60079-0:2009, EN 60079-15:2010 [II 3G Ex nA nC IIC T4 Gc, Ta= -25°C to +80°C (> +50°C derating)]
Certificate No. EPS 12 ATEX 1 491 X

Electrical Equipments of Machines

EN/BS EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations

IEC/EN/BS EN 62477-1 / IEC 62103

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

(CE & RE)
Generic Standards: CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Component Power Supply for General Use

EN/BS EN 61204-3
