Delta DRS-24V100W1AZ 24V 96W 4A DIN Rail SYNC Series

Model	Description
DRS-24V100W1AR	Without DC OK contact

Model	Description
DRS-24V100W1AR	Without DC OK contact

Download

Datasheet

Uploaded on 22-Dec-2021

Manual

Uploaded on 23-Sep-2021


Uploaded on 05-Jun-2024

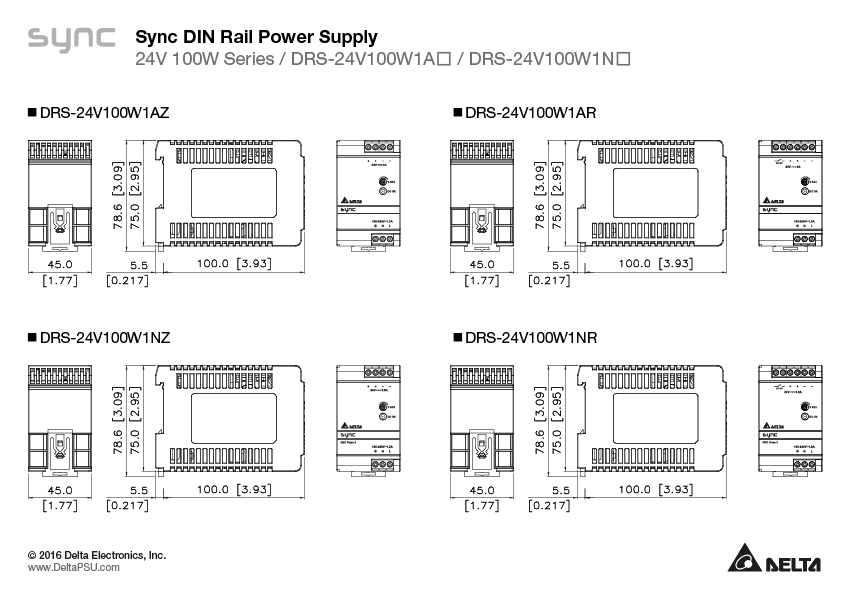

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 09-Apr-2024

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

UKCA

Uploaded on 22-Dec-2021

Uploaded on 09-Apr-2024

GUI Software

Tech Specs

Output Current

Output Voltage

24V

Output Voltage Adjustment Range

24-28Vdc

Output Power

96W

Line Regulation

< 0.5% (@ 85-264Vac, 100% load)

Load Regulation

< 1.0% (@ 85-264Vac, 0-100% load)

PARD

< 50mVpp @ > 0°C to 70°C
< 100mVpp @ 0°C to -20°C

Start-up Time

< 2,500ms @ 115Vac (100% load)
< 1,500ms @ 230Vac (100% load)

Hold-up Time

> 50ms @ 115Vac & 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

Start-up with Capacitive Loads

3,000μF Max

Rise Time

< 100ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

120-375Vdc

Input Current

< 1.2A@115Vac, < 0.6A @ 230Vac

Efficiency at 100% load

> 89%@ 115Vac & 230Vac

Inrush Current

< 25A @ 115Vac, < 40A@ 230Vac

Power Factor at 100% load

> 0.97 @ 115Vac, > 0.9 @ 230Vac

Leakage Current

< 0.5 mA @ 264 Vac

Power Dissipation

0% load: < 0.4W @ 115Vac & 230Vac
100% load: < 11W @ 115Vac & 230Vac

Case Chassis / Cover Plastic
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.325 kg (0.72 lb)	Dimensions 75 x 45 x 100 mm 2.95” x 1.77” x 3.94”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis

Operating Temperature

-20°C to +70°C (Cold start at -40°C@ 40% load)

Storage Temperature

-40°C to +85°C

Power De-rating

-10°C to -20°C de-rate power by 2% / °C
> 55°C de-rate power by 3.33% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

Operating Altitude

0 to 2,000 Meters (6,560 ft.)

Pollution Degree

Overvoltage

< 34.8V, SELV Output, Latch Mode

Overload / Overcurrent

105~140% of rated load current, Fold Forward Mode (current rises, voltage drops), Auto-recovery when the fault is removed

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with PE connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C
121,000 hrs. as per MIL-HDBK-217F
I/P: 115Vac & 230Vac,O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115ac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1, UL 62368-1, CSA C22.2 No. 60950-1 (File No. E191395)
CB Scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 3.0 KVac
Output to Ground: 0.5 KVac

Industrial Control Equipment

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315335)

Safety Entry Low Voltage

SELV (IEC 60950)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3, EN/BS EN 61000-6-4
CISPR 32, EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Component Power Supply for General Use

EN 61204-3
