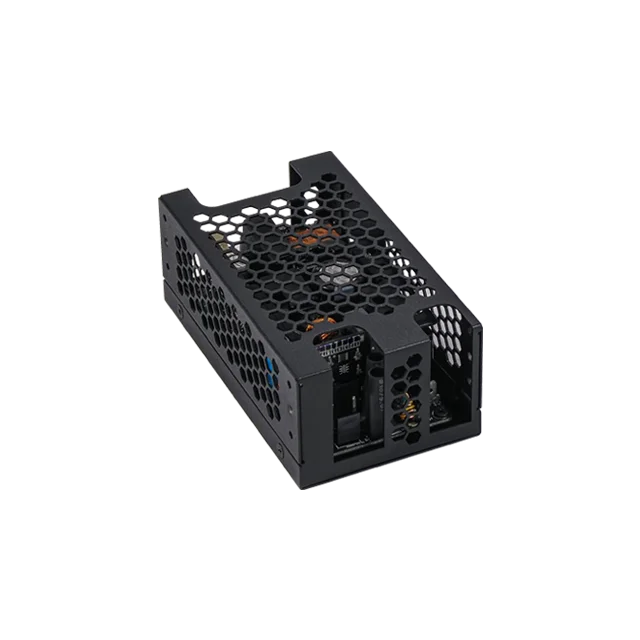

Delta MDS-200ADB24 AA 24V 200W 8.33A Enclosed MDS Enclosed Series

Download

Datasheet

Uploaded on 30-Nov-2023


Uploaded on 28-Mar-2025

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 18-Oct-2023

CE & UKCA

Uploaded on 13-Aug-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 27-Jan-2021

GUI Software

Tech Specs

Output Current

8.33A

Output Voltage

24V

Output Power

200W

Line Regulation

±0.5%

Load Regulation

±1%

Start-up Time

2000ms @ 115Vac

Hold-up Time

12ms@115Vac, tested with 120W load

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ with 50-100% load

Rise Time

100ms

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

2.5A

Efficiency at 100% load

92% @ 115Vac/60Hz
93% @ 230Vac/50Hz, Reference

Inrush Current

60A@230Vac, cold start

Power Factor at 100% load

0.95 @ 115V/50Hz, 230V/50Hz, full load

Case Chassis / Cover Enclosed cover(SPCC)
Indicator -
Cooling System -
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.345 kg (0.76 lb)	Dimensions 113.9 x 64.7 x 44.7 mm 4.48” x 2.55” x 1.76”

Vibration (Operating)

5-500Hz, 2Grms, 15 minute for each three axis

Operating Temperature

Absolute Max
-10°C to+70°C, supported powerlinearly de-rate from 50°C to 50% ratedup to 70°C
Note: see power de-rating curve

Storage Temperature

-40°C to +85°C

Power De-rating

Linearly derate from 100% load at 50°C, to 50% load at 70°C (2.5%/ degree centigrade)

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

50G, 11ms, 3 shocks for each direction

Operating Altitude

5,000 meters (16402 feet)

Overvoltage

125% of rated voltage, Latch Mode

Overload / Overcurrent

Main output 160% of rated current
Hiccup Mode(Non-Latching, Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, (Non-Latching, Auto-Recovery)

MTBF

800 Khrs based on Telecordia SR-332

Expected Cap Life Time

Operating life at 115Vac, 110W, ambient 25 °C, Convection Air Flow: 26,280Hrs

Safety Certificate

IEC60950-1, IEC62368-1 CB report
TUV60950-1
UL60950-1+CAN/CSA60950-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1L 2013 + A12: 2014 & EN 60601-1-2: 2015

Medical Safety

IEC 60601-1 CB report
TUV EN 60601-1
UL 60601-1+CAN/CSA 60601-1

Galvanic Isolation

Input to/Output (2XMOPP): 4000 Vac
Input to/Ground(1XMOPP): 1500Vac(PSU can support PoE applications with Primary to FG 2500Vac test.)
Output to/Ground(1XMOPP): 1500Vac ( Type BF application rated)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)

ITE Safety

IEC 60950-1, IEC 62368-1 CB report
TUV 60950-1
UL 60950-1+CAN/CSA 60950-1

Emission

Class I model: EN/BS EN 55011, EN/BS EN 55022, FCC Title 47: Class B

Harmonic Current Emissions

IEC 61000-3-2 Meet Class D limit

Voltage Fluctuation and Flicker

IEC 61000-3-3
