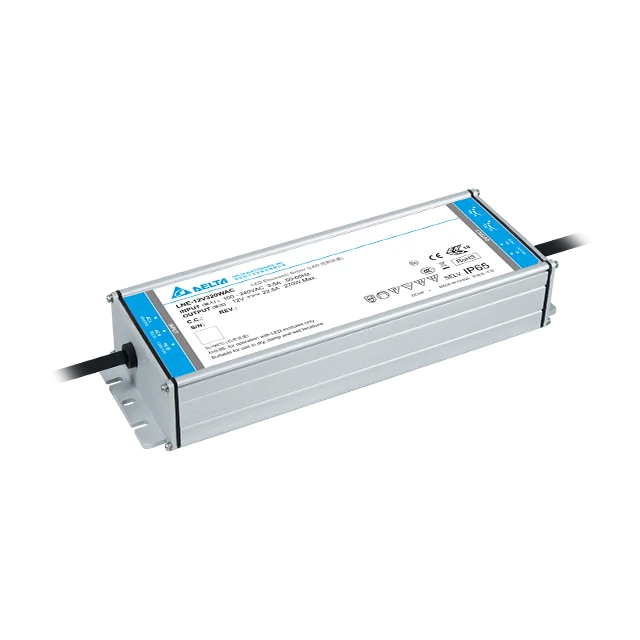

LNE-12V320WACA

LED Driver

LNE Series

LNE-12V320WACA

Output Voltage

12V

Output Power

270W

Output Current

22.5A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

252 x 90 x 43.8 mm

9.92” x 3.54” x 1.72”

Unit Weight

1.70 kg (3.75 lb)

Highlights & Features

International AC voltage options
Up to 91.0% efficiency
6kV common mode & 4kV differential mode surge immunity
Active PFC. Meets IEC/EN 61000-3-2, Class C
Adjustable voltage & current; dimming options available
IP65 or IP67 options for indoor and outdoor applications

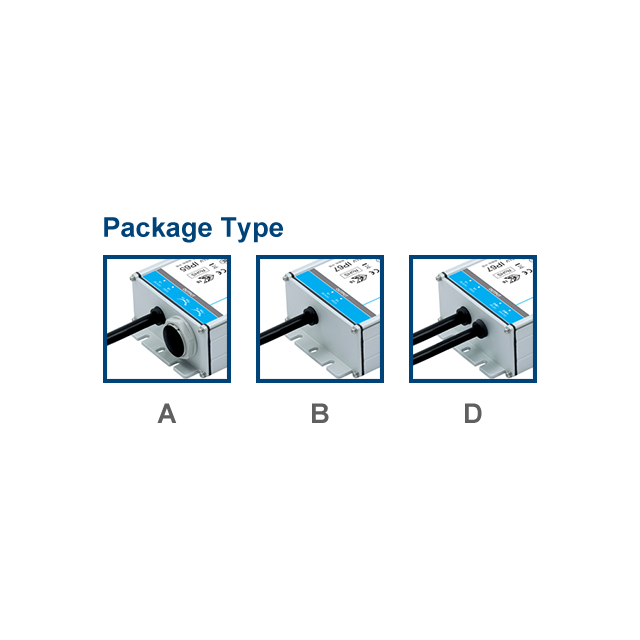

Optional Models

Model	Description
LNE-12V320WBCA	IP67, dimming cable & potentiometers, ENEC/CE/CCC approval
LNE-12V320WDCA	IP67, dimming cable, ENEC/CE/CCC approval

Applications

Download

Datasheet

Uploaded on 09-Jun-2020

Manual

Uploaded on 22-Apr-2020


Uploaded on 28-Mar-2025

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 22-Apr-2020

CCC

Uploaded on 22-Apr-2020

ENEC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

GUI Software

Tech Specs

Output Current

22.5A

Output Voltage

12V

Output Voltage Adjustment Range

10.8-13.5V

Output Power

270W

Output Current Adjustment Range

11.25-22.5A

Line Regulation

± 0.5% (@ 90-264Vac input)

Load Regulation

± 2.0% (@ 90-264Vac input, 0-95% load)

PARD

< 150mVpp

Start-up Time

< 1000ms @ 115Vac
< 500ms @ 230Vac

Hold-up Time

16ms typ. @ 115Vac & 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-90% load , @ 115Vac & 230Vac (Slew Rate: 0.1A/µS)

LED System Voltage Range in CC Mode

6-12Vdc

Rise Time

< 50ms @ 115Vac & 230Vac

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

3.50A max. @ 115Vac,
1.65A max. @ 230Vac

Efficiency at 100% load

89.5% typ. @ 115Vac, 90.5% typ. @ 230Vac

Inrush Current

65A typ. @ 230Vac

Power Factor at 100% load

0.98 typ. @ 115Vac,
0.95 typ. @ 230Vac

Leakage Current

< 0.75mA @ 230Vac

Total Harmonic Distortion

< 20% @ 115Vac/60 Hz & 230Vac/50 Hz (≥ 70% load)

Power Dissipation

< 0.64W @ 230Vac, at 0% load

Case Chassis / Cover Aluminium
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 1.70 kg (3.75 lb)	Dimensions 252 x 90 x 43.8 mm 9.92” x 3.54” x 1.72”

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C (Label face down mounting orientation)
> 60°C de-rate power by 4% / °C (Other mounting orientations)
< 100Vac de-rate power by 2% / Vac

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G);
20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 3,000 Meters (9,840 ft.)

Pollution Degree

Overvoltage

13.8-16.8V, Latch Mode

Overload / Overcurrent

95-108% of rated load current, constant current limit, Auto-Recovery when the fault is removed

Over Temperature

Hiccup Mode, Auto-Recovery when the fault is removed

Short Circuit

Constant current limit, Auto-Recovery when the fault is removed

Degree of Protection

IP65 (LNE-☐V320W A☐A)
IP67 (LNE-☐V320W B☐A and LNE-☐V320W D☐A)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

7 years (I/P: 115Vac & 230Vac, O/P: 100% load @ T case (tc) ≤ 75°C)

Electrical Safety

CB scheme to IEC 61347-1, IEC 61347-2-13
ENEC to EN 61347-1, EN 61347-2-13, EN 62384
CCC to GB19510.1, GB19510.14
UL/cUL recognized: UL 8750 and CAN/CSA C22.2 No. 60950-1 (Safety approval and dry, damp, wet ratings)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.85kVac
Input to Ground: 2.0kVac
Output to Ground: 1.5kVac

Material and Parts

RoHS Directive 2011/65/EU Compliant

Emission

(CE & RE)
CISPR 15, EN 55015, GB17743
Compliance to CISPR 22, EN 55022, FCC Title 47: Class B

Immunity

EN 61547, Compliance to EN 55024

Harmonic Current Emissions

IEC/EN 61000-3-2, Class C; GB17625.1

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3
