USCT-080210GA

LED Driver

USCT LINEAR Series

USCT-080210GA

Output Voltage

20-54V

Output Power

80W

Output Current

0.7-2.1A

Input Voltage Range

108-305Vac

Dimensions (L x W x H)

360 x 30.0 x 25.4 mm

14.17” x 1.18” x 1.00”

Unit Weight

0.56 kg (1.23 lb)

Highlights & Features

Constant current design
Universal input voltage 120-277Vac
Class 2 Output
Up to 90% efficiency for 80W model
Programmable output current by DELTA interface
Min. dim 1% of 0-10V / Resistor Dimming methods
Dry and Damp location rated
Linear type design for indoor and office lighting applications

Applications

Tech Specs

Output Current

0.7-2.1A

Output Voltage

20-54V

Output Voltage Range

20-54Vdc

Output Power

80W

Line Regulation

± 2%

Load Regulation

± 5%

Start-up Time

< 1000ms @ 120-277Vac

Rise Time

< 50ms @ 120-277Vac

Nominal Input Voltage

120-277Vac

Input Voltage Range

108-305Vac

Input Frequency Range

47-63Hz

Input Current

0.77A @ 120-277Vac

Efficiency at 100% load

89.0% typ @120Vac
90.0% typ @277Vac

Power Factor at 100% load

> 0.95 @ 120-277Vac full load

Leakage Current

< 0.7mA @ 277Vac

Total Harmonic Distortion

<10% @ 120-277Vac full load

Case Chassis / Cover Metal sheet
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) <24dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire Input connector : Terminal, 3-pole (Line/Neutral/PE) Output connector :Terminal, 6-pole (LED+/LED-/GND/PRG_NTC/DIM-/DIM+), Terminal, 5-pole (LED+/GND/PRG_NTC/DIM-/DIM+)
Protection Structure -
Terminal -
Unit Weight 0.56 kg (1.23 lb)	Dimensions 360 x 30.0 x 25.4 mm 14.17” x 1.18” x 1.00”

Operating Temperature

-30°C to +50°C

Storage Temperature

-30°C to +85°C

Operating Humidity

10 to 60% RH (Non-Condensing)

Storage Humidity

10 to 95%RN (Non-condensing)

Overvoltage

Max. 60V, Auto-Recovery when the fault is removed

Over Temperature

Auto-Recovery when the fault is removed

Short Circuit

Auto-Recovery when the fault is removed

MTBF

500,000 hrs. as per Telcordia SR-332 (ta: +50°C)

Expected Cap Life Time

50,000 hrs. @ lifetime case temperature

Electrical Safety

UL 8750, Class P, type “HL”. Output meet class 2 of UL1310

Material and Parts

RoHS Directive 2011/65/EU Compliant

Emission

Compliance to 47 CFR FCC Part 15, Subpart B, Class A
Compliance to CAN ICES-005(A) / NMB-005(A)

Surge

ANSI C62.41-Category A1 with a 2.5kV/100kA ring wave

(/3) Item(s) selected

USCT-080210GA

LED Driver

USCT LINEAR Series

USCT-080210GA

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

Unit Weight

Highlights & Features

Applications

USCT-080210GA

USCT-080210GA

LED Driver

USCT LINEAR Series

USCT-080210GA

Highlights & Features

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions

Unit Weight

Applications

Download

Download

Tech Specs

Tech Specs

Looking for support for this product?

Looking for support for this product?

Related Products

EUCI-170105GLB1

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

170.0 x 100.0 x 40.0 mm

6.69” x 3.94” x 1.57”

USVI-020024FR

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

132 x 32 x 25.4 mm

5.20” x 1.26” x 1.00”

USCT-040105LA

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

280 x 30 x 25.4 mm

11.02” x 1.18” x 1.00”

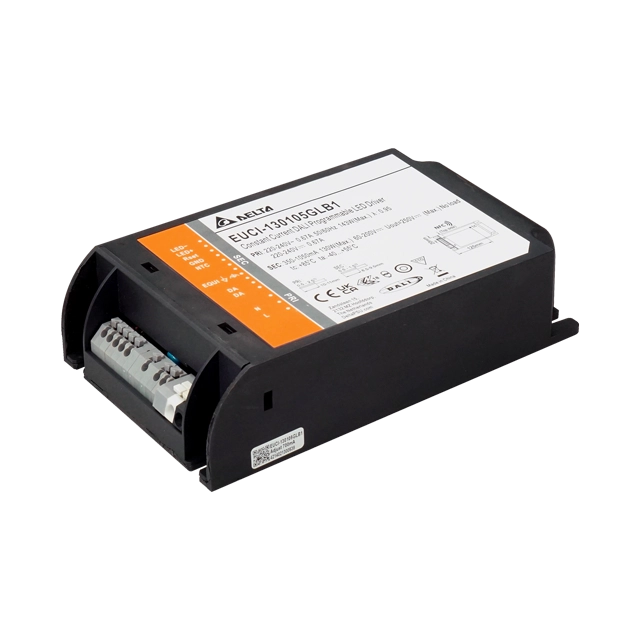

EUCI-130105GIA
