PJ-12V15W

Open Frame

PJ Series

PJ-12V15W

Output Voltage

12V

Output Power

15.6W

Output Current

1.3A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

87.5 x 50 x 22mm (Open Frame)
107.5 x 60 x 32 mm (Enclosed)
3.44" x 1.96" x 0.86" (Open Frame)
4.23" x 2.36" x 1.25" (Enclosed)

Unit Weight

0.06 kg (Open Frame)
0.15 kg (Enclosed) (0.13 lb)

Highlights & Features
  • Universal AC input voltage range
  • Low Inrush Current / Low Leakage Current
  • High efficiency
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


Model Description
PJ-12V15WBNA Open Frame
PJ-12V15WLNA L Frame
PJ-12V15WCNA Enclosed
Applications


PJ-12V15W
PJ-12V15W

Open Frame

PJ Series

PJ-12V15W

Highlights & Features
  • Universal AC input voltage range
  • Low Inrush Current / Low Leakage Current
  • High efficiency
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


Output Voltage

12V

Output Power

15.6W

Output Current

1.3A

Input Voltage Range

85-264Vac

Dimensions

87.5 x 50 x 22mm (Open Frame)
107.5 x 60 x 32 mm (Enclosed)
3.44" x 1.96" x 0.86" (Open Frame)
4.23" x 2.36" x 1.25" (Enclosed)

Unit Weight

0.06 kg (Open Frame)
0.15 kg (Enclosed) (0.13 lb)

Applications
Model Description
PJ-12V15WBNA Open Frame
PJ-12V15WLNA L Frame
PJ-12V15WCNA Enclosed

Download

Download

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

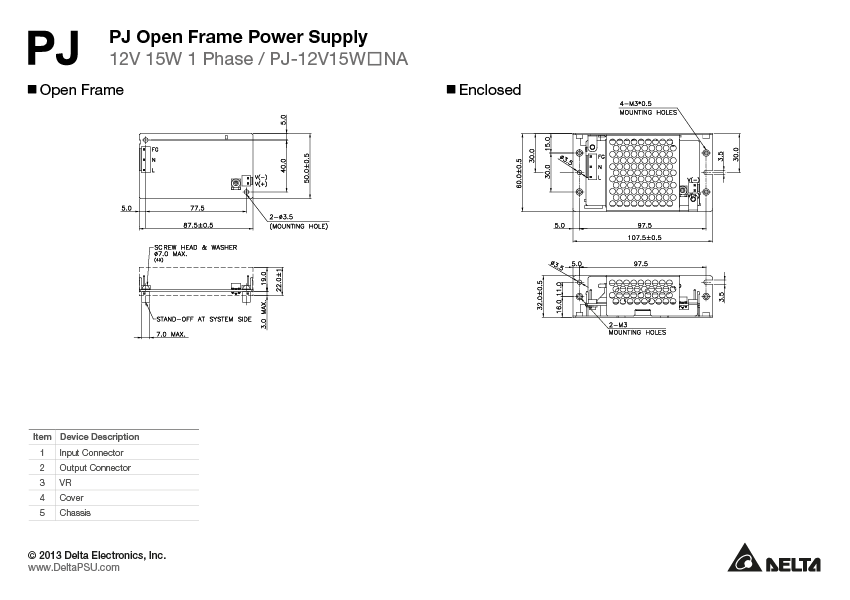

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 27-Jul-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 29-Oct-2020

UL

Uploaded on 15-Dec-2020

Tech Specs

Tech Specs

Output Current
1.3A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
10.8-13.2Vdc
Output Power
15.6W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
< 48mV (@ 100Vac & 200Vac input, 100% load)
Load Regulation
< 100mV (@ 100Vac & 200Vac input, 100% load)
PARD
-
Start-up Time
200ms typ. @ 100Vac (100% load)
Hold-up Time
20ms typ. @ 100Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 0-50% load and 50-100% load
Start-up with Capacitive Loads
8,000µF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
< 150mVpp @ 0°C to 50°C,
< 180mVpp @ -10°C to 0°C
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
85-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
0.35A typ. @ 100Vac,
0.20A typ. @ 200Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
81.0% typ. @ 100Vac,
82.5% typ. @ 200Vac
Inrush Current
15A typ. @ 100Vac
30A typ. @ 200Vac
Charging Time
-
Power Factor at 100% load
-
Leakage Current
0.1mA @ 100Vac,
0.2mA @ 240Vac
Nominal Current
-
Total Harmonic Distortion
-
Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
SGCC
Indicator
-
Cooling System
Convection
Input Terminal
JST B3P5-VH (LF)(SN)
Output Terminal
JST B2P-VH (LF)(SN)
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
AWG 22-18
Protection Structure
-
Terminal
-
Unit Weight
0.06 kg (Open Frame)
0.15 kg (Enclosed) (0.13 lb)
Dimensions
87.5 x 50 x 22mm (Open Frame)
107.5 x 60 x 32 mm (Enclosed)
3.44" x 1.96" x 0.86" (Open Frame)
4.23" x 2.36" x 1.25" (Enclosed)
Vibration (Operating)
IEC60068-2-6, Sine Wave: 10Hz to 55 Hz @ 19.6 m/S² (2 G peak); 10 min per cycle, 60 min per axis for all X, Y, Z direction
Shock Test (Operating)
-
Operating Temperature
-10°C to +70°C
Storage Temperature
-25°C to +75°C
Power De-rating
> 50°C de-rate power by 2.5% / °C
< 90Vac de-rate power by 2% / V
Operating Humidity
5 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions
Vibration (Non-Operating)
-
Storage Humidity
-
Operating Altitude
0 to 5,000 Meters (16,400 ft.)
Pollution Degree
2
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
13.8-16.8V, Latch Mode
Overload / Overcurrent
> 105% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)
Over Temperature
Latch Mode
Short Circuit
Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I with Primary Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
> 200,000 hrs. as per JEITA RCR-9102B
Expected Cap Life Time
10 years (115Vac, 50% load @ 40°C)
Safety Certificate
-
Electrical Safety
TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognizedP: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB IEC 60950-1, IEC 62368-1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B
Immunity
EN/BS EN 55024
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class A
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
