PJ-24V150W

Open Frame

PJ Series

PJ-24V150W

Output Voltage

24V

Output Power

150W

Output Current

6.3A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.29 kg (Open Frame)
0.50 kg (Enclosed) (0.64 lb)

Highlights & Features

Universal AC Input (85Vac - 264Vac)
Low Inrush Current / Low Leakage Current
High efficiency and PF factor to conserve energy
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class D
Conformal coating on PCBA to protect against chemical and dust pollutants
Remote ON/OFF (Optional for 150W)
Versatile configuration options: Open Frame, L Frame, Enclosed
Long life capacitors

Optional Models

Model	Description
PJ-24V150WBNA	Open Frame
PJ-24V150WBRA	Open Frame, remote ON/OFF
PJ-24V150WLNA	L Frame
PJ-24V150WLRA	L Frame, remote ON/OFF
PJ-24V150WCNA	Enclosed
PJ-24V150WCRA	Enclosed, remote ON/OFF

Applications

Open Frame

PJ Series

PJ-24V150W

Highlights & Features

Universal AC Input (85Vac - 264Vac)
Low Inrush Current / Low Leakage Current
High efficiency and PF factor to conserve energy
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class D
Conformal coating on PCBA to protect against chemical and dust pollutants
Remote ON/OFF (Optional for 150W)
Versatile configuration options: Open Frame, L Frame, Enclosed
Long life capacitors

Output Voltage

24V

Output Power

150W

Output Current

6.3A

Input Voltage Range

85-264Vac

Dimensions

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.29 kg (Open Frame)
0.50 kg (Enclosed) (0.64 lb)

Applications

Optional Models

Model	Description
PJ-24V150WBNA	Open Frame
PJ-24V150WBRA	Open Frame, remote ON/OFF
PJ-24V150WLNA	L Frame
PJ-24V150WLRA	L Frame, remote ON/OFF
PJ-24V150WCNA	Enclosed
PJ-24V150WCRA	Enclosed, remote ON/OFF

Download

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

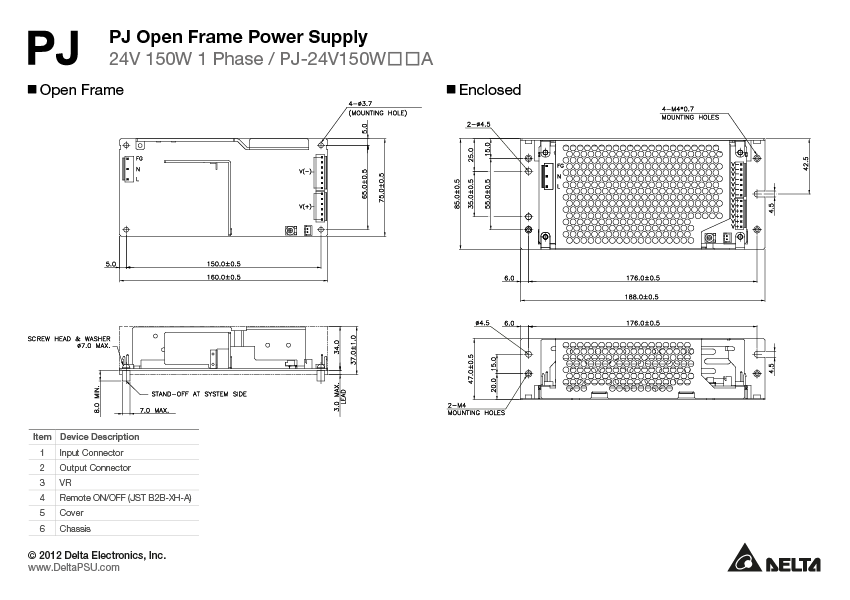

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 07-Jul-2021

CSA

Uploaded on 23-Nov-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 24-May-2022

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

6.3A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4Vdc

Output Power

150W

Line Regulation

< 96mV

Load Regulation

< 150mV

Start-up Time

500ms typ. @ 100Vac

Hold-up Time

20ms Typ. @ 100Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

Start-up with Capacitive Loads

4,000µF Max

Ripple & Noise

< 150mVpp @ 0°C to 50°C
< 180mVpp @ -10°C to 0°C

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.90A typ. @100Vac,
0.95A typ. @ 200Vac

Efficiency at 100% load

88.0% typ. @ 100Vac,
91.0% typ. @ 200Vac

Inrush Current

15A typ. @ 100Vac,
30A typ. @ 200Vac

Power Factor at 100% load

0.99 typ. @ 100Vac, 0.97 typ. @ 200Vac

Leakage Current

0.2mA @ 100Vac,
0.4mA @ 230Vac

Case Chassis / Cover SGCC
Indicator -
Cooling System Convection
Input Terminal JST B3P5-VH (LF)(SN)
Output Terminal V–: JST B7P-VH (LF)(SN), V+: JST B6P-VH (LF)(SN)
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 22-18
Protection Structure -
Terminal -
Unit Weight 0.29 kg (Open Frame) 0.50 kg (Enclosed) (0.64 lb)	Dimensions 160 x 75 x 37 mm (Open Frame) 188 x 85 x 47 mm (Enclosed) 6.29" x 2.95" x 1.45" (Open Frame) 7.40" x 3.34" x 1.85" (Enclosed)

Vibration (Operating)

IEC 60068-2-6, 10Hz to 55Hz @ 19.6m/S² (2G); 3 min period, 60 min per axis for all X, Y, Z direction

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +75°C

Power De-rating

>50°C de-rate power by 2.5% /°C, <90Vac de-rate power by 2%/V

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Overvoltage

27.6-33.6V, Latch Mode

Overload / Overcurrent

> 105% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

Expected Cap Life Time

10 years (115Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
cCSAus: CAN/CSA C22.2 No. 62368-1 and ANSI/UL 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 2.0KVac
Output to Ground: 0.5KVac

Safety Entry Low Voltage

SELV (EN 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016
and Electromagnetic Compatibility Regulations 2016

Emission

(CE&RE)
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Immunity

EN 55024

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
