PJB-24V150W

Open Frame

PJB Series

PJB-24V150W

Output Voltage

24V

Output Power

151W

Output Current

6.3A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.31 kg (Open Frame)
0.51 kg (Enclosed) (0.68 lb)

Highlights & Features

Universal AC Input (85Vac - 264Vac)
Power Boost of 200% for 10 seconds
Low Inrush Current / Low Leakage Current
High efficiency and PF factor to conserve energy
Conformal coating on PCBA to protect against chemical and dust pollutants
Remote ON/OFF (Optional)
No Load power consumption < 0.5W (Optional)
Versatile configuration options: Open Frame, L Frame, Enclosed
Design compliance with Japan PSE (DENAN)*

Optional Models

Model	Description
PJB-24V150WBNA	Open Frame
PJB-24V150WBRA	Open Frame, remote ON/OFF
PJB-24V150WLNA	L Frame
PJB-24V150WLRA	L Frame, remote ON/OFF
PJB-24V150WCNA	Enclosed
PJB-24V150WCRA	Enclosed, remote ON/OFF
PJB-24W150WJNA	Open Frame + Green Mode
PJB-24V150WJRA	Open Frame + Green Mode, remote ON/OFF
PJB-24V150WHNA	L Frame + Green Mode
PJB-24V150WHRA	L Frame + Green Mode, remote ON/OFF
PJB-24V150WGNA	Enclosed + Green Mode
PJB-24V150WGRA	Enclosed + Green Mode, remote ON/OFF

Applications

Open Frame

PJB Series

PJB-24V150W

Highlights & Features

Universal AC Input (85Vac - 264Vac)
Power Boost of 200% for 10 seconds
Low Inrush Current / Low Leakage Current
High efficiency and PF factor to conserve energy
Conformal coating on PCBA to protect against chemical and dust pollutants
Remote ON/OFF (Optional)
No Load power consumption < 0.5W (Optional)
Versatile configuration options: Open Frame, L Frame, Enclosed
Design compliance with Japan PSE (DENAN)*

Output Voltage

24V

Output Power

151W

Output Current

6.3A

Input Voltage Range

85-264Vac

Dimensions

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.31 kg (Open Frame)
0.51 kg (Enclosed) (0.68 lb)

Applications

Optional Models

Model	Description
PJB-24V150WBNA	Open Frame
PJB-24V150WBRA	Open Frame, remote ON/OFF
PJB-24V150WLNA	L Frame
PJB-24V150WLRA	L Frame, remote ON/OFF
PJB-24V150WCNA	Enclosed
PJB-24V150WCRA	Enclosed, remote ON/OFF
PJB-24W150WJNA	Open Frame + Green Mode
PJB-24V150WJRA	Open Frame + Green Mode, remote ON/OFF
PJB-24V150WHNA	L Frame + Green Mode
PJB-24V150WHRA	L Frame + Green Mode, remote ON/OFF
PJB-24V150WGNA	Enclosed + Green Mode
PJB-24V150WGRA	Enclosed + Green Mode, remote ON/OFF

Download

Datasheet

Uploaded on 10-May-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

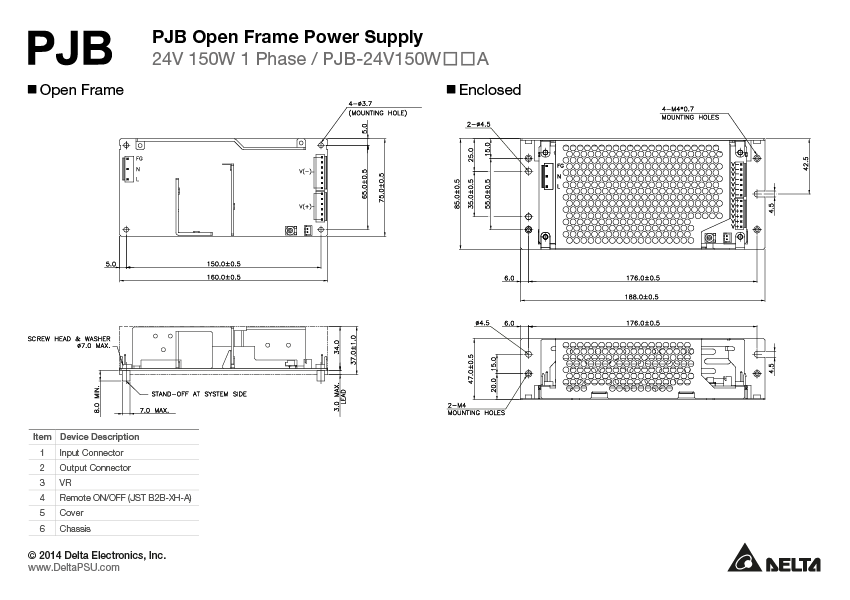

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 22-Jul-2021

cTUVus

Uploaded on 03-Dec-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 03-Dec-2020

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

6.3A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4Vdc

Output Power

151W

Line Regulation

< 96mV

Load Regulation

< 150mV

Start-up Time

500ms typ. @ 100Vac

Hold-up Time

20ms typ. @ 100Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

Start-up with Capacitive Loads

8,000µF Max

Ripple & Noise

< 150 mVpp @ 0°C to 50°C,
< 180 mVpp @ -10°C to 0°C

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.90A typ. @ 100Vac,
0.95A typ. @ 200Vac

Efficiency at 100% load

88.0% typ. @ 100Vac,
90.5% typ. @ 200Vac

Inrush Current

15A typ. @ 100Vac,
30A typ. @ 200Vac

Power Factor at 100% load

0.98 typ. @ 100Vac,
0.95 typ. @ 200Vac

Leakage Current

0.2mA @ 100Vac,
0.4mA @ 240Vac

Case Chassis / Cover SGCC
Indicator -
Cooling System Convection
Input Terminal JST B3P5-VH (LF)(SN)
Output Terminal V‒: JST B7P-VH (LF)(SN), V+: JST B6P-VH (LF)(SN)
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25 dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 22-18
Protection Structure -
Terminal -
Unit Weight 0.31 kg (Open Frame) 0.51 kg (Enclosed) (0.68 lb)	Dimensions 160 x 75 x 37 mm (Open Frame) 188 x 85 x 47 mm (Enclosed) 6.29" x 2.95" x 1.45" (Open Frame) 7.40" x 3.34" x 1.85" (Enclosed)

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10 Hz to 55 Hz @ 19.6 m/S² (2 G peak); 10 min per cycle, 60 min per axis for all X, Y, Z direction

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +75°C

Power De-rating

> 50°C de-rate power by 2% / °C
< 90Vac de-rate power by 2% / V

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Pollution Degree

Over Voltage Category

Overvoltage

27.6-33.6V, Latch Mode

Overload / Overcurrent

> 220% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

Expected Cap Life Time

10 years (115 Vac, 50% load @ 40°C)

Electrical Safety

For package type: B/L/C
TUV Bauart: EN 60950-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
CB scheme: IEC 60950-1
For package type: J/H/G
TUV Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
cTUVus: UL62368-1 and CSA C22.2 No.62368-1
CB scheme: IEC 62368-1
Design to meet DENAN at 100Vac - 240Vac

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output 3.0KVac
Input to Ground 2.0KVac
Output to Ground 0.5KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

( CE & RE )
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Immunity

EN 61000-6-1 (For Package Type : B、L、C)

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
