PJT-12V100WBBA

Open Frame

PJT Series

PJT-12V100WBBA

Output Voltage

12V

Output Power

100W

Output Current

8.83A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

101.6 x 50.8 x 31.8 mm

4.00” x 2.00” x 1.25”

Unit Weight

0.15 kg (0.33 lb)

Highlights & Features
  • Universal AC input voltage
  • Standard industrial foot print of 2” x 4”
  • Low leakage current < 0.1mA
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Multiple connector source options
Model Description
PJT-12V100WBBB Molex connector
PJT-12V100WBBC JWT connector
Applications


PJT-12V100WBBA
PJT-12V100WBBA

Open Frame

PJT Series

PJT-12V100WBBA

Highlights & Features
  • Universal AC input voltage
  • Standard industrial foot print of 2” x 4”
  • Low leakage current < 0.1mA
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Multiple connector source options
Output Voltage

12V

Output Power

100W

Output Current

8.83A

Input Voltage Range

90-264Vac

Dimensions

101.6 x 50.8 x 31.8 mm

4.00” x 2.00” x 1.25”

Unit Weight

0.15 kg (0.33 lb)

Applications
Model Description
PJT-12V100WBBB Molex connector
PJT-12V100WBBC JWT connector

Download

Download

Datasheet

Uploaded on 25-Nov-2022


Uploaded on 25-Mar-2025

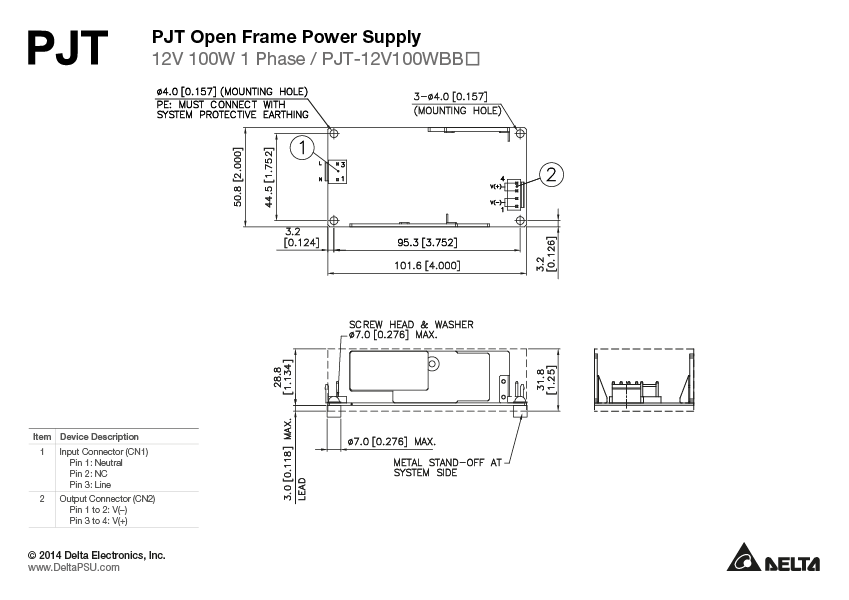

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CB

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 22-Jul-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 27-Nov-2020

UL

Uploaded on 15-Dec-2020

Tech Specs

Tech Specs

Output Current
8.83A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
100W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5% @ 115Vac & 230Vac
Load Regulation
± 1.0% @ 115Vac & 230Vac
PARD
< 120mVpp
Start-up Time
500ms typ. @ 115Vac & 230Vac
Hold-up Time
10ms typ. @ 115Vac & 230Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 50-100% load
(Slew Rate: 0.1A/µS)
Start-up with Capacitive Loads
4,000uF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Peak Power
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
90-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
2.50A typ. @ 115Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
86.0% typ. @ 115Vac, 88.0% typ. @ 230Vac
Inrush Current
30A typ. @ 115Vac, 60A typ. @ 230Vac
Charging Time
-
Power Factor at 100% load
-
Leakage Current
0.1mA @ 240Vac
Nominal Current
-
Total Harmonic Distortion
-
Power Dissipation
-
Efficiency @ 10% load
-
Input Voltage Phase
-
Case Chassis / Cover
-
Indicator
-
Cooling System
Convection / Forced Cooling
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
AWG 20-18
Protection Structure
-
Terminal
-
Unit Weight
0.15 kg (0.33 lb)
Dimensions
101.6 x 50.8 x 31.8 mm
4.00” x 2.00” x 1.25”
Vibration (Operating)
IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G); 10 min per cycle, 90 min per axis for all X, Y, Z direction
Shock Test (Operating)
-
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +85°C
Power De-rating
Convertion: > 50°C de-rate power by 2% / °C
Forced Cooling: > 50°C de-rate power by 2.5% / °C
Operating Humidity
10 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions
Vibration (Non-Operating)
-
Storage Humidity
-
Operating Altitude
0 to 5,000 Meters (16,400 ft.)
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Shock
-
Vibration
-
Acoustic Noise
-
Overvoltage
< 18.0V, Latch Mode
Overload / Overcurrent
< 170% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature
Non-Latching (Auto-Recovery)
Short Circuit
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I with Primary Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
> 700,000 hrs. as per Telcordia SR-332
Expected Cap Life Time
10 years (115Vac & 230Vac, 50% load @ 40°C)
Safety Certificate
-
Electrical Safety
TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized:UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
(CE & RE)
CISPR 32, EN/BS EN 55032, FCC Title 47: Class B
Immunity
EN/BS EN 55024
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class A
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
