PMC-12V060W1NA

Panel Mount

PMC Series

PMC-12V060W1NA

Output Voltage

12V

Output Power

60W

Output Current

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

Unit Weight

0.28 kg (0.62 lb)

Highlights & Features

Universal AC input voltage without power de-rating
Full corrosion resistant Aluminium chassis
NEC Class 2 power supply and Limited Power Source (LPS) approvals
High MTBF > 700,000 hrs as per Telcordia SR-332
Wide operating temperature range from -20°C to 70°C
Conformal Coating (Class I, Div 2 Hazardous Locations Ready)
Certified according to IEC/EN/UL 62368-1

** Discontinued Product **

PMC-12V060W1NA

** NRND **

PMC-12V060W1NJ, PMC-12V060W1NL

Recommended Model: PMT-12V75W2BA

Applications

Panel Mount

PMC Series

PMC-12V060W1NA

Highlights & Features

Universal AC input voltage without power de-rating
Full corrosion resistant Aluminium chassis
NEC Class 2 power supply and Limited Power Source (LPS) approvals
High MTBF > 700,000 hrs as per Telcordia SR-332
Wide operating temperature range from -20°C to 70°C
Conformal Coating (Class I, Div 2 Hazardous Locations Ready)
Certified according to IEC/EN/UL 62368-1

** Discontinued Product **

PMC-12V060W1NA

** NRND **

PMC-12V060W1NJ, PMC-12V060W1NL

Recommended Model: PMT-12V75W2BA

Output Voltage

12V

Output Power

60W

Output Current

Input Voltage Range

85-264Vac

Dimensions

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

Unit Weight

0.28 kg (0.62 lb)

Applications

Download

Datasheet

Uploaded on 04-Aug-2021

Manual

Uploaded on 30-Nov-2020


Uploaded on 10-Oct-2024

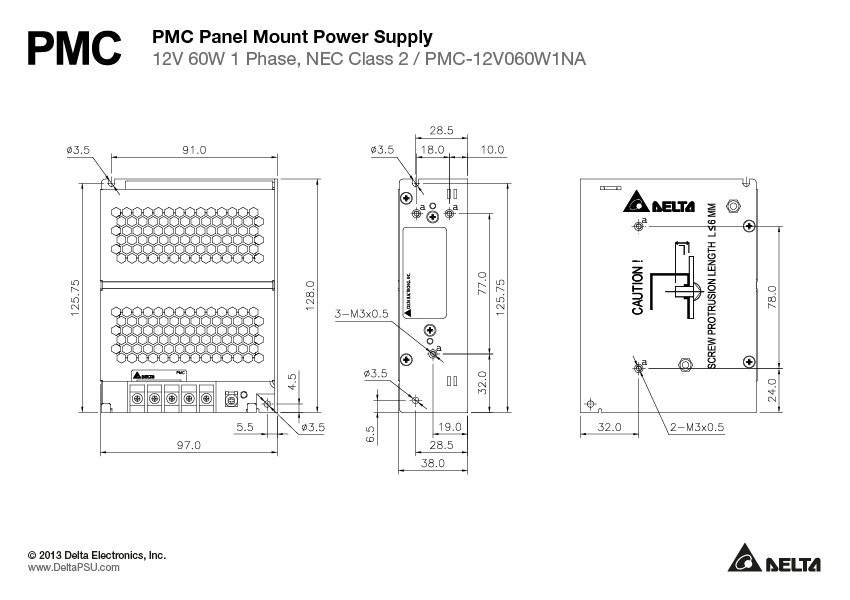

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

BIS

Uploaded on 04-Aug-2021

Uploaded on 30-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 04-Aug-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 30-Nov-2020

UKCA

Uploaded on 04-Aug-2021

Uploaded on 30-Nov-2020

GUI Software

Tech Specs

Output Current

Output Voltage

12V

Output Voltage Adjustment Range

12-14Vdc

Output Power

60W

Line Regulation

< 0.5% typ. (@ 85-264Vac input, 100% load)

Load Regulation

< 1% typ. (@ 85-264Vac input, 0-100% load)

PARD

< 100mVpp @ 25°C & 50°C
< 150mVpp @ -10°C & -20°C

Start-up Time

< 2500ms @ nominal input (100% load)

Hold-up Time

> 15ms @ 115Vac,
> 80ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-100% load

Start-up with Capacitive Loads

5,000μF Max

Rise Time

< 60ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375Vdc

Input Current

< 1.35A @ 115Vac,
< 0.90A @ 230Vac

Efficiency at 100% load

> 86.0% @ 115Vac,
> 87.0% @ 230Vac

Inrush Current

< 50A @ 115Vac,
< 100A @ 230Vac

Leakage Current

< 1mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator Green LED DC OK
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 40dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.28 kg (0.62 lb)	Dimensions 128 x 97 x 38 mm 5.04” x 3.82” x 1.50”

Operating Temperature

-20°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

< -10°C de-rate power by 2.0%/°C,
> 50°C de-rate power by 2.5%/°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 times per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 3,000 Meters (9,840 ft)

Pollution Degree

Over Voltage Category

Overvoltage

< 17.6V, SELV Output, Non-Latching (Auto-Recovery)

Overload / Overcurrent

> 110-160% of rated load, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1, LPS, NEC Class 2
UL/cUL recognized to: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme to: IEC 60950-1, IEC 62368-1, LPS

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

BIS

IS 13252-1

K 60950-1

Emission

Generic Standards: CISPR 32, EN/BS EN 55032,
FCC Title 47: Class B (Class A for DC input)

Immunity

Generic Standards: EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

(/3) Item(s) selected
