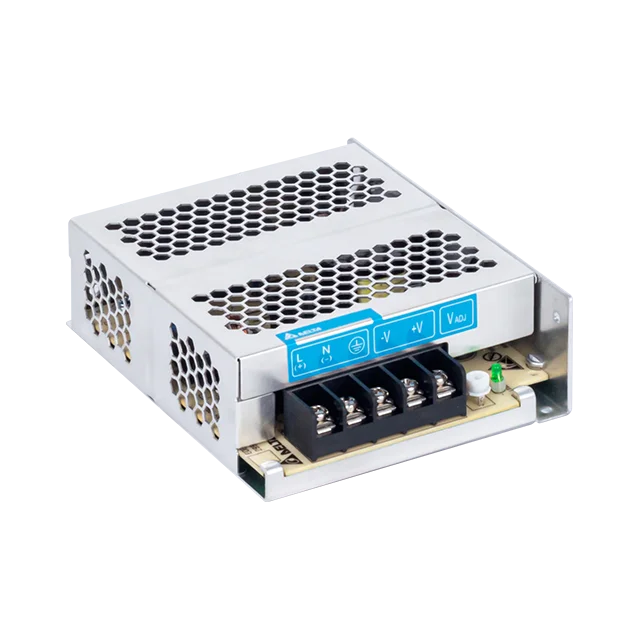

PMC-24V075W1AA

Panel Mount

PMC Series

PMC-24V075W1AA

Output Voltage

24V

Output Power

75W

Output Current

3.12A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

Unit Weight

0.30 kg (0.66 lb)

Highlights & Features

Universal AC input range from 85Vac to 264Vac without power de-rating
Full Aluminium casing for lightweight and corrosion resistant handling
Conform to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs as per Telcordia SR-332
Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
Certified according to IEC/EN/UL 62368-1

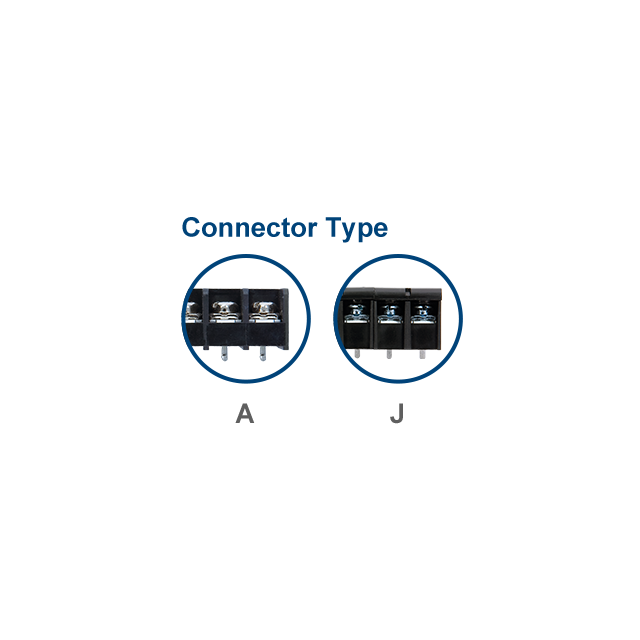

Also available: IP20 connector

** Discontinued Product **

Replaced by: PMT-24V75W2BA/PMT-24V75W2BAC

Optional Models

Model	Description
PMC-24V075W1AJ	IP20 connector

Applications

Panel Mount

PMC Series

PMC-24V075W1AA

Highlights & Features

Universal AC input range from 85Vac to 264Vac without power de-rating
Full Aluminium casing for lightweight and corrosion resistant handling
Conform to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs as per Telcordia SR-332
Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
Certified according to IEC/EN/UL 62368-1
Also available: IP20 connector

** Discontinued Product **

Replaced by: PMT-24V75W2BA/PMT-24V75W2BAC

Output Voltage

24V

Output Power

75W

Output Current

3.12A

Input Voltage Range

85-264Vac

Dimensions

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

Unit Weight

0.30 kg (0.66 lb)

Applications

Optional Models

Model	Description
PMC-24V075W1AJ	IP20 connector

Download

Datasheet

Uploaded on 01-Nov-2021

Manual

Uploaded on 13-Nov-2020


Uploaded on 06-Jun-2024

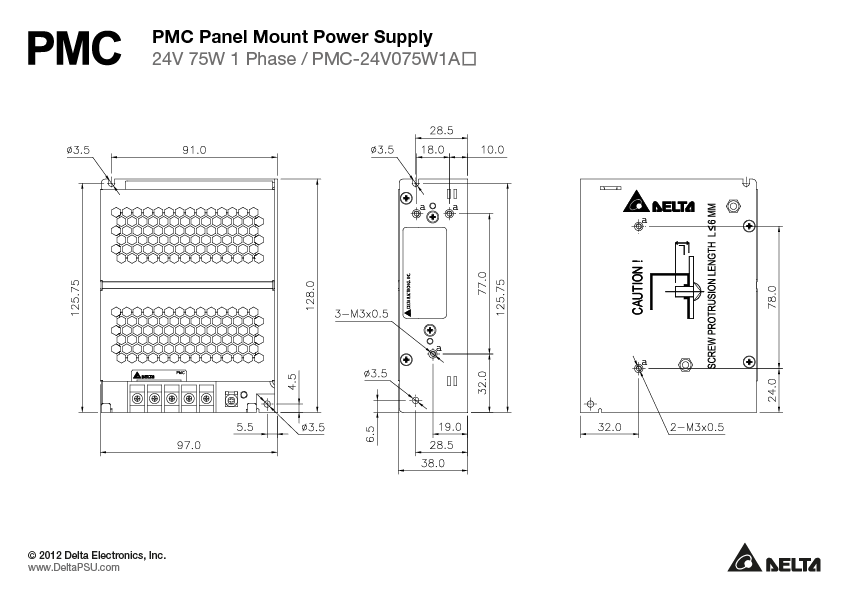

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 13-Nov-2020

CCC

Uploaded on 22-Apr-2020

Uploaded on 16-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 01-Nov-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 16-Nov-2020

UKCA

Uploaded on 01-Nov-2021

Uploaded on 16-Nov-2020

GUI Software

Tech Specs

Output Current

3.12A

Output Voltage

24V

Output Voltage Adjustment Range

22-28Vdc

Output Power

75W

Line Regulation

< 0.5% typ. (@ 85-264Vac input, 100%load)

Load Regulation

< 1% typ. (@ 85-264Vac input, 0-100% load)

PARD

< 150mVpp

Start-up Time

< 2500ms @ nominal input (100% load)

Hold-up Time

> 15ms @ 115Vac,
> 90ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-100% load

Start-up with Capacitive Loads

8,000µF Max

Rise Time

< 30ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375Vdc

Input Current

< 1.5A @ 115Vac,
< 1.0A @ 230Vac

Efficiency at 100% load

> 86% @ 115Vac,
> 87% @ 230Vac

Inrush Current

< 40A @ 115Vac,
< 80A @ 230Vac

Power Factor at 100% load

Conform to EN61000-3-2, Class A

Leakage Current

< 1mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 40dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 20-12
Protection Structure -
Terminal -
Unit Weight 0.30 kg (0.66 lb)	Dimensions 128 x 97 x 38 mm 5.04” x 3.82” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% /°C

Operating Humidity

< 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

Vibration (Non-Operating)

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Pollution Degree

Overvoltage

32V ±10%, SELV output, Hicc-up Mode, Non-Latching (Auto recovery).

Overload / Overcurrent

> 120% of rated load current, Hicc-up Mode, Non-Latching (Auto recovery).

Over Temperature

< 75°C Ambient Temp@ 100% load, Non-Latching (Auto-recovery).

Short Circuit

Hicc-up Mode, Non-Latching (Auto-recovery when the fault is removed).

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1, UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB4943

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5KVac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1 (for PMC-24V075W1AA)

Emission

Generic Standards: CISPR 32, EN/BS EN 55032, KN 32 FCC Title 47: Class B, GB9254

Immunity

Generic Standards: EN/BS EN 55024, KN 35

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
