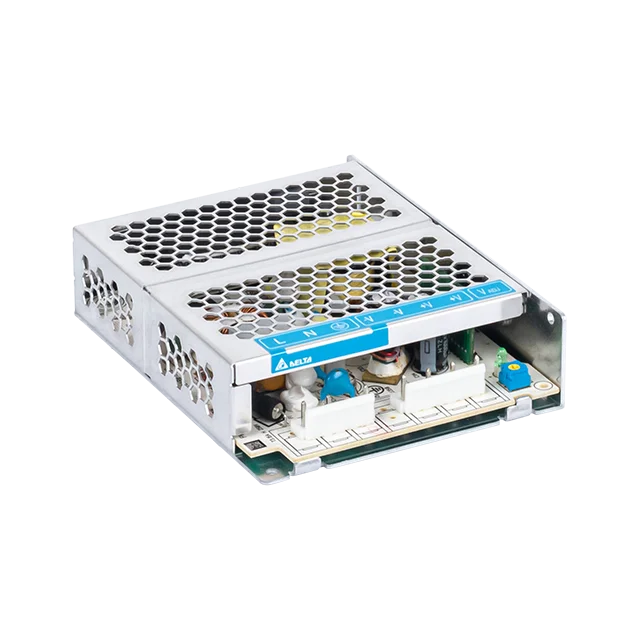

PMH-12V100WCMT

Panel Mount

PMH Series

PMH-12V100WCMT

Output Voltage

12V

Output Power

54W

Output Current

4.5A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

129 x 97 x 30 mm

5.08” x 3.82” x 1.18”

Unit Weight

0.31 kg (0.68 lb)

Highlights & Features

Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage
Withstand line input voltage surge 300Vac up to 7 seconds
Full power 54W up to 70°C
Full corrosion resistant aluminium casing
No load power consumption < 0.3W @ 115Vac
Low earth leakage current < 0.75mA
Certified according to IEC/EN/UL 62368-1

** Discontinued Product **

PMH-12V100WCMU, PMH-12V100WCMV

** NRND **

PMH-12V100WCMS, PMH-12V100WCMT

Recommended Model: PMT-12V100W2BA

Optional Models

Model	Description
PMH-12V100WCMS	Terminal block

Applications

Panel Mount

PMH Series

PMH-12V100WCMT

Highlights & Features

Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage
Withstand line input voltage surge 300Vac up to 7 seconds
Full power 54W up to 70°C
Full corrosion resistant aluminium casing
No load power consumption < 0.3W @ 115Vac
Low earth leakage current < 0.75mA
Certified according to IEC/EN/UL 62368-1

** Discontinued Product **

PMH-12V100WCMU, PMH-12V100WCMV

** NRND **

PMH-12V100WCMS, PMH-12V100WCMT

Recommended Model: PMT-12V100W2BA

Output Voltage

12V

Output Power

54W

Output Current

4.5A

Input Voltage Range

85-264Vac

Dimensions

129 x 97 x 30 mm

5.08” x 3.82” x 1.18”

Unit Weight

0.31 kg (0.68 lb)

Applications

Optional Models

Model	Description
PMH-12V100WCMS	Terminal block

Download

Datasheet

Uploaded on 13-Jan-2022

Manual

Uploaded on 20-May-2022


Uploaded on 10-Oct-2024

Mechanical Drawing

Uploaded on 19-Apr-2022

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 03-Mar-2023

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 22-Apr-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 11-Aug-2021

Uploaded on 25-Nov-2020

GUI Software

Tech Specs

Output Current

4.5A

Output Voltage

12V

Output Voltage Adjustment Range

11-12Vdc

Output Power

54W

Line Regulation

< 1.0% (@ 100-264Vac input, 100% load)

Load Regulation

< 2.0% (@ 100-264Vac input, 0-100% load)

PARD

< 120mVpp (20MHz)

Start-up Time

< 2500ms @ 115Vac (100% load),
< 1500ms @ 230Vac (100% load)

Hold-up Time

> 5ms @ 115Vac, > 25ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 100-264Vac input, 0-50%, 0-100%, 50-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1kHz)

Start-up with Capacitive Loads

3,000μF Max

Rise Time

< 100ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

120-375Vdc

Input Current

< 1.50A @ 115Vac, < 0.80A @ 230Vac

Efficiency at 100% load

> 83% @115Vac & 230Vac

Inrush Current

(Cold Start)
< 30A @ 115Vac, < 60A @ 230Vac

Leakage Current

< 0.75mA @ 240Vac

Power Dissipation

No Load: < 0.3W @ 115Vac, < 0.5W @ 230Vac
100% Load: < 11.0W @ 115Vac & 230Vac

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25dBA (1 Meter from power supply)
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 20-18
Protection Structure -
Terminal -
Unit Weight 0.31 kg (0.68 lb)	Dimensions 129 x 97 x 30 mm 5.08” x 3.82” x 1.18”

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

Temperature:
120Vac: < -25°C de-rate power by 5.0% / °C
120Vac and 240Vac: > 50°C de-rate power by 2.0% / °C
Input Voltage:
< 100Vac de-rate power by 1.33%/°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Over Voltage Category

Overvoltage

< 17.5V, SELV Output, Latch mode

Overload / Overcurrent

115~150% of rated load current, Hiccup mode, Non-Latching (Auto recovery)

Over Temperature

< 85°C Surrounding Air Temperature @ 100% load, Latch mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1, UL 62368-1 and CSA C22.2 No. 60950-1, 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 60335-1, IEC 61558-1, IEC 61558-2-16

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0KVac
Input to Ground: 2.0KVac
Output to Ground: 1.0KVdc

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

Generic Standards: EN 55011, EN/BS EN 55032, CISPR 32, FCC Title 47: Class B, EN 61000-6-3

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Component Power Supply for General Use

EN 61204-3
