Delta PMR-24V240W1AT 24V 240W 10A Panel Mount PMR Series

Download

Datasheet

Uploaded on 10-Jul-2024

Manual

Uploaded on 05-Apr-2024


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 20-Apr-2023

.DXF

Uploaded on 20-Feb-2023

.STP

Uploaded on 20-Feb-2023

Certificates

BSMI

Uploaded on 21-Feb-2023

CCC

Uploaded on 21-Feb-2023

EAC

Uploaded on 21-Feb-2023

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 21-Feb-2023

UKCA

Uploaded on 21-Feb-2023

GUI Software

Tech Specs

Output Current

10A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4 Vdc

Output Power

240W

Line Regulation

± 0.5% typ. @ 115 Vac & 230 Vac

Load Regulation

± 0.5% typ.

Start-up Time

500 ms typ. @ 115 Vac & 230 Vac

Hold-up Time

16 ms typ. @ 115 Vac & 230 Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input, 10-100% load
(Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)

Start-up with Capacitive Loads

8,000 µF Max

Max. Power

240.0 W Max.

Rise Time

30 ms typ. @ 115 Vac & 230 Vac

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

127-375 Vdc

Input Current

2.5 A typ. @ 115 Vac,
1.3 A typ. @ 230 Vac

Input Power (Standby Mode)

0.5 W typ. @ 230 Vac

Efficiency at 100% load

93.0% typ. @ 230 Vac

Inrush Current

50 A typ. @ 230 Vac

Power Factor at 100% load

> 0.96 @ 115 Vac &
> 0.93 @ 230 Vac

Leakage Current

< 1.2 mA @ 240 Vac

Case Chassis / Cover Aluminum / SGCC
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12
Protection Structure -
Terminal M3.5 x 9 Pins (Rated 300 V / 20 A)
Unit Weight 0.45 kg (0.99 lb)	Dimensions 159 x 97 x 30 mm 6.26” x 3.82” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @19.6 m/s2(2G); 10 min per cycle, 60 min for each axis (X,Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions.

Operating Temperature

-30°C to +70°C ( -40°C Cold Start )

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C
< 100Vac de-rate power by 1% / V (90% load @ 90 Vac)

Operating Humidity

20 to 90% (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

26.4 V - 33.6 V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protection Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332
I/P: 115 Vac & 230 Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (115 Vac & 230 Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1, EN 60335-1, EN 61558-1/-2-16
UL/cUL: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16
EAC: TP TC 004/2011
BSMI: CNS 15598-1
CCC: GB 4943.1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, KS C 9832, AS/NZS CISPR32, EN/BS EN 61000-6-4
Compliance to FCC Title 47, EN/BS EN 55014-1, EN/BS 61000-6-3: Class B

Immunity

EN/BS EN 55035, KS C 9835, EN/BS EN 61000-6-2 & Compliance to EN/ BS EN 55014-2, EN/BS EN 61000-6-1

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A & Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

(/3) Item(s) selected

PMR-24V240W1AT

Panel Mount

PMR Series

PMR-24V240W1AT

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

Unit Weight

Highlights & Features

Applications

PMR-24V240W1AT

PMR-24V240W1AT

Panel Mount

PMR Series

PMR-24V240W1AT

Highlights & Features

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions

Unit Weight

Applications

Download

Download

Tech Specs

Tech Specs

Looking for support for this product?

Looking for support for this product?

Related Products

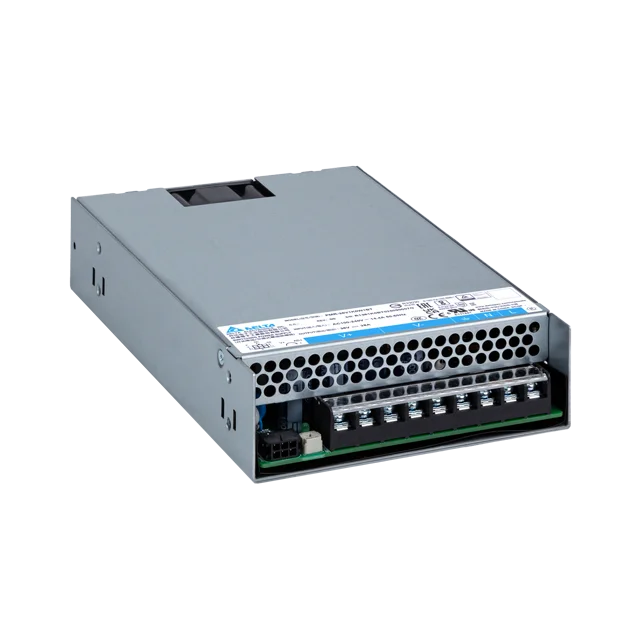

PMR-36V600W1BT

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

225 x 124 x 41 mm

8.86” x 4.88” x 1.61”

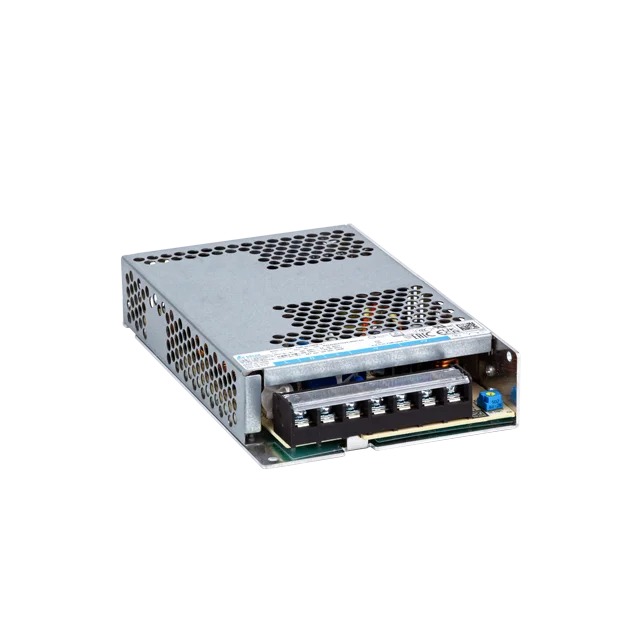

PMT-48V200W2BNJ
