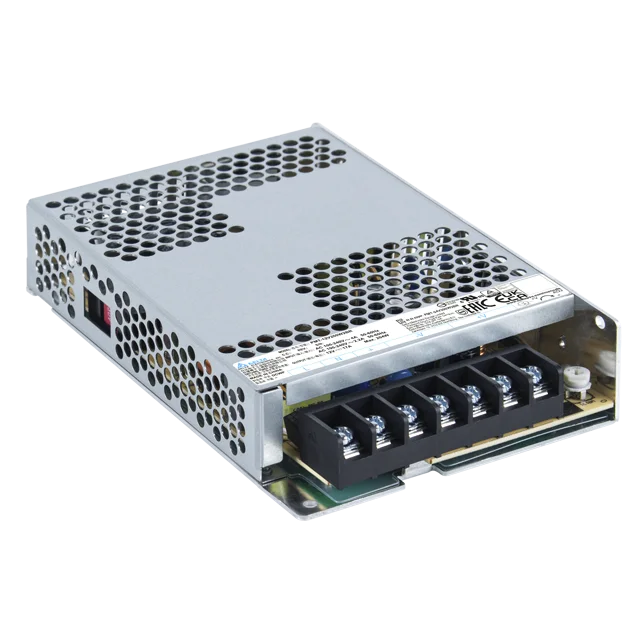

PMT-12V200W2BR

Panel Mount

PMT2 Series

PMT-12V200W2BR

Output Voltage

12V

Output Power

204W

Output Current

0-17A

Input Voltage Range

90-132 Vac, 180-264 Vac (Selectable by Switch)

Dimensions (L x W x H)

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

Unit Weight

0.42 kg (0.93 lb)

Highlights & Features

Household appliance approvals for pollution degree 3 to IEC/EN/BS EN 60335-1, IEC/EN/BS EN 61558-1 and IEC/EN/BS EN 61558-2-16
AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
No load power consumption < 0.5W
Low profile design: 30mm height
Over voltage category III
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332

Optional Models

Model	Description
PMT-12V200W2BM	UL approval
PMT-12V200W2BRB	UL/TUV/CE approval, single side conformal coating
PMT-12V200W2BMB	UL approval, single side conformal coating

Applications

Panel Mount

PMT2 Series

PMT-12V200W2BR

Highlights & Features

Household appliance approvals for pollution degree 3 to IEC/EN/BS EN 60335-1, IEC/EN/BS EN 61558-1 and IEC/EN/BS EN 61558-2-16
AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
No load power consumption < 0.5W
Low profile design: 30mm height
Over voltage category III
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332

Output Voltage

12V

Output Power

204W

Output Current

0-17A

Input Voltage Range

90-132 Vac, 180-264 Vac (Selectable by Switch)

Dimensions

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

Unit Weight

0.42 kg (0.93 lb)

Applications

Optional Models

Model	Description
PMT-12V200W2BM	UL approval
PMT-12V200W2BRB	UL/TUV/CE approval, single side conformal coating
PMT-12V200W2BMB	UL approval, single side conformal coating

Download

Datasheet

Uploaded on 02-Apr-2024

Manual

Uploaded on 06-May-2024


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 09-Jun-2021

.DXF

Uploaded on 09-Jun-2021

.STP

Uploaded on 09-Jun-2021

Certificates

BSMI

Uploaded on 09-Jun-2021

Uploaded on 16-Jan-2023

CE & UKCA

Uploaded on 09-Jun-2021

EAC

Uploaded on 09-Jun-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 09-Jun-2021

Uploaded on 10-Jun-2021

GUI Software

Tech Specs

Output Current

0-17A

Output Voltage

12V

Output Voltage Adjustment Range

10.8-13.2 Vdc

Output Power

204W

Line Regulation

± 0.5% typ. @ 100-132 Vac,
180-264 Vac (Selectable by Switch)

Load Regulation

± 1% typ. @ 100-132 Vac, 180-264 Vac (Selectable by Switch)

PARD

< 150 mVpp @ 0°C to 70°C,
450 mVpp typ. @ -30°C to 0°C

Start-up Time

500 ms typ. @ 115 Vac & 230 Vac

Hold-up Time

30 ms typ. @ 115 Vac & 230 Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input, 10-100% load
(Slew Rate: 2.5 A / μS, 50% duty cycle @ 5 Hz & 10 KHz)

Start-up with Capacitive Loads

8,000 µF Max

Rise Time

30 ms typ. @ 115 Vac & 230 Vac

Nominal Input Voltage

100-120 Vac, 200-240 Vac (Selectable by Switch)

Input Voltage Range

90-132 Vac, 180-264 Vac (Selectable by Switch)

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

4 A typ. @ 115 Vac,
2.2 A typ. @ 230 Vac

Efficiency at 100% load

88.5% typ. @230 Vac

Inrush Current

60 A typ. @ 230 Vac

Leakage Current

< 0.5 mA @ 240 Vac / 50 Hz

Case Chassis / Cover Aluminum / SGCC
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25 dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12
Protection Structure -
Terminal -
Unit Weight 0.42 kg (0.93 lb)	Dimensions 159 x 97 x 30 mm 6.26” x 3.82” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20 Hz to 500 Hz (5 G); 10 min per cycle, 60min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3 shock for each 3 directions.

Operating Temperature

-30°C to +70°C ( -40°C Cold Start )

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C
< 100 Vac de-rate power by 2% / V
(80% load @ 90 Vac)

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09 G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

13.2 V - 17.4 V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protection Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332 I/P: 230 Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230 Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1,EN 60335-1, EN 61558-1/-2-16
cULus: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16
CCC: GB 4943 (design compliance)
KC: K 60950-1
EAC:TP TC 004/2011
BSMI: CNS 14336-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 61000-6-4, KN32, AS/NZS CISPR 32
Compliance to EN/BS EN 55014-1, FCC Title 47, EN/BS EN 61000-6-3 : Class B

Immunity

EN/BS EN 55035, KN35, EN/BS EN 61000-6-2 & Compliance to EN/BS EN 55014-2,EN/BS EN 61000-6-1

Harmonic Current Emissions

IEC/EN/ BS EN 61000-3-2 Class A
