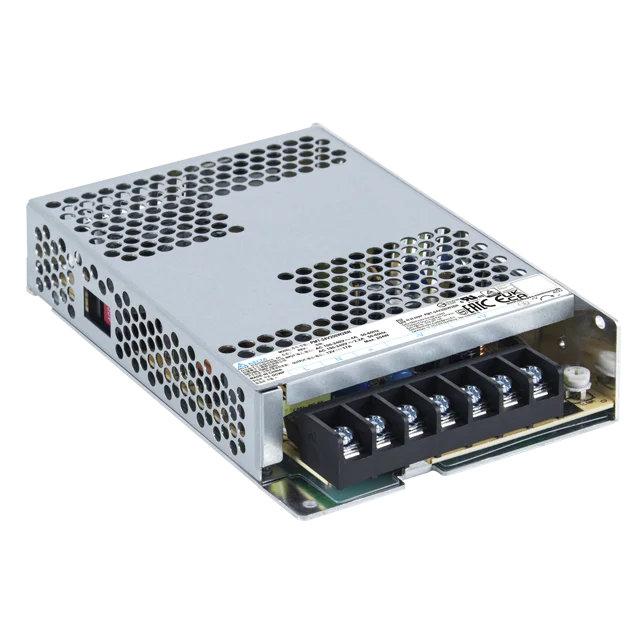

PMT-24V200W2BR

Panel Mount

PMT2 Series

PMT-24V200W2BR

Output Voltage

24V

Output Power

211.2W

Output Current

0-8.8A

Input Voltage Range

90-132 Vac, 180-264 Vac (Selectable by Switch)

Dimensions (L x W x H)

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

Unit Weight

0.42 kg (0.93 lb)

Highlights & Features

Household appliance approvals for pollution degree 3 to IEC/EN/BS EN 60335-1, IEC/EN/BS EN 61558-1 and IEC/EN/BS EN 61558-2-16
AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
No load power consumption < 0.5W
Low profile design: 30mm height
Over voltage category III
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332

Optional Models

Model	Description
PMT-24V200W2BM	UL approval
PMT-24V200W2BRB	UL/TUV/CE approval, single side conformal coating
PMT-24V200W2BMB	UL approval, single side conformal coating

Applications

Panel Mount

PMT2 Series

PMT-24V200W2BR

Highlights & Features

Household appliance approvals for pollution degree 3 to IEC/EN/BS EN 60335-1, IEC/EN/BS EN 61558-1 and IEC/EN/BS EN 61558-2-16
AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
No load power consumption < 0.5W
Low profile design: 30mm height
Over voltage category III
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332

Output Voltage

24V

Output Power

211.2W

Output Current

0-8.8A

Input Voltage Range

90-132 Vac, 180-264 Vac (Selectable by Switch)

Dimensions

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

Unit Weight

0.42 kg (0.93 lb)

Applications

Optional Models

Model	Description
PMT-24V200W2BM	UL approval
PMT-24V200W2BRB	UL/TUV/CE approval, single side conformal coating
PMT-24V200W2BMB	UL approval, single side conformal coating

Download

Datasheet

Uploaded on 02-Apr-2024

Manual

Uploaded on 06-May-2024


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 09-Jun-2021

.DXF

Uploaded on 09-Jun-2021

.STP

Uploaded on 09-Jun-2021

Certificates

BSMI

Uploaded on 09-Jun-2021

Uploaded on 16-Jan-2023

CE & UKCA

Uploaded on 09-Jun-2021

EAC

Uploaded on 09-Jun-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 09-Jun-2021

Uploaded on 10-Jun-2021

GUI Software

Tech Specs

Output Current

0-8.8A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4 Vdc

Output Power

211.2W

Line Regulation

± 0.5% typ. @ 100-132 Vac,
180-264 Vac (Selectable by Switch)

Load Regulation

± 0.5% typ. @ 100-132 Vac, 180-264 Vac (Selectable by Switch)

PARD

< 150 mVpp @ 0°C to 70°C,
450 mVpp typ. @ -30°C to 0°C

Start-up Time

500 ms typ. @ 115 Vac & 230 Vac

Hold-up Time

30 ms typ. @ 115 Vac & 230 Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input, 10-100% load
(Slew Rate: 2.5 A / μS, 50% duty cycle @ 5 Hz & 10 KHz)

Start-up with Capacitive Loads

8,000 µF Max

Rise Time

30 ms typ. @ 115 Vac & 230 Vac

Nominal Input Voltage

100-120 Vac, 200-240 Vac (Selectable by Switch)

Input Voltage Range

90-132 Vac, 180-264 Vac (Selectable by Switch)

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

4 A typ. @ 115 Vac,
2.2 A typ. @ 230 Vac

Efficiency at 100% load

90% typ. @230 Vac

Inrush Current

60 A typ. @ 230 Vac

Leakage Current

< 0.5 mA @ 240 Vac / 50 Hz

Case Chassis / Cover Aluminum / SGCC
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25 dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12
Protection Structure -
Terminal -
Unit Weight 0.42 kg (0.93 lb)	Dimensions 159 x 97 x 30 mm 6.26” x 3.82” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20 Hz to 500 Hz (5 G); 10 min per cycle, 60min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3 shock for each 3 directions.

Operating Temperature

-30°C to +70°C ( -40°C Cold Start )

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C
< 100 Vac de-rate power by 2% / V
(80% load @ 90 Vac)

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09 G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

26.4 V - 33.6 V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protection Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332 I/P: 230 Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230 Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1,EN 60335-1, EN 61558-1/-2-16
cULus: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16
CCC: GB 4943 (design compliance)
KC: K 60950-1
EAC:TP TC 004/2011
BSMI: CNS 14336-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 61000-6-4, KN32, AS/NZS CISPR 32
Compliance to EN/BS EN 55014-1, FCC Title 47, EN/BS EN 61000-6-3 : Class B

Immunity

EN/BS EN 55035, KN35, EN/BS EN 61000-6-2 & Compliance to EN/BS EN 55014-2,EN/BS EN 61000-6-1

Harmonic Current Emissions

IEC/EN/ BS EN 61000-3-2 Class A

(/3) Item(s) selected

PMT-24V200W2BR

Panel Mount

PMT2 Series

PMT-24V200W2BR

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

Unit Weight

Highlights & Features

Applications

PMT-24V200W2BR

PMT-24V200W2BR

Panel Mount

PMT2 Series

PMT-24V200W2BR

Highlights & Features

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions

Unit Weight

Applications

Download

Download

Tech Specs

Tech Specs

Looking for support for this product?

Looking for support for this product?

Related Products

PMT-24V350W2BNJ

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

215 x 115 x 30 mm

8.46” x 4.53” x 1.18”

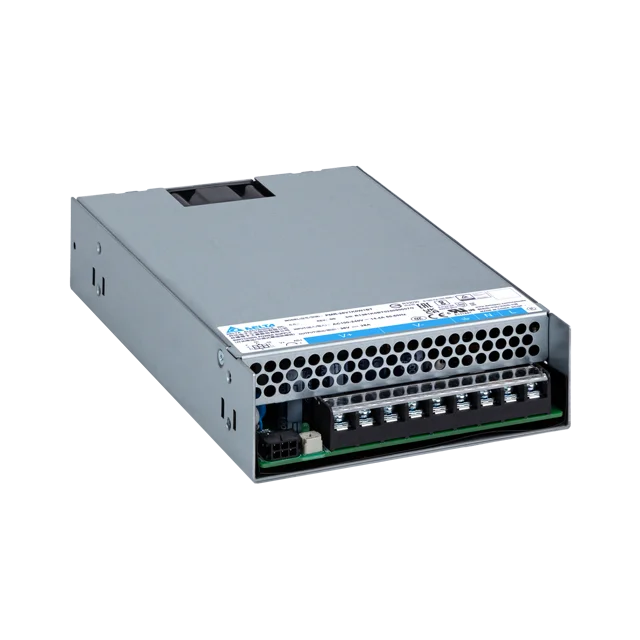

PMR-36V600W1BT
