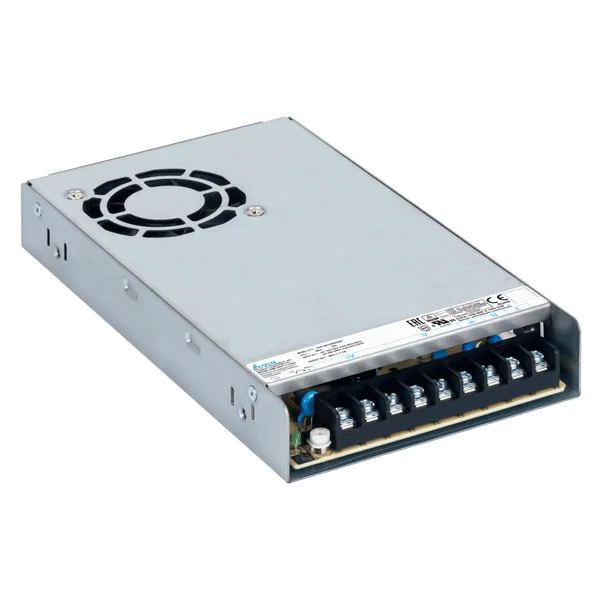

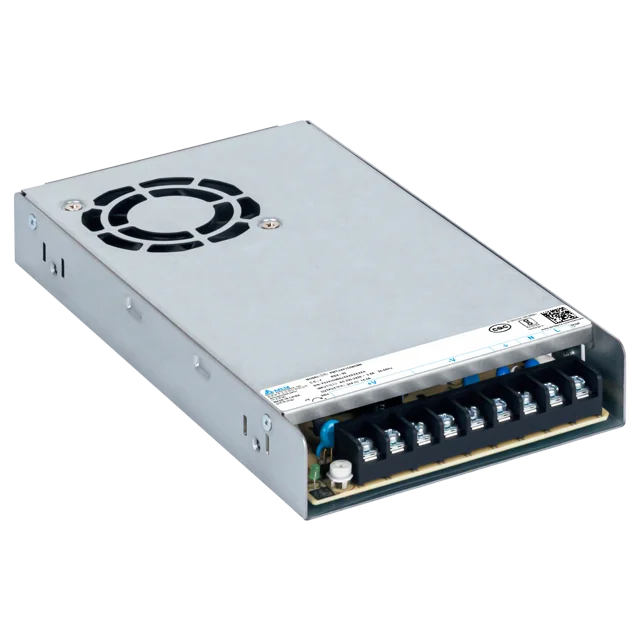

Delta PMT-24V350W2BNJ 24V 350.4W 14.6A Panel Mount PMT2 ECO Series

Download

Datasheet

Uploaded on 31-Oct-2024

Manual

Uploaded on 31-Oct-2024


Uploaded on 06-Nov-2024

Mechanical Drawing

Uploaded on 31-Oct-2024

.DXF

Uploaded on 31-Oct-2024

.STP

Uploaded on 31-Oct-2024

Certificates

BIS

Uploaded on 31-Oct-2024

CQC

Uploaded on 31-Oct-2024

RoHS

Uploaded on 06-Nov-2024

GUI Software

Tech Specs

Output Current

14.6A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4 Vdc

Output Power

350.4W

Line Regulation

± 0.5% typ. @ 180-264 Vac

Load Regulation

± 0.5% typ. @ 180-264 Vac

PARD

< 200 mVpp @ 0°C to 70°C
600 mVpp typ. @ -30°C to 0°C

Start-up Time

1500 ms typ. @ 230 Vac

Hold-up Time

20 ms typ. @ 230 Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

30 ms typ. @ 230 Vac

Nominal Input Voltage

200-240 Vac

Input Voltage Range

180-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

3.4 A typ. @ 230 Vac

Efficiency at 100% load

86.0% typ.

Inrush Current

60 A typ. @ 230 Vac

Leakage Current

< 0.75 mA @ 240 Vac

Case Chassis / Cover SGCC / Aluminium
Indicator Green LED (DC OK)
Cooling System Force Cooling
Input Terminal M3.5 x 9 Pins (Rated 300 V / 20 A)
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12 Current rating can refer to page 6 “Wire AWG Table”
Protection Structure -
Terminal -
Unit Weight 0.833 kg (1.84 lb)	Dimensions 215 x 115 x 30 mm 8.46” x 4.53” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20 Hz to 500 Hz (5G); 10 min per cycle, 60 min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

26.4 V-33.6 V
SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332 (I/P: 230Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Electrical Safety

CB scheme: IEC 62368-1
CQC: GB 4943.1
BIS: IS 13252 (Part 1)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac

Safety Entry Low Voltage

SELV

Emission

(CE & RE)
CISPR 32, EN 55032, Class A

Immunity

EN 55035
