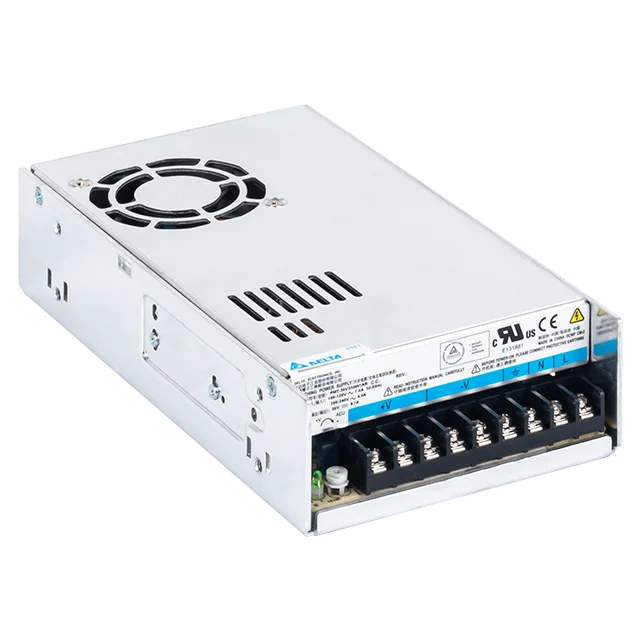

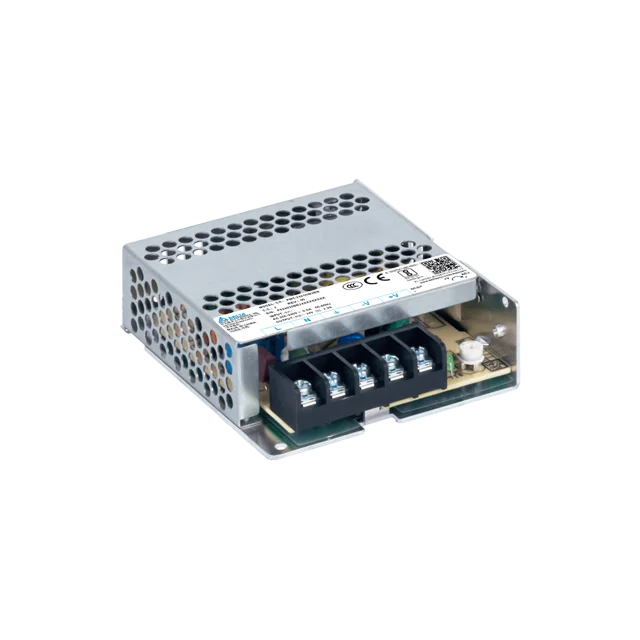

PMT-36V350W1AR

Panel Mount

PMT Series

PMT-36V350W1AR

Output Voltage

36V

Output Power

349.2W

Output Current

9.7A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.83 kg (1.83 lb)

Highlights & Features

AC input voltage range selectable by switch
Full aluminium casing for light weight and corrosion resistant handling
Built-in automatic fan speed control circuit
MTBF > 700,000 hrs as per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature Protections

** NRND **

PMT-36V350W1AR

Recommended Model: PMT-36V350W2BR

Optional Models

Model	Description
PMT-36V350W1AK	Front face conector

Applications

Panel Mount

PMT Series

PMT-36V350W1AR

Highlights & Features

AC input voltage range selectable by switch
Full aluminium casing for light weight and corrosion resistant handling
Built-in automatic fan speed control circuit
MTBF > 700,000 hrs as per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature Protections

** NRND **

PMT-36V350W1AR

Recommended Model: PMT-36V350W2BR

Output Voltage

36V

Output Power

349.2W

Output Current

9.7A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.83 kg (1.83 lb)

Applications

Optional Models

Model	Description
PMT-36V350W1AK	Front face conector

Download

Datasheet

Uploaded on 07-Jun-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 25-Mar-2025

Mechanical Drawing

Uploaded on 18-Dec-2020

.DXF

Uploaded on 18-Dec-2020

.STP

Uploaded on 18-Dec-2020

Certificates

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 21-Apr-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 21-Apr-2021

GUI Software

Tech Specs

Output Current

9.7A

Output Voltage

36V

Output Voltage Adjustment Range

32.4-39.6Vdc

Output Power

349.2W

Line Regulation

± 0.5% typ.

Load Regulation

± 1% typ.

PARD

< 240mVpp

Start-up Time

< 1000ms @ nominal input (100% load)

Hold-up Time

16ms typ. @ 115Vac, 20ms typ. @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 10-50% load and 50-100% load

Start-up with Capacitive Loads

8,000μF Max

Rise Time

< 50ms @ nominal input (100% load)

Nominal Input Voltage

100-120Vac, 200-240Vac (Selectable by Switch)

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

7.00A typ. @115Vac, 4.00A typ. @ 230Vac

Efficiency at 100% load

87.5% typ. @ 230Vac

Inrush Current

40A typ. @ 115Vac, 60A typ. @ 230Vac

Leakage Current

< 3.5mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Forced Cooling
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 52dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 22-12
Protection Structure -
Terminal -
Unit Weight 0.83 kg (1.83 lb)	Dimensions 215 x 115 x 50 mm 8.46” x 4.53” x 1.97”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G peak); 90 min per axis for all X, Y, Z direction

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 3% / V
< 200Vac de-rate power by 3% / V

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms peak; 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Over Voltage Category

Overvoltage

41.4V~48.6V, Latch Mode

Overload / Overcurrent

105%~150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery)

Over Temperature

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

Short Circuit

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016 The Electromagnetic Compatibility Regulations 2016

Emission

(CE&RE)
CISPR 32, EN/BS EN 55032, EN 55011, FCC Title 47: Class B

Immunity

EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

(/3) Item(s) selected

PMT-36V350W1AR

Panel Mount

PMT Series

PMT-36V350W1AR

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

Unit Weight

Highlights & Features

Applications

PMT-36V350W1AR

PMT-36V350W1AR

Panel Mount

PMT Series

PMT-36V350W1AR

Highlights & Features

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions

Unit Weight

Applications

Download

Download

Tech Specs

Tech Specs
