Delta PMT-5V50W1AA 5V 50W 10A Panel Mount PMT Series

Model	Description
PMT-5V50W1AG	Enclosed, front face connector

Model	Description
PMT-5V50W1AG	Enclosed, front face connector

Download

Datasheet

Uploaded on 10-Jul-2024

Manual

Uploaded on 22-Apr-2020


Uploaded on 10-Jul-2024

Mechanical Drawing

Uploaded on 26-May-2022

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

BIS

Uploaded on 26-Jun-2024

Uploaded on 18-Mar-2021

CCC

Uploaded on 26-Jun-2024

CE & UKCA

Uploaded on 24-May-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 18-Mar-2021

GUI Software

Tech Specs

Output Current

10A

Output Voltage

Output Voltage Adjustment Range

4.50-5.50Vdc

Output Power

50W

Line Regulation

< 0.5% typ. (@ 115Vac & 230Vac input, 100% input)

Load Regulation

< 1% typ. (@ 115Vac & 230Vac input, 0-100% input)

PARD

< 80mVpp @ 25°C to 50°C,
< 160mVpp @ -10°C to 0°C

Start-up Time

1,200ms typ.@ 115Vac,
500ms typ. @ 230Vac (100% load)

Hold-up Time

20ms typ. @ 115Vac, 100ms typ. @ 230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% (1000mVp-p) @ 0-100% load (Slew Rate: 0.1A/µS)

Start-up with Capacitive Loads

8,000μF Max

Rise Time

< 30ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

< 1.10A@115Vac, < 0.65A @ 230Vac

Efficiency at 100% load

82.0% typ. @ 230Vac

Inrush Current

45A typ. @ 230Vac

Leakage Current

< 1mA @ 240Vac

Case Chassis / Cover Aluminium / SGCC
Indicator Green LED (DC OK)
Cooling System Convection

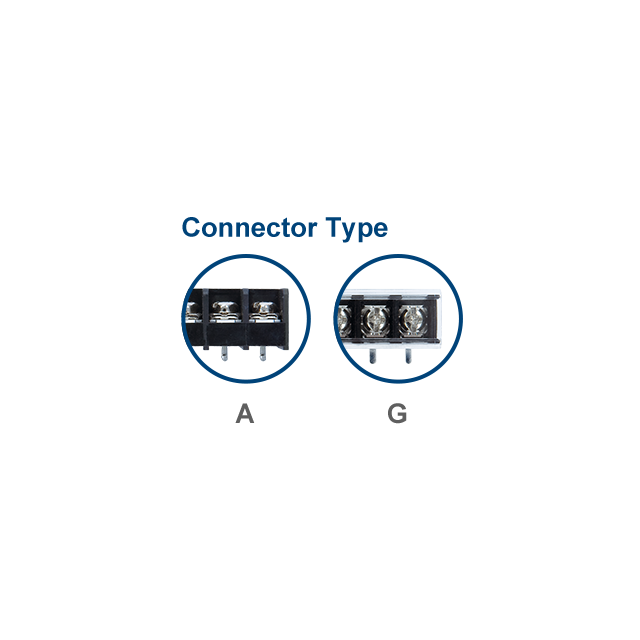

Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.23 kg (0.51 lb)	Dimensions 98 x 98 x 38 mm 3.86” x 3.86” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 1.33% / V
(80% load @ 85Vac)

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Overvoltage

5.75-7.50V, SELV Output, Hiccup Mode,
Non-Latching (Auto-Recovery)

Overload / Overcurrent

105-150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery)

Over Temperature

Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332 I/P: 100Vac, O/P: 100% Load, Ta: 35°C)

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart EN 60950-1, EN 62368-1
UL/cUL recognized UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme IEC 60950-1, IEC 62368-1
BIS IS 13252 (Part 1) (for PMT-5V50W1AA)
CCC GB 4943.1 (for PMT-5V50W1AA)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, FCC Title 47: Class B

Immunity

EN/BS EN 55024
