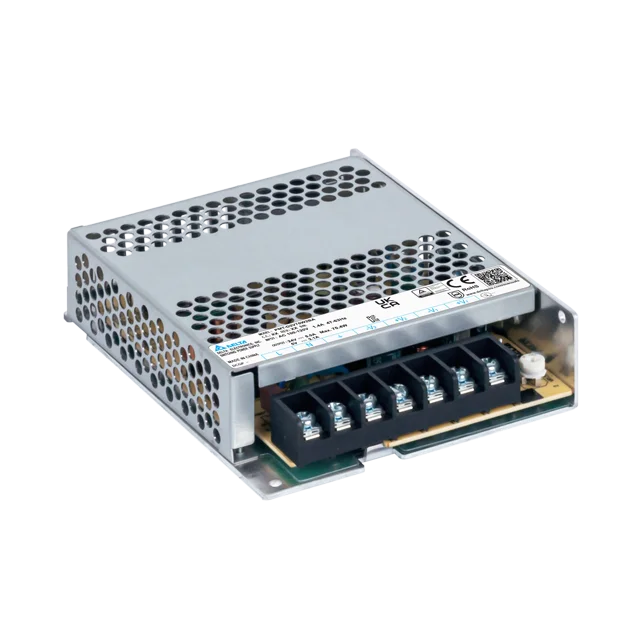

Delta PMT-D1V75W2BA 5V,12V 73W 5A,4A Panel Mount PMT2 Series

Model	Description
PMT-D1V75W2CA	Isolated

Model	Description
PMT-D1V75W2CA	Isolated

Download

Datasheet

Uploaded on 02-Apr-2024

Manual

Uploaded on 06-May-2024


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 15-May-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 16-Jan-2023

CE & UKCA

Uploaded on 21-Jun-2021

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

5A,4A

Output Voltage

5V,12V

Output Voltage Adjustment Range

V1: Fixed; V2: 10.8 – 13.2V

Output Power

73W

Line Regulation

V1 & V2: ±0.5% typ. (@ 115Vac & 230Vac input)

Load Regulation

V1: ±1.5% typ. V2: ±0.5% typ. (@ 115Vac & 230Vac input)

PARD

V1: <100mVpp, V2: <120mVpp @ 0°C to 70°C
V1: 300mVpp,V2:360mVpp typ @ -30°C to 0°C

Start-up Time

500ms typ. @ 115Vac & 230Vac

Hold-up Time

10ms typ. @ 115Vac, 50ms typ. @ 230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 230Vac input, 10-100% load (Slew Rate: 2.5A/μS, 50% duty cycle @ 5Hz & 10KHz)

Start-up with Capacitive Loads

V1 & V2 : 8000uF Max

Rise Time

30ms typ. @ 115Vac & 230Vac

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.4A typ. @ 115Vac, 0.85A typ. @ 230Vac

Efficiency at 100% load

83% typ. @ 230Vac

Inrush Current

55A typ. @ 230Vac

Leakage Current

< 0.5mA @ 240Vac/50Hz

Case Chassis / Cover Aluminium / SGCC
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal M3.5 x 7 Pins (Rated 300V/20A)
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12 Current rating can refer to page6 “Wire AWG Table”
Protection Structure -
Terminal -
Unit Weight 0.276 kg (0.61 lb)	Dimensions 129 x 97 x 30 mm 5.08” x 3.82” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20Hz to 500Hz (5G); 10min per cycle, 60min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3 shock for each 3 directions.

Operating Temperature

-30°C to +70°C (-40°C Cold Start)

Storage Temperature

-40°C to +85°C

Power De-rating

> 40°C de-rate power by 1.67% / °C
< 100Vac de-rate power by 1.33% / V
(86.67% load @ 90Vac)

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

V1: 5.5 - 7.5V;
V2: 13.2 - 17.4V ;
Latch Mode

Overload / Overcurrent

V1 > 110% of rate load current, Hiccup Mode, Non-Latching (Auto-Recovery)
V2 >110% of rate load current, Hiccup Mode, Non-Latching (Auto-Recovery)
(when V2 auto-recovery, V1 auto-recovery)

Over Temperature

V1: Hiccup Mode, Non-Latching (Auto-Recovery)
V2: Latch (when V2 latch, V1 latch)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery)
(Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with PE connection

MTBF

> 700,000 hrs as per Telcordia SR-332
I/P: 230Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1, EN 60335-1, EN 61558-1/-2-16
UL/cUL: UL 62368-1, and CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16,
KC: K 60950-1
EAC: TP TC 004/2011

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground:1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 61000-6-4, KN32
Compliance to EN/BS EN 55014-1, FCC Title 47, EN/BS EN 61000-6-3 : Class B

Immunity

EN/BS EN 55035, KN 35, EN/BS EN 61000-6-2
Compliance to EN/BS EN 55014-2,EN/BS EN 61000-6-1

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A
