PMU-13V155WCCA

Panel Mount

PMU Series

PMU-13V155WCCA

Output Voltage

13.8V

Output Power

151W

Output Current

9.5A,1.5A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.60 kg (1.32 lb)

Highlights & Features
  • AC input voltage range selectable by switch
  • LED indicators for DC OK (Green) and Battery Reverse Polarity Connection (Red)
  • Zero switch-over time from loss of AC, to battery operation
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Monitoring Signals for AC OK, DC OK and Battery Low indication
  • Overvoltage / Overcurrent / Over temperature / Short circuit protections
  • Built-in over current and short circuit protection in Buffering (battery discharging) mode operation
  • Certified according to IEC/EN/UL 62368-1


Tags
PMU-13V155WCBA, PMU-13V155WLCA, PMU-13V155WLBA
Applications


PMU-13V155WCCA
PMU-13V155WCCA

Panel Mount

PMU Series

PMU-13V155WCCA

Highlights & Features
  • AC input voltage range selectable by switch
  • LED indicators for DC OK (Green) and Battery Reverse Polarity Connection (Red)
  • Zero switch-over time from loss of AC, to battery operation
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Monitoring Signals for AC OK, DC OK and Battery Low indication
  • Overvoltage / Overcurrent / Over temperature / Short circuit protections
  • Built-in over current and short circuit protection in Buffering (battery discharging) mode operation
  • Certified according to IEC/EN/UL 62368-1


Output Voltage

13.8V

Output Power

151W

Output Current

9.5A,1.5A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.60 kg (1.32 lb)

Applications
Tags
PMU-13V155WCBA, PMU-13V155WLCA, PMU-13V155WLBA

Download

Download

Datasheet

Uploaded on 03-Nov-2021

Manual

Uploaded on 26-Aug-2021


Uploaded on 03-Nov-2021

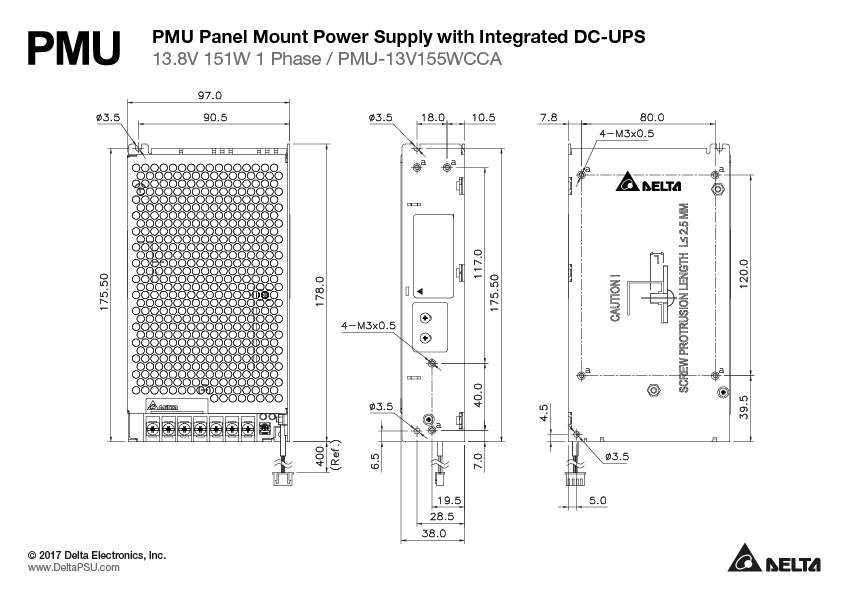

Mechanical Drawing
