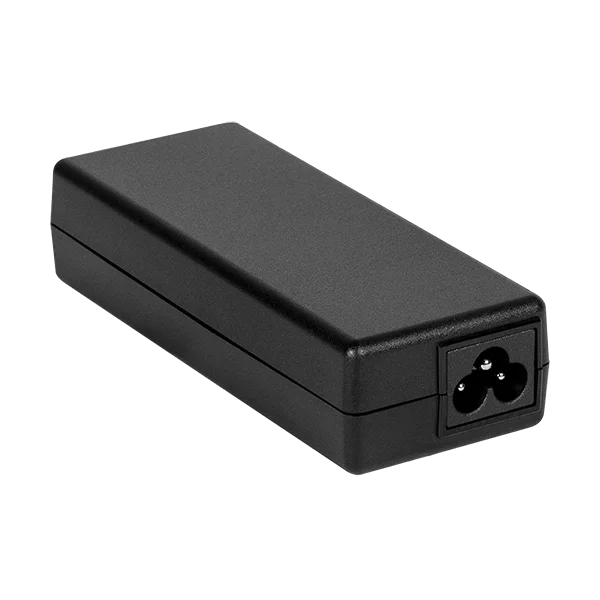

Delta ADT-090A24AA 24V 90W 3.75A 適配器 ADT Series

資源下載

Datasheet

Uploaded on 05-Aug-2021

Manual

Uploaded on 22-Nov-2023


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 23-Jun-2020

.DXF

Uploaded on 17-Jun-2020

.STP

Uploaded on 17-Jun-2020

認證

BSMI

Uploaded on 17-Jun-2020

Uploaded on 17-Jan-2023

CCC

Uploaded on 17-Jun-2020

Uploaded on 23-May-2022

CE & UKCA

Uploaded on 05-Aug-2021

Uploaded on 17-Jun-2020

PSE

Uploaded on 17-Jun-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

Uploaded on 17-Jun-2020

GUI Software

Tech Specs

輸出電流

3.75A

輸出電壓

24V

輸出功率

90W

線電壓調整率

± 0.5%

負載調整率

± 4.5%

紋波電壓

240 mV pk-pk @ 0 to 40°C
480 mV pk-pk @ -10 to 0°C

開機時間

1000 ms @ 115Vac, 500 ms @ 230Vac

保持時間

30 ms @ nominal input, full load

升壓時間

40ms @ nominal input, full load

額定輸入電壓

100-240Vac

輸入電壓範圍

90-264Vac

額定輸入頻率

50-60Hz

輸入電流

1.3A max. @ 115Vac, 0.6A max. @ 230Vac

100% 負載效率

90% typ. @ 115Vac, 91.55% typ. @ 230Vac

浪湧電流

No damage

功率因數

0.9 min. @ 230Vac, Rated output current

漏電流

0.1mA @ 240Vac/50Hz

底架 / 外殼 PC
指示燈 -
冷卻方式 Convection
輸入端 Socket C6 type
輸出端 Barrel (O.D: 5.5mm, I.D: 2.5mm, length: 11mm)
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.18kg (0.40 lb)	尺寸 126 x 51 x 30 mm 4.96” x 2.01” x 1.18”

運行溫度

-10°C to +60°C

儲存溫度

-40°C to +85°C

功率降額

>40°C de-rated by 2.5%/°C

運行濕度

5%-95% RH (non-condensing)

衝擊測試（非運行狀態）

50G, 11ms, 1 shock for each direction

振動測試（非運行狀態）

5-500Hz, 2.09Grms, 20mins, one cycle for each three axis

運行高度

5,000 meters (16,400 feet)

過壓保護

33V, Latch

超負載/過電保護

120-180% , Latch

過溫保護

Latch Mode

短路保護

Latch Mode

電擊防護等級

Class I with function earth

MTBF

> 300,000 hrs. per Telcordia SR-332
at Input: 115Vac, Output: 100% load, Ta: 25°C

預計最長使用壽命

5 years (50% load @ 25°C)

電氣安全

IEC/EN 60950-1 ; IEC/UL/EN 62368-1
BSMI CNS14336-1
CCC GB4943.1
PSE J60950-1 (H29)
KC K60950-1

Comply with EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU

電隔離

I/P to O/P: 3000Vac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

輻射與傳導

CISPR/EN/BS EN 55032 Class B
BSMI CNS13438
FCC Part 15
GB/T9254
KN32

抗擾度

EN/BS EN 55024; KN35

諧波電流排放

IEC 61000-3-2 Class D; GB17625.1-2003

ESD 抗擾度

Level 4 Criteria A
Air Discharge: 15kV
Contact Discharge:8kV

輻射抗擾度

Level 2 Criteria A
80MHz-1GHz, 3V/m , 80% AM(1KHz)

EFT

Level 2 Criteria A: 2kV

電湧

Level 3 Criteria A
Common Mode: 2kV
Differential Mode: 1kV

傳導抗擾度

Level 2 Criteria A
150kHz-80MHz, 3Vrms, Sine Wave, 80%, AM modulation

磁場

Level 2 Criteria A
Magnetic field strength 1A/m

電壓驟降

Voltage dips
70% reduction/0.5 periods (Criterion A)
40% reduction/5 periods (Criterion B)
Voltage short interruptions
5% reduction/250 periods (Criterion B2)
