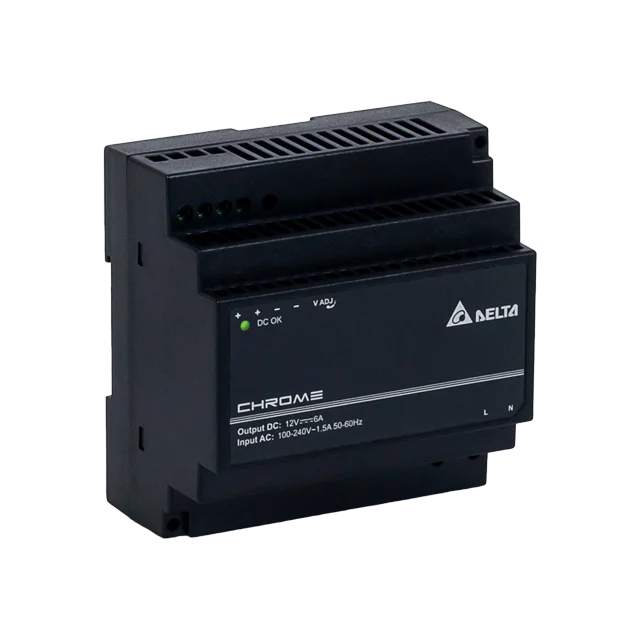

Delta DRC-12V100W1AZ 12V 72W 6A 導軌型電源 CHROME Series

資源下載

Datasheet

Uploaded on 09-Jul-2021

Manual

Uploaded on 25-May-2021


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 03-Jan-2021

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 13-Sep-2022

CE & UKCA

Uploaded on 04-May-2021

EAC

Uploaded on 29-Apr-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 03-Jan-2021

GUI Software

Tech Specs

輸出電流

輸出電壓

12V

輸出電壓調整範圍

12-14Vdc

輸出功率

72W

線電壓調整率

< 0.5% (@ 90-264Vac, 100% load)

負載調整率

< 1.0% (@ 90-264Vac input, 0-100% load)

紋波電壓

< 100mVpp

開機時間

< 2,000ms @ nominal input (100% load)

保持時間

> 20ms @ 115Vac,
> 100ms @ 230Vac (100% load)

動態回應

± 5% @ 90-264Vac input, 10-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz)

電容性負載啟動

3,000μF Max

升壓時間

< 70ms @ nominal input (100% load)

額定輸入電壓

100-240Vac

輸入電壓範圍

90-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

直流輸入電壓範圍

125-375Vdc

輸入電流

< 1.50A @ 115Vac,
< 1.00A @ 230Vac

100% 負載效率

> 86.0% @ 115Vac & 230Vac

浪湧電流

< 30A @ 115Vac,
< 65A @ 230Vac

漏電流

< 0.25mA @ 264Vac

功率損耗

0% load: < 0.4W @ 115Vac & 230Vac
100% load: < 11.7W @ 115Vac & 230Vac

底架 / 外殼 Plastic
指示燈 Green LED (DC OK)
冷卻方式 Convection
輸入端 2 Pins (Rated 300V/25A)
輸出端 4 Pins (Rated 300V/25A)
信號端 -
聲壓級（SPL） < 25dBA
輸入/輸出端 -
信號 -
安裝導軌 Standard TS35 DIN Rail in accordance with EN 60715
電線 Input/Output: AWG 18-12
保護結構 -
端子台 -
重量 0.36 kg (0.79 lb)	尺寸 91 x 89.9 x 55.6 mm 3.58” x 3.54” x 2.19”

振動測試（運行狀態）

IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions

衝擊測試（運行狀態）

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis

運行溫度

-25°C to +71°C

儲存溫度

-40°C to +85°C

功率降額

> 55°C de-rate power by 2.5% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total

振動測試（非運行狀態）

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

運行高度

0 to 2,000 Meters (6,560 ft.)

污染程度

過壓類別

過壓保護

< 19.0V, SELV Output, Latch Mode

超負載/過電保護

120-150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

過溫保護

< 75°C Surrounding Air Temperature @ 100% load, Latch Mode

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防護等級

IP20

電擊防護等級

Class II (No Primary Earth connection is required)

MTBF

> 500,000 hrs. as per Telcordia SR-332 (I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C)

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

TUV Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1, Limited Power Source (LPS)
UKCA: BS EN 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac

工業控制設備

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

(CE & RE)
Generic Standards: CISPR 32, EN/BS EN 55032, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
