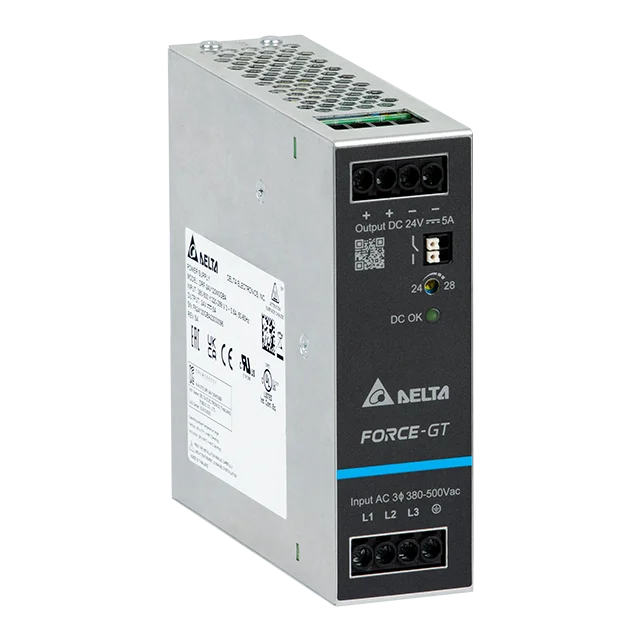

Delta DRF-24V120W3GBA 24V 120W 5A 導軌型電源 Force-GT Series

Model	Description

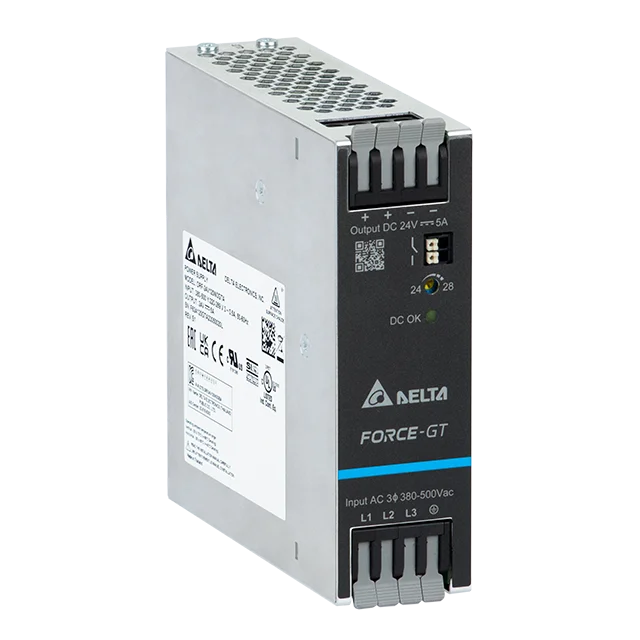

DRF-24V120W3GTA	Spring Clamp Terminal

Model	Description
DRF-24V120W3GTA	Spring Clamp Terminal

資源下載

Datasheet

Uploaded on 05-Dec-2024

Manual

Uploaded on 13-Mar-2024


Uploaded on 14-Nov-2024

Mechanical Drawing

Uploaded on 15-Nov-2024

.DXF

Uploaded on 23-Nov-2023

.STP

Uploaded on 23-Nov-2023

認證

BIS

Uploaded on 26-Aug-2024

Uploaded on 01-Aug-2023

Uploaded on 17-May-2022

EAC

Uploaded on 17-May-2022

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 17-May-2022

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 17-May-2022

GUI Software

Tech Specs

輸出電流

輸出電壓

24V

輸出電壓調整範圍

24-28 Vdc

輸出功率

120W

線電壓調整率

< 40 mV (@ 3 x 320-575 Vac input, 100% load)

負載調整率

< 100 mV (@ 3 x 320-575 Vac input, 0-100% load)

紋波電壓

< 100 mVpp

開機時間

500 ms typ. @ nominal input (100% load)

保持時間

20 ms typ. @ 3 x 400 Vac (100% load)
40 ms typ. @ 3 x 500 Vac (100% load)

動態回應

± 5% @ 3 x 320-575 Vac input, 0-100% load (Slew Rate: 0.1 A/μs, 50% duty cycle @ 5 Hz to 1 kHz)

電容性負載啟動

10,000 µF Max

升壓時間

50 ms typ. @ nominal input (100% load)

額定輸入電壓

3 x 380-500 Vac

輸入電壓範圍

3 x 320-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase)

額定輸入頻率

50-60 Hz

輸入頻率範圍

47-63Hz

直流輸入電壓範圍

450-800 Vdc

輸入電流

< 0.50 A @ 3 x 400 Vac,
< 0.40 A @ 3 x 500 Vac

100% 負載效率

87.5% typ. @ 3 x 400 Vac & 3 x 500 Vac

浪湧電流

20 A typ. @ 3 x 400 Vac, 25 A typ. @ 3 x 500 Vac

功率因數

> 0.45 @ 3 x 400 Vac,
> 0.40 @ 3 x 500 Vac

漏電流

< 3.5 mA @ 3 x 500 Vac

功率損耗

0% load: < 3 W @ 3 x 400 Vac & 3 x 500 Vac
100% load: < 17 W @ 3 x 400 Vac & 3 x 500 Vac

底架 / 外殼 Aluminium
指示燈 Green LED DC OK
冷卻方式 Convection
輸入端 4 Pins (Rated 600 V / 30 A)
輸出端 4 Pins (Rated 600 V / 30 A)
信號端 2 Pins (Rated 300 V / 12 A)
聲壓級（SPL） < 25 dBA
輸入/輸出端 -
信號 -
安裝導軌 Standard TS35 DIN Rail in accordance with EN 60715
電線 Input: AWG 18-10 Output: AWG 18-10 Signal: AWG 20-16
保護結構 -
端子台 -
重量 0.54 kg (1.19 lb)	尺寸 124 x 38 x 125.3 mm 4.88” x 1.50” x 4.93”

振動測試（運行狀態）

IEC 60068-2-6, Sine Wave: 10-500 Hz; 3G peak; 60 min per axis for all X, Y, Z directions

運行溫度

3-Phase
-40°C to +70°C
2-Phase
-40°C to +60°C

儲存溫度

-40°C to +85°C

功率降額

Vertical Mounting: > 55°C de-rate power by 3.33% / °C
Horizontal Mounting: > 40°C de-rate power by 2.5% / °C
Input Voltage:
2-Phase
< 2 x 380 Vac de-rate power by 0.5% / V

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction

運行高度

OVC III
0 to 2,500 Meters (8,200 ft.)
OVC II
2,500 to 6,000 Meters (19,680 ft.)
0 to 5,000 Meters (16,400 ft.)

污染程度

過壓類別

IEC/EN 62477-1, EN 60204-1, IEC 62103
OVC III: 0 to 2,500 Meters (8,200 ft.)
OVC II: 2,500 to 6,000 Meters (19,680 ft.)
IEC/EN 62368-1, IEC/EN 61010
OVC II: 0 to 5,000 Meters (16,400 ft.)

過壓保護

< 35 V, Hiccup Mode, Non-Latching (Auto-Recovery)

超負載/過電保護

105 – 150% of rated load current, Auto-recovery
Continuous current limit Mode (Vo > 80%)

過溫保護

60°C-80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防護等級

IP20

電擊防護等級

Class I with Primary Earth connection

MTBF

Telcordia SR-332: > 700,000 hrs.
I/P: 3 x 400 Vac & 3 x 500 Vac, O/P: 100% load, Ta: 25°C

預計最長使用壽命

10 Years
I/P: 3 x 400 Vac & 3 x 500 Vac, O/P: 24 V, 2.5 A, Ta: 40°C

電氣安全

SIQ Bauart: EN 62368-1, EN 61010-1, EN 61010-2-201, EN 62477-1
UL/cUL recognized: UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 61010-1, IEC 61010-2-201
UKCA: BS EN 62368-1, BS EN 61010-1, BS EN 61010-2-201
EAC: TP TC 004/2011
BIS: IS 13252 (Part 1)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 4.0 kVac
Input to Ground: 2.0 kVac
Output to Ground: 1.5 kVac
DC OK relay contact to Output: 0.5 kVac
DC OK relay contact to Ground: 1.5 kVac

機器電氣設備

EN/BS EN 60204-1 (over voltage category III)

用於電率安裝的電氣設備

IEC/EN/BS EN 62477-1 / IEC 62103

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

Electrical Equipment for Measurement, Control, and Laboratory Use

UL 61010-1, UL 61010-2-201 (File No. E315355)

輻射與傳導

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3, CISPR 32, EN/BS EN 55032, KS C 9832, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024, EN/BS EN 55035, KS C 9835, EN/BS EN 61000-6-1

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

通用用途之部件供電

EN/BS EN 61204-3
