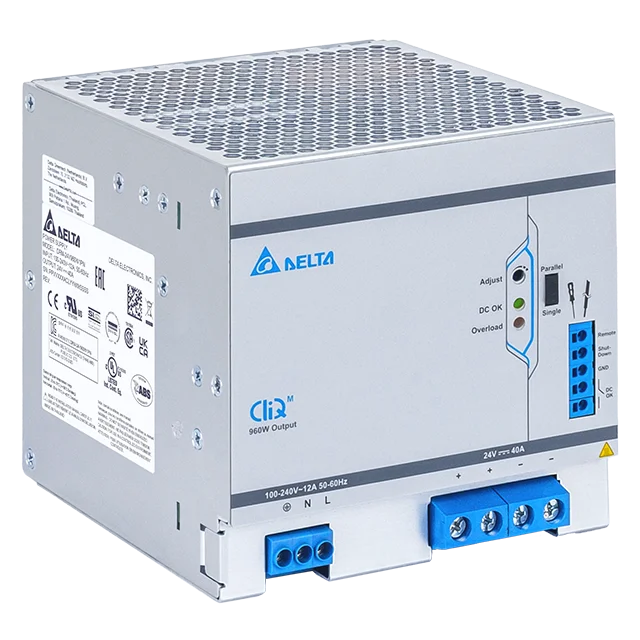

Delta DRM-24V960W1PN 24V 960W 40A 導軌型電源 CliQ M Series

資源下載

Datasheet

Uploaded on 01-Nov-2021

Manual

Uploaded on 17-Dec-2020


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

ABS

Uploaded on 22-Apr-2020

Uploaded on 17-Dec-2020

Uploaded on 01-Nov-2021

CSA

Uploaded on 17-Dec-2020

DNV GL

Uploaded on 03-Sep-2021

EAC

Uploaded on 22-Apr-2020

Uploaded on 17-Dec-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 17-Dec-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 01-Nov-2021

Uploaded on 17-Dec-2020

GUI Software

Tech Specs

輸出電流

40A

輸出電壓

24V

輸出電壓調整範圍

24-28Vdc

輸出功率

960W

線電壓調整率

10mV Max. (@ 85-264Vac input, 100% load)

負載調整率

50mV Max. (@ single mode, 0-100% load)
1000mV Typ. (@ parallel mode, 0-100% load)

紋波電壓

100mVpp Max.

開機時間

800ms Max. @ 100Vac & 120Vac & 230Vac

保持時間

24ms Typ. @ 100Vac & 120Vac & 230Vac (100% load)

動態回應

± 5% @ 0.7-40A load
Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)

電容性負載啟動

40,000µF Max.

升壓時間

75ms Max. @ 100Vac & 120Vac & 230Vac (0µF, 24V, 40A)
75ms Max. @ 100Vac & 120Vac & 230Vac (40,000µF, 24V, 40A)

峰值功率持續時間

5 seconds Typ.
7 seconds Max.

峰值功率回復時間

17 seconds Typ.

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

10.50A Typ. @ 100Vac, 8.60A Typ. @ 120Vac, 4.50A Typ. @ 230Vac

100% 負載效率

94.10% Typ. @ 100Vac, 94.71% Typ. @ 120Vac, 95.98% Typ. @ 230Vac

浪湧電流

11A Max. @ 100Vac, 13A Max. @ 120Vac, 20A Max. @ 230Vac

功率因數

0.99 Typ. @ 100Vac, 0.99 Typ. @ 120Vac, 0.96 Typ. @ 230Vac

漏電流

(Enclosure to Neutral)
0.50mA / 1.21mA @ 110Vac, 50Hz, TN/TT system / IT system
0.71mA / 1.73mA @ 132Vac, 50Hz, TN/TT system / IT system
1.18mA / 2.82mA @ 264Vac, 50Hz, TN/TT system / IT system

功率損耗

0% load:
5.58W Typ. @ 100Vac, 4.61W Typ. @ 120Vac, 3.70W Typ. @ 230Vac
13.9W Max. @ 100Vac, 13.1W Max. @ 120Vac, 13.2W Max. @ 230Vac

100% load:
60.32W Typ. @ 100Vac, 53.71W Typ. @ 120Vac, 40.21W Typ. @ 230Vac
70.00W Max. @ 100Vac, 65.60W Max. @ 120Vac, 54.80W Max. @ 230Vac

底架 / 外殼 Aluminium
指示燈 Green LED (DC OK) and Red LED (Overload)
冷卻方式 Convection
輸入端 3 Pins (Rated 600V/35A)
輸出端 4 Pins (Rated 300V/65A)
信號端 5 Pins (Rated 300V/10A)
聲壓級（SPL） < 25dBA
輸入/輸出端 -
信號 -
安裝導軌 Standard TS35 DIN Rail in accordance with EN 60715
電線 Input: AWG 14-8 Output: AWG: 10-6 Signal: AWG 20-16
保護結構 -
端子台 -
重量 2.87 kg (6.33 lb)	尺寸 124 x 125 x 133.6 mm 4.88” x 4.92” x 5.26”

運行溫度

-25°C to +70°C (Cold start -40°C)

儲存溫度

-40°C to +85°C

功率降額

Vertical Mounting:
Temperature: > 60°C de-rate power by 2.5% / °C
Input Voltage: If < 90Vac, > 55°C de-rate power by 1.67% / °C
Horizontal Mounting:
Temperature: > 40°C de-rate power by 1.67% / °C
Input Voltage: If < 90Vac, > 35°C de-rate power by 1.43% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 6 times in total

振動測試（非運行狀態）

IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

運行高度

0 to 5,000 Meters (16,400 ft.)
0 to 2,500 Meters (8,200 ft.) for IEC/EN 61558

污染程度

碰撞試驗（運行狀態）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

過壓類別

III
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)

過壓保護

< 32V, SELV Output, Hiccup Mode, Non-Latching (Auto- Recovery)

超負載/過電保護

> 150% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)

過溫保護

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防護等級

IP20

電擊防護等級

Class I with Primary Earth connection

MTBF

513,800 hrs. (I/P: 100Vac, O/P: 24V, 40A, Ta: 25°C)
312,900 hrs. (I/P: 100Vac, O/P: 24V, 40A, Ta: 40°C)

預計最長使用壽命

131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 40A, Ta: 25°C)
131,400 hrs. @ 100Vac & 230Vac (O/P: 24V, 20A, Ta: 25°C)
60,000 hrs. @ 100Vac (O/P: 24V, 40A, Ta: 40°C)
92,000 hrs. @ 230Vac (O/P: 24V, 40A, Ta: 40°C)
131,400 hrs. @ 100Vac (O/P: 24V, 20A, Ta: 40°C)
115,400 hrs. @ 230Vac (O/P: 24V, 20A, Ta: 40°C)

電氣安全

SIQ Bauart: EN 62368-1, EN 61558-1, EN 61558-2-16, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 61558-1, IEC 61558-2-16, IEC 61010-1, IEC 61010-2-201
UKCA: BS EN 62368-1, BS EN 61558-1, BS EN 61558-2-16, BS EN 61010-1, BS EN 61010-2-201

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input / Output: 4.54KVac
Input / PE: 2.5KVac
Input / DC OK relay contact: 4.54KVac (Recommend to connect DC OK pins together with output pins)
Output / PE: 1.5KVac
Output / DC OK relay contact: 0.5KVac
DC OK relay contact / PE: 1.5KVac

工業控制設備

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA: CSA C22.2 No. 107.1-01 (File No. 181564)

機器電氣設備

EN/BS EN 60204-1 (over voltage category III)

用於電率安裝的電氣設備

IEC/EN/BS EN 62477-1 / IEC 62103

安全特低電壓

SELV (IEC 60950-1)

海事

DNV GL: Germanischer Lloyd classified
ABS: American Bureau for Shipping) PDA Environmental category: C, EMC2

隔離電阻

> 5MOhm (Input to Output, 500Vdc)

PE 電阻

< 0.1Ohm

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3 CISPR 32, EN/BS EN 55032, KN 32, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024, KN 35, EN/BS EN 61000-6-2

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

通用用途之部件供電

EN/BS EN 61204-3
