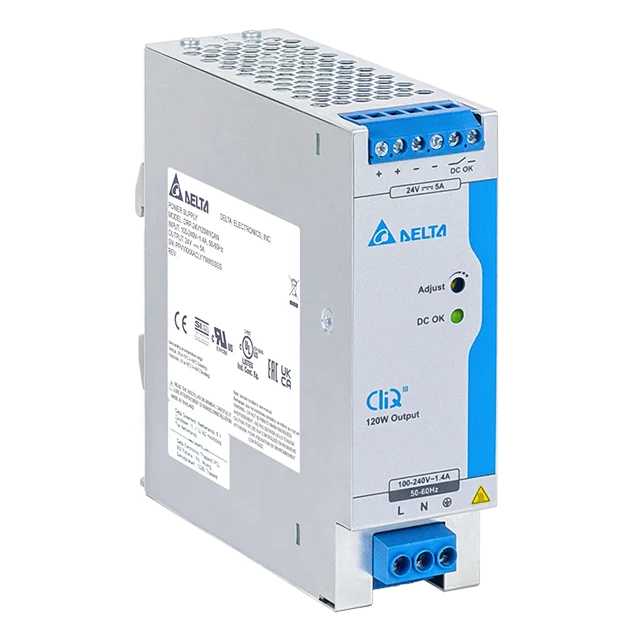

Delta DRP-24V120W1CAN 24V 120W 5A 導軌型電源 CliQ III Series

Model	Description
DRP-24V120W1CBN	Certified for AC & DC input

Model	Description
DRP-24V120W1CBN	Certified for AC & DC input

資源下載

Datasheet

Uploaded on 29-Dec-2021

Manual

Uploaded on 07-Dec-2020


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 07-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 07-Dec-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 29-Dec-2021

Uploaded on 07-Dec-2020

GUI Software

Tech Specs

輸出電流

輸出電壓

24V

輸出電壓調整範圍

24-28Vdc

輸出功率

120W

線電壓調整率

0.5% (@ 88-264Vac input, 100% load)

負載調整率

1.0% (@ 88-264Vac input, 0-100% load)

紋波電壓

100mVpp Max.

開機時間

1,500ms Max. @ 24V, 5A

保持時間

35ms Typ. @ 24V, 5A
20ms Min. @ 24V, 5A

動態回應

± 5% @ 0-100% load
Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)

電容性負載啟動

10,000µF

升壓時間

60ms Max. @ 24V, 5A

峰值功率持續時間

5 seconds Min.

峰值功率回復時間

18 seconds Typ.

額定輸入電壓

100-240Vac

輸入電壓範圍

88-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

直流輸入電壓範圍

100-375Vdc (Continuously operating, with safety approval according to IEC/EN/UL 60950-1)
88-100Vdc (With power de-rating)

輸入電流

1.18A Typ. @ 115 Vac, 0.61A Typ. @ 230Vac

100% 負載效率

89.92% Typ. @ 115Vac, 91.49% Typ. @ 230Vac

浪湧電流

(Cold Start)
12.4A Typ. @ 115Vac, 25.6A Typ. @ 230Vac, 35A Max. @ 115Vac, 70A Max. @ 230Vac

功率因數

0.98 Typ. @ 115Vac, 0.95 Typ. @ 230Vac, 0.96 Min. @ 115Vac, 0.93 Min. @ 230Vac

漏電流

(Enclosure to Neutral)
< 0.20mA / 0.50mA: 110Vac, 50Hz, TN/TT system / IT system
< 0.24mA / 0.60mA: 132Vac, 50Hz, TN/TT system / IT system
< 0.47mA / 1.20mA: 264Vac, 50Hz, TN/TT system / IT system

功率損耗

At 24V, 0A: 3.31W Typ. @ 115Vac, 3.20W Typ. @ 230Vac, 5.0W Max. @ 115Vac, 5.0W Max. @ 230Vac
At 24V, 5A: 13.46W Typ. @ 115Vac, 11.16W Typ. @ 230Vac, 14.0W Max. @ 115Vac, 13.0W Max. @ 230Vac

底架 / 外殼 Aluminium
指示燈 Green LED (DC OK)
冷卻方式 Convection
輸入端 3 Pins (Rated 600V/35A)
輸出端 4 Pins (Rated 300V/28A)
信號端 2 Pins (Rated 300V/28A)
聲壓級（SPL） < 25dBA
輸入/輸出端 -
信號 -
安裝導軌 Standard TS35 DIN Rail in accordance with EN 60715
電線 Input: AWG 18-8 Output: AWG 18-12 Signal: AWG 18-12
保護結構 -
端子台 -
重量 0.58 kg (1.28 lb)	尺寸 124 x 40 x 117 mm 4.88” x 1.57” x 4.61”

運行溫度

-25°C to +70°C (Cold start -40°C)

儲存溫度

-40°C to +85°C

功率降額

Vertical Mounting: > 60°C de-rate power by 2.5% / °C
Horizontal Mounting: > 40°C de-rate power by 1.67% / °C
Input Voltage:
AC input < 100Vac de-rate power by 0.83% / V
DC input < 100Vdc de-rate power by 1.67% / V

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 9 times in total

振動測試（非運行狀態）

IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

運行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

碰撞試驗（運行狀態）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

過壓類別

III (operating altitude 2,500 Meters)
II (operating altitude 5,000 Meters)
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)

過壓保護

28.8 - 35.2V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超負載/過電保護

125 – 170% of rated load current, Constant current, Hiccup Mode (Auto-Recovery)

過溫保護

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed): Load impedance ≤ 100mOhm

防護等級

IP20

電擊防護等級

Class I with Primary Earth connection

MTBF

1,411,300 hrs.: I/P: 115Vac, O/P: 24V, 5A, Ta: 25°C
842,900 hrs.: I/P: 115Vac, O/P: 24V, 5A, Ta: 40°C

預計最長使用壽命

O/P: 24V, 5A, Ta: 25°C: 131,400hrs. @ 115Vac & 230Vac
O/P: 24V, 2.5A, Ta: 40°C: 131,400hrs. @ 115Vac & 230Vac
O/P: 24V, 5A, Ta: 60°C: 21,100hrs. @ 115Vac, 32,700hrs. @ 230Vac
O/P: 24V, 3.75A, Ta: 60°C: 29,700hrs.@ 115Vac, 47,300hrs. @ 230Vac

電氣安全

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
UKCA: BS EN 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Input to DC OK relay contact: 4.0 KVac
Output to Ground: 1.5 KVac
Output to DC OK relay contact: 0.5 KVac
DC OK relay contact to PE: 1.5 KVac

工業控制設備

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

機器電氣設備

EN/BS EN 60204-1 (over voltage category III)

用於電率安裝的電氣設備

IEC/EN 62477-1 / IEC 62103

安全特低電壓

SELV (IEC 60950-1)

PE 電阻

< 0.1 Ohm

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

(CE & RE)
Generic Standards: EN/BS EN 61000-6-3 CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

通用用途之部件供電

EN/BS EN 61204-3
