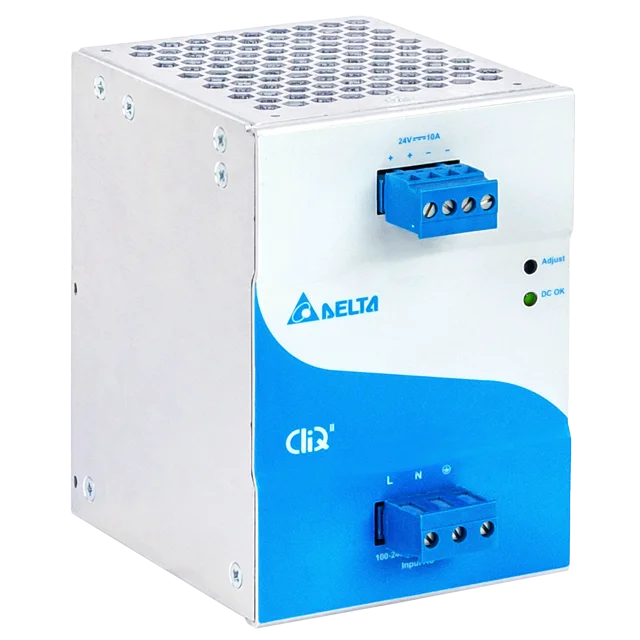

Delta DRP024V240W1BA 24V 240W 10A 導軌型電源 CliQ II Series

Model	Description
DRP024V240W1BN	Without Class I, Div 2 and ATEX

Model	Description
DRP024V240W1BN	Without Class I, Div 2 and ATEX

資源下載

Datasheet

Uploaded on 25-Jun-2024

Manual

Uploaded on 23-Jun-2021


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 13-Nov-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

ATEX

Uploaded on 17-Sep-2021

BIS

Uploaded on 25-Jun-2024

BSMI

Uploaded on 23-Jun-2021

Uploaded on 13-Sep-2022

CCC

Uploaded on 23-Jun-2021

Uploaded on 29-Apr-2022

CSA

Uploaded on 26-Nov-2020

EAC

Uploaded on 22-Apr-2020

Hazloc

Uploaded on 15-Dec-2020

Uploaded on 23-Jun-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 13-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 29-Apr-2022

Uploaded on 13-Nov-2020

GUI Software

Tech Specs

輸出電流

10A

輸出電壓

24V

輸出電壓調整範圍

24-28Vdc

輸出功率

240W

線電壓調整率

< 0.5% (@ 85-264Vac input, 100% load)

負載調整率

< 1.0% (@ 85-264Vac input, 0-100% load)

紋波電壓

< 150mVpp

開機時間

< 1,000ms @ nominal input (100% load)

保持時間

> 20ms @ 115Vac & 230Vac (100% load)

動態回應

± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

電容性負載啟動

10,000µF Max

升壓時間

< 100ms @ nominal input (100% load)

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

直流輸入電壓範圍

120-375Vdc

輸入電流

< 2.50A @ 115Vac,
< 1.30A @ 230Vac

100% 負載效率

> 90.0% @ 115Vac,
> 92.0% @ 230Vac

浪湧電流

< 35A @ 115Vac & 230Vac

功率因數

> 0.96 @ 115Vac
> 0.90 @ 230Vac

漏電流

< 1mA @ 240Vac

功率損耗

0% load: < 5.7W @ 115Vac, < 4.8W @ 230Vac
100% load: < 26.6W @ 115Vac, < 20.8W @ 230Vac

底架 / 外殼 Aluminium
指示燈 Green LED (DC OK)
冷卻方式 Convection
輸入端 3 Pins (Rated 300V/15A)
輸出端 4 Pins (Rated 300V/15A)
信號端 -
聲壓級（SPL） < 40dBA
輸入/輸出端 -
信號 -
安裝導軌 Standard TS35 DIN Rail in accordance with EN 60715
電線 Input / Output: AWG 16-12
保護結構 -
端子台 -
重量 1.10 kg (2.43 lb)	尺寸 121 x 85 x 124.1 mm 4.76” x 3.35” x 4.89”

運行溫度

-25°C to +80°C (Cold Start at -40°C)

儲存溫度

-40°C to +85°C

功率降額

Vertical: > 50°C de-rate power by 2.5% / °C
Horizontal: > 40°C de-rate power by 2.5% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

振動測試（非運行狀態）

IEC60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

運行高度

0 to 2,500 Meters (8,200 ft)

污染程度

碰撞試驗（運行狀態）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

過壓類別

III
According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part)

過壓保護

< 32V, ±10%, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超負載/過電保護

> 150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

過溫保護

< 80°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防護等級

IP20

電擊防護等級

Class I with Primary Earth connection

MTBF

> 500,000 hrs. as per Telcordia SR-332 (I/P: 115Vac, O/P: 100% load, Ta: 25°C)

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB Scheme: IEC 60950-1, IEC 62368-1
UKCA: BS EN 62368-1
BIS: IS 13152-1
BSMI: CNS 14336-1
CCC: GB9254, GB17625.1 and GB4943.1 (仅适用于海拔 2000m 以下地区安全使用)
KC: K60950-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
For DRP024V240W1BA: In conformance with Equipment for explosive atmospheres (ATEX) directive 2014/34/EU

電隔離

Input to Output 4.0 KVac
Input to Ground 1.5 KVac
Output to Ground 1.5 KVac

工業控制設備

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA: CSA C22.2 No. 107.1-01 (File No. 181564)

危險場所/ATEX

(For DRP024V240W1BA)
cCSAus: CSA C22.2 No. 213-M1987, ANSI / ISA 12.12.01:2011 [Class I, Division 2, Group A, B, C, D T4, Ta= -25°C to +80°C (Vertical: > +50°C derating, Horizontal: > +40°C derating)]

ATEX: EN 60079-0:2009, EN 60079-15:2010 [II 3G Ex nA nC IIC T4 Gc, Ta= -25°C to +80°C (Vertical: > +50°C derating, Horizontal: > +40°C derating)]
Certificate No. EPS 12 ATEX 1 491 X

機器電氣設備

EN 60204-1 (over voltage category III)

用於電率安裝的電氣設備

IEC/EN/BS EN 62477-1 / IEC 62103

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

(CE & RE)
Generic Standards: CISPR 32, EN/BS EN 55032, KN 32, CNS 13438, CISPR 11, EN/BS EN 55011, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024, KN 35, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

通用用途之部件供電

EN/BS EN 61204-3
