Delta DRS-24V30W1AZ 24V 30W 1.25A 導軌型電源 SYNC Series

資源下載

Datasheet

Uploaded on 28-Feb-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 05-Jun-2024

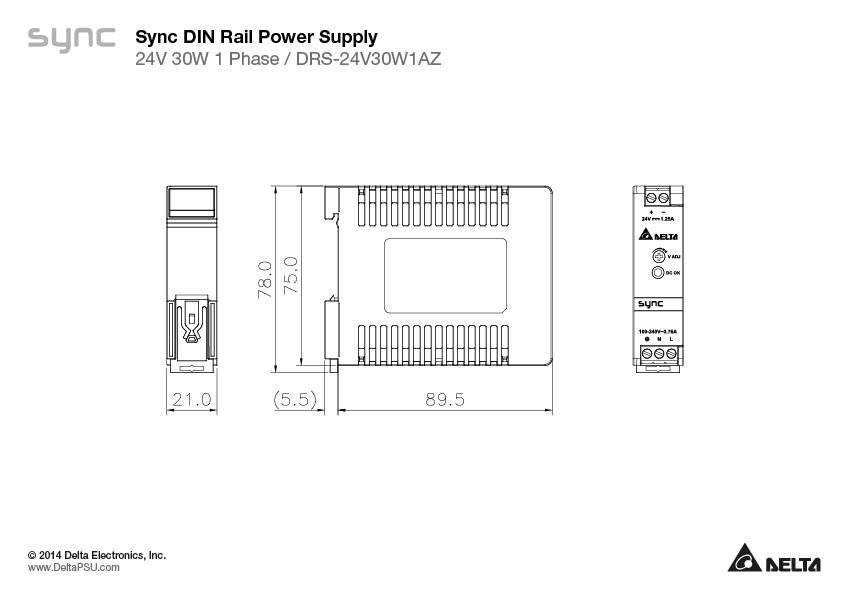

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 17-Aug-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2021

GUI Software

Tech Specs

輸出電流

1.25A

輸出電壓

24V

輸出電壓調整範圍

21.6-26.4Vdc

輸出功率

30W

線電壓調整率

< 1% typ. (@ 85-264Vac, 100% load)

負載調整率

< 1% typ. (@ 85-264Vac, 0-100% load)

紋波電壓

< 150mVpp @ > 0°C to 70°C
< 500mVpp @ 0°C to -20°C

開機時間

< 3,000ms @ 115Vac
< 1,600ms @ 230Vac (100% load)

保持時間

> 20ms @ 230Vac (100% load)

動態回應

± 5% @ 85-264Vac input, 0-50% load, 50-100% (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz)

電容性負載啟動

3,000μF Max

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

< 0.80A@115Vac, < 0.40A @ 230Vac

100% 負載效率

88.0% typ.@ 230Vac

浪湧電流

(Cold Start)
< 30A @ 115Vac ,< 60A @ 230Vac

漏電流

< 0.5mA @ 240Vac

功率損耗

No load: < 0.5W @ 115Vac & 230Vac
100% load: < 2.5W @ 115Vac & 230Vac

底架 / 外殼 Plastic
指示燈 Green LED: DC OK
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.10 kg (0.22 lb)	尺寸 75 x 21 x 89.5 mm 2.95” x 0.83” x 3.52”

振動測試（運行狀態）

IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for X direction

衝擊測試（運行狀態）

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 1 shock for X direction

運行溫度

-20°C to +70°C

儲存溫度

-40°C to +85°C

功率降額

Temperature: -10°C to -20°C de-rate power by 5% / °C
> 55°C de-rate power by 3.33% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction

振動測試（非運行狀態）

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

過壓類別

過壓保護

< 34.8V, SELV Output, Auto-Recovery

超負載/過電保護

110-150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery when the fault is removed)

過溫保護

Auto-Recovery

短路保護

Auto-Recovery when the fault is removed

防護等級

IP20

電擊防護等級

Class I with PE connection

MTBF

Telcordia SR-332: > 700,000 hrs.
I/P: 100Vac, O/P: 100% load, Ta: 25°C

預計最長使用壽命

10 years (230Vac, 50% load @ 40°C)

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1, CSA C22.2 No. 60950-1 (File No. E131881)
UL 62368-1, CSA C22.2 No. 62368-1 (File No. E131881)
CB Scheme: IEC 60950-1, IEC 62368-1 Limited Power Source (LPS)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

工業控制設備

UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

安全特低電壓

SELV (EN 60950)

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091
The Electromagnetic Compatibility Regulations 2016

輻射與傳導

(CE & RE)
Generic Standards: EN 61000-6-3, EN 61000-6-4 CISPR 32, EN 55032, FCC Title 47: Class B

抗擾度

Generic Standards: EN 55024

電壓波動和閃變

IEC/EN 61000-3-3
